SS False Bottom Lauter Tun Screen Panel
0 likes
China [CN] SS lauter tun screen panel also called false bottom for brewery industry.
The wedge wire screen panel have smooth surface and small slot sizes, which can ensure the accurate efficiency. Additional, the stainless steel material is corrosion, rust, chemical resistance, which can make wedge wire screen panels durable and long lifespan.

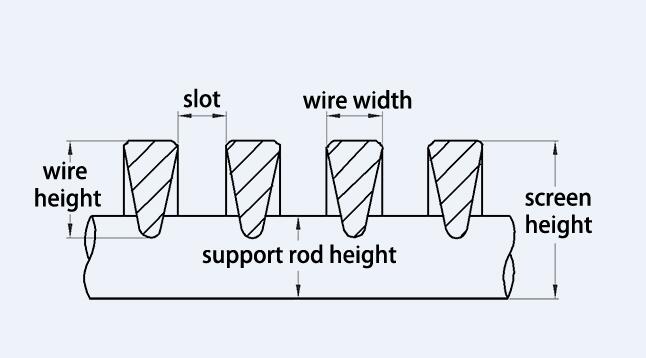

Wedge wire screen panels, also called wedge wire flat screens, wedge wire panels, are manufactured with stainless steel surface profiles and support profiles. The surface profile are welded onto support profiles at each intersection in a 90 degree.
SS false bottom lauter tun screen panel is composed of surface profile and support profile.
The surface profile is commonly triangle wire, and the support profile can be triangle wire, wedge wire, round bar and rectangular bar. They can suit different machines and can be used in various applications.
Types of wedge wire false bottom lauter tun screen panel

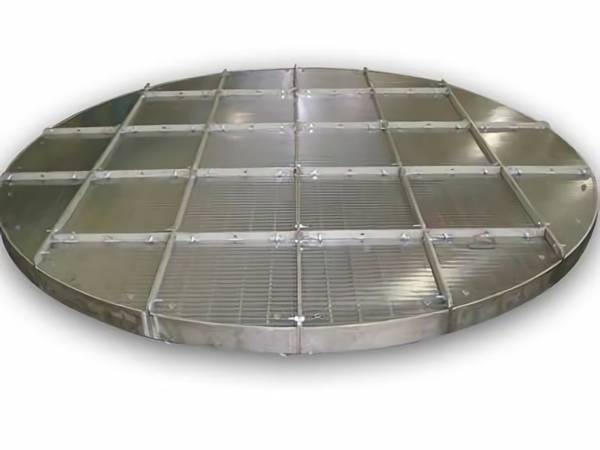

Wedge wire false bottom lauter tun screen panel has various types, it can be whole type, and it can also be divided into several parts. The whole type is mainly in small diameter. The large diameter support grid will be divided into several parts for convenient transportation and installation.

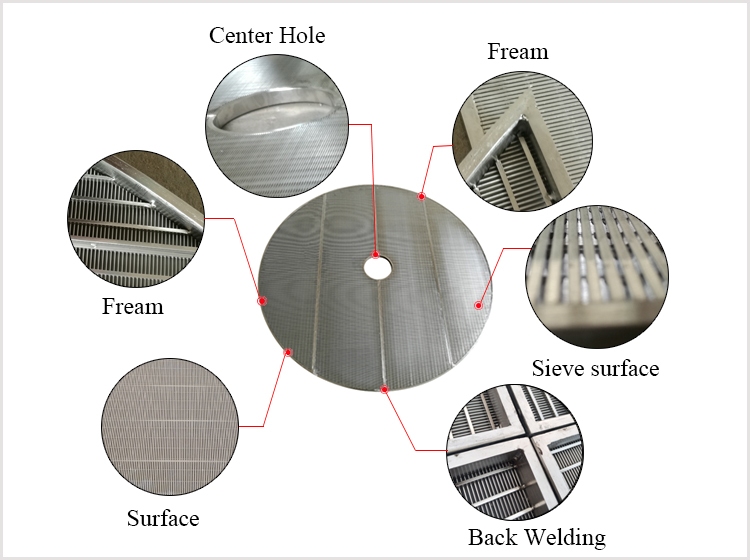

1.Whole type wedge wire SS false bottom lauter tun screen panel

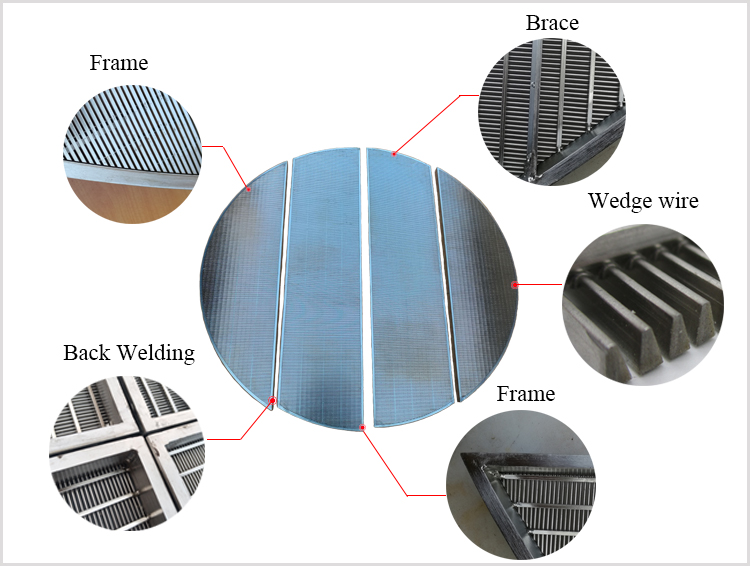

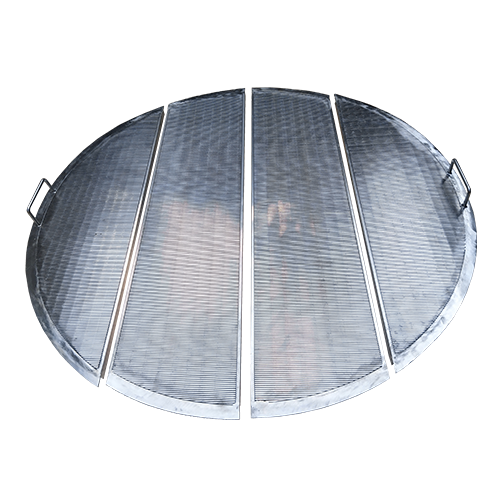

2.Joint type wedge wire false bottom lauter tun screen panel
The joint type wedge wire false bottom lauter tun screen panel can be divided into different parts and in different shapes. Here are some typical type of wedge wire false bottom lauter tun screen panel . Just choose the perfect one suitable for you.
The details of our screen panel:
Normal Name | Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc. |
Diameter Range (MM) | 200mm To 2500mm. Diameter Customized |
Normal Diameter (MM) | 29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc |
Normal Slot (MM) | 0.7mm, 0.75mm, 0.8mm, 1.0mm, customized |
Normal Thickness (MM) | 8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized. |
Sections & shape | 1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized |
Wedge wire (MM) | 2x4MM Wedge Wire, 3x5MM Wedge Wire |
Support Rod (MM) | 3x5MM V shaped Support Rod, 3x5mm Square Support Rod |
Strengthen Rod (MM) | Thickness and Height according to the diameter and screen thickness |
Note | Usually customized. |

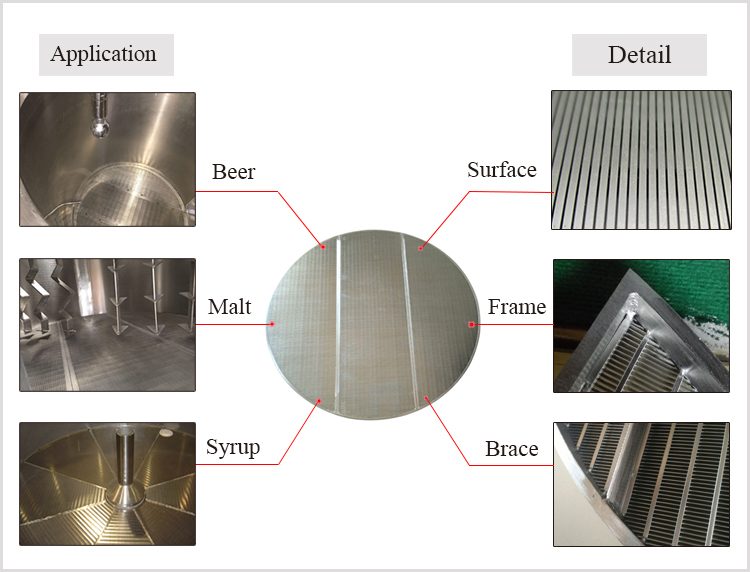

Application:
The Stainless steel false bottom lauter tun screen panel can be used in the carbon filters, desulfurizers, molecular sieves, gas sweeteners and lauter tuns.
