3500lbs rubber torsion axles galvanized
Posting date : Jun 11, 2020
Membership
Free Member Scince Jun 11, 2020
FOB Price
US$100-150
Min. Order Quantity
20
Supply Abillity
500
Port
Qingdap
Payment Terms
T/T
Package
Pallets
Keyword :
Torsion Axle
Category
TRANSPORTATION | Vehicles o | Trailers a | Trailers &
Contact
Helen
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Haway
HS-CODE
8716-39
Package & Delivery Lead Time
Package
Pallets
Delivery Lead Time
30 days
Detailed Description


Capacity   Outer Tube Size (mm) Brake  Bearing  P.C.D Length
750 KG 60x60 Mechanical Brake  L44649 5x114.3 Custom Length
1000 KG 70x70 Mechanical Brake  L68149/11-L44649/10 5x114.3 Custom Length
1200 KG 70x70 Mechanical Brake  L68149/11-L44649/10 5x114.3 Custom Length
1500 KG 80x80 Mechanical Brake  L68149/11-L44649/10 5x114.3 or 6x139.7 Custom Length
2000 KG 90x90 Mechanical Brake  L68149/11-L44649/10 5x114.3 or 6x139.7 Custom Length

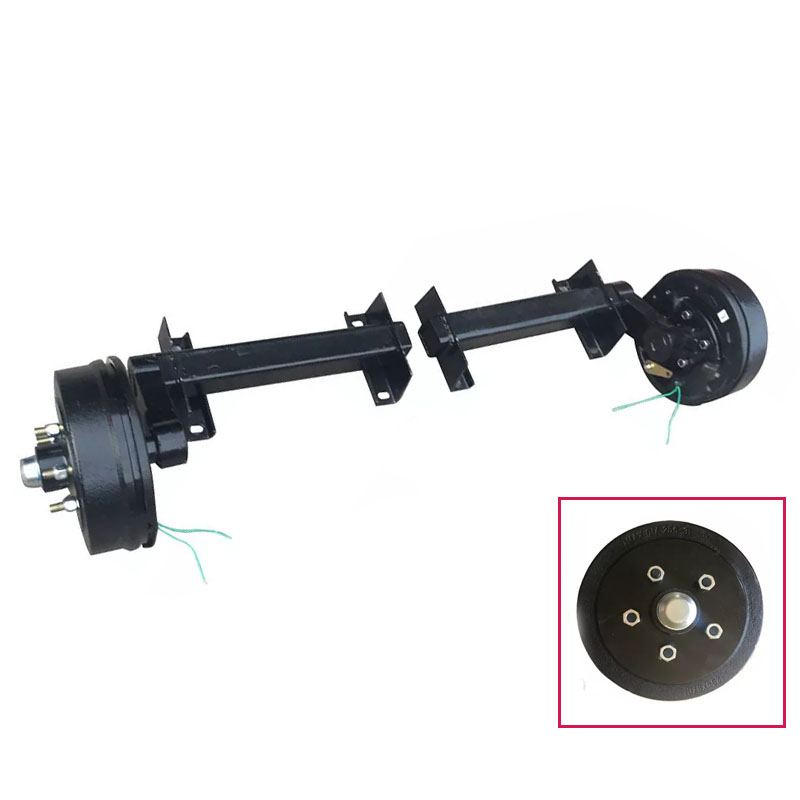

torsion axles
The rubber torsion axle system is designed to be flexibility and can be bolted to a bracket that is fixed on to the chassis. Rubber torsion axle can be u-bolted onto trailer chassis rails, which provides optimum tow-ball weight under situations where the load centre is varied.Torsion trailer axle system is extensively used in a range of trailers such as boat trailer, RV trailer, camper trailer, car trailer and so on.
Features of 3500lbs rubber torsion axles galvanized
1. torsion axle system is designed to be flexibility and can be bolted to a bracket that is fixed on to the chassis. They can be u-bolted onto boat trailer chassis rails to allow, which provides optimum tow-ball weight under situations where the load centre is varied.
2.Torsion axle beam can be power coating or hot dip galvanized surface finish to prevent corrosion.
3.The spindles have high bending strength as they were made by alloy steel material and treat with fire treatment after solid forging.
4.Bearings used on our axle are imported or Chinese famous brand, which is wearable and serve long time.
5.Ductile cast iron wheel hub and the gray cast iron are all produced according the international standard. they has the ability of high loading ,wearable ,heat-resistant, and hardly deformed.6. Mechanical disc brake in included.
