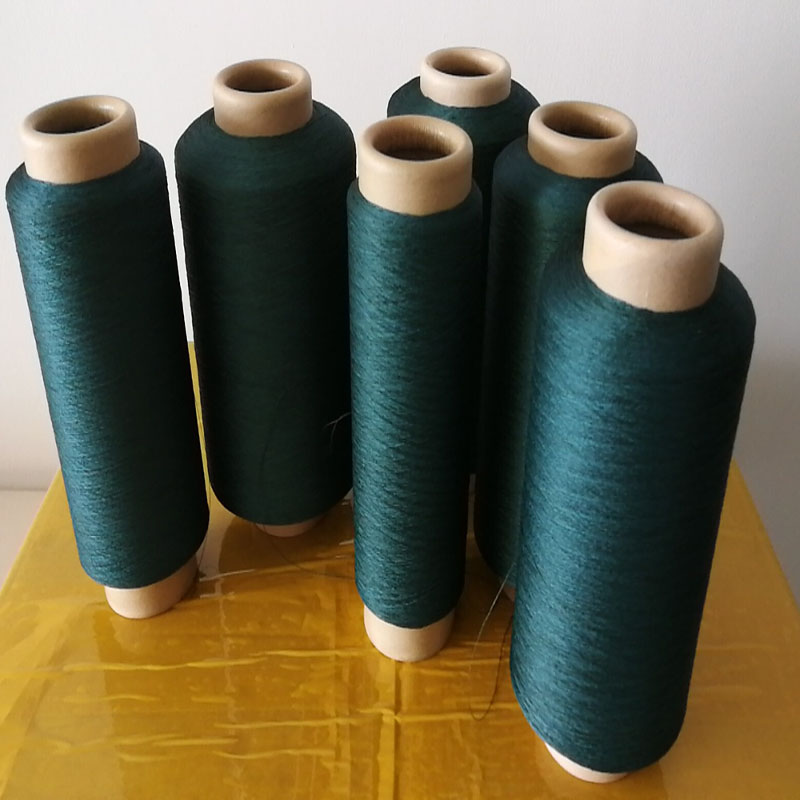

Copper plated CuS acrylic conductive filaments 150D/60F or 150D/80F yarn for anti bacteria socks/beddings-XT11322
0 likes
China [CN] copper plated CuS acrylic conductive filaments 150D/60F or 150D/80F for anti bacteria socks/beddings
a) thickness 150D/60F or 150D/80F
b) other spec.:
| 70~1000ohm/cm | 75D/40F | 150D/80F or 150D/60F | 300D/160F | etc. |
| 1000~2000 ohm/cm | 75D/40F | 150D/80F or 150D/60F | 300D/160F | etc. |
Based materials: acrylic DTYConductivity: (10^1~10^2) ohm/cm.Elongation at break: (15-25)%.Tenacity at break: (1.94~3.39)g/Deniercuprous sulfide: less than 8% approx.
Characteristics and application--------------------------------------------------------------------------------------------------------------
a) ESD(anti static)As the conductivity of it is (10^1~10^2) ohm/cm,so, it has good anti static properties when it is combined/blended withother filament/staple fibers.At the same time, it has good washability resistant and soft hand feeling.And it has good textile properties for processing easily.
b) Anti-EMR(anti electromagnetic wave radiation)As the conductivity of it is (10^1~10^2)ohm/cm, so, it also has excellentshielding effectiveness. The shielding efficiency is more than 35DB at 0.15MHz~3GHz.
c) Anti-bacteriaThe active copper ion in fiber could damage the metastasis of thebacteria, make them die out. Has the stable and persistent antibacteria ability.
d) Gathering heat and heat preservationIn the sunlight, the copper ion in fiber generates surgephenomenon, therefore, bring about heat and temperature of fiber tobe raised. Therefore, it has the high efficiency of heat gatheringand preservation.
e) ApplicationMainly used for home textiles, garments(anti bacteria socks, underwear, etc.)and intelligent textiles, military and industrial textiles, etc. .-------------------------
32 bobbins/carton, net weight 16kg/carton, dimension: 56cm*56cm*38cm
By DHL/TNT/UPS/FedEx, by general air transportation, by sea
Surface resistance could be customzied, from 70~2000ohm/cm.
a) Could shield electromagnetic wave radiation?
Of course, because it possesses low resistance, could achieve to more than shielding efficiency: 35dB.
