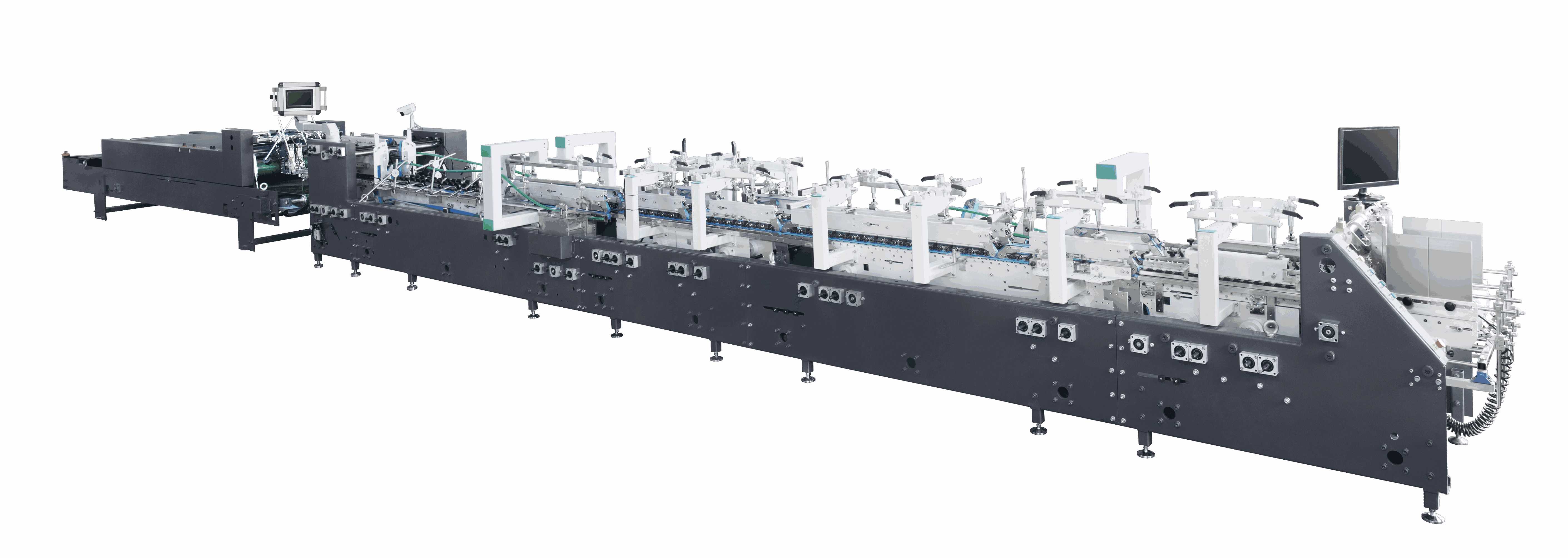

ZH-1100S Series Automatic High-speed One side box Gluing Folding Machine

Product

ZH-1100S Series Automatic High-speed One side box Gluing Folding Machi...

Posting date : Jul 22, 2019

Click enlarge Image

Membership

Free Member Scince Jul 20, 2018

FOB Price

Min. Order Quantity

Supply Abillity

Port

Payment Terms

Package

Keyword :

High-speed

Category

MACHINERY & ELECTRICAL | Nuclear re | Central he | Parts of t

Contact

lin lin

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

sanlin

HS-CODE

8403-90

Package & Delivery Lead Time

Package

Detailed Description

Characteristics:

1.Driving by synchronous belt,ensure smooth and accurate running.

2.Inverter driving,stable and power saving.

3.Use electric adjust,easy operate.

4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled suction belt),to keep the feeding stable.

5.Automatic counting and kicking,quantity can preset.

6.Conveyer pressure adjustable according to the box to ensure best quality.

2. Main technical parameter:

Model	ZH-A1100PC
Suitable material	Card board,E flute corrugated board
Max method	Automatic continuous feeding
Max mechanical speed	450m/min
Overall dimension	1550017001800mm
Weight	8T
Power consumption	19KW

3.Standard & Optional configuration list

	Configuration	Units	Standard	Optional
1	Feeder section		√
2	Paper Alignment Section		√
3	Pre-fold Section		√
4	Crash lock bottom section		√
5	Upper paste barrel equipment		√
6	Down pasting equipment		√
7	Gluing system			√
8	Grinder device			√
9	Plasma treatment system			√
10	Folding and closing section		√
11	Trombone section		√
12	Air compressor		√
13	4-6 corner			√

4.Machine configuration

Main motor	Siemens
PLC	Siemens
Inverter	VEICHI
Touch screen	VEICHI
Feeder belt	NITTA JAPAN
Ribbed belt	Hutchinson
Bearing	NSK JAPAN
Plain belt	NITTA Japan
Low voltage apparatus	Schneider
Delta servo system	For 4&6 corner box Form Taiwan
Glue spray	For 4&6 corner box KEQI Brand gluing system

5.Box size

		Straight line box	double sides box	crash-lock bottom box	4-corner box	6-corner box
A	MAX	1100	1100	1000	960	950
A	MIN	180	200	180	180	300
B	MAX	1100	900	1100	800	800
B	MIN	70	120	70	80	80
C	MAX	400	200	250	150	150
C	MIN	15	20	30	25	25

6. Feature

1.Feeder section

Equipped with vibrating motor.

With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.

Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.

Feeding knifes are equipped with pneumatic mechanism for smoother feeding.

Configure the display, real-time monitoring of the paper is normal

2.Paper alignment system

Automatic alignment system to correct the paper feeding,avoid the paper going to sides.

UV destroying device and dust removing device for better gluing effect.

3.Bottom lock section

Configure the spray gun system for automatic spray.

Lock-bottom assembly mechanism with high elastic hookers is of ideal design,fast and easy operation

4.Folding section

Equipped with speed variator for belts,ensure the folded boxes parallel and in good order

Fast,convenient adjustment and operation can fold boxes perfectly

The middle up and down transmission module can fold boxes synchronously or alternately

5.Pressure section

Adjust the pressure with the upper and lower belts.For flute A,B corrugated board,overlapping and jogger devices are equipped to ensure box gluing well.

After kicker is set up,whatever speed the machine runs,the kicker can automatically follow,no need to reset it.

Standard Price:

Option:

8.Delivery time: 40 days

9.Payment terms: 1)T/T.30% deposit in advance, and 70% balance

payment before shipment.

10.Our service

One year guarantee time.
If parts (except wearing parts) are broken within guarantee time (it is not caused by human factor), they will be changed for free.

The client should pay for the cost following:

Visa fee
Air ticket
Diet
Accommodation
Labor fee:100 USD/day (within guarantee time)

150 USD/day (without guarantee time)

NOTE:ALL OF THE COST SHOULD SEND TO US BEFORE SENDING OUT ENGINEER/PARTS.

Ps:these offers are valid in 1 month.

Show in Drupa Germany
