FC APC 12 Color Pigtail
Posting date : Mar 20, 2019
Membership
Free Member Scince Jan 24, 2019
Min. Order Quantity
1
Supply Abillity
10000
Port
shenzhen
Keyword :
Category
Contact
Jack Xiao
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
optic fibre cable
HS-CODE
9001-10
Package & Delivery Lead Time
Detailed Description

FC APC 12 Color Pigtail

Fiber Optic Pigtail is a fiber connector to connect fiber and adaptor like a half of fiber optic jumper cable ,with one fiber connector assembled.It includes one connector and a fiber cable.Also, it is used in connecting transmission equipments and ODF.

Fiber pigtail is only one end active,while two ends of patch cord are active.There are many kinds of connectors which needs corresponding adaptor.The patch cord can be divided into two parts and used as pigtail.

Connector Type FC
Polish Type APC
Fiber Mode Single mode
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Jacket Material PVC/LSZH

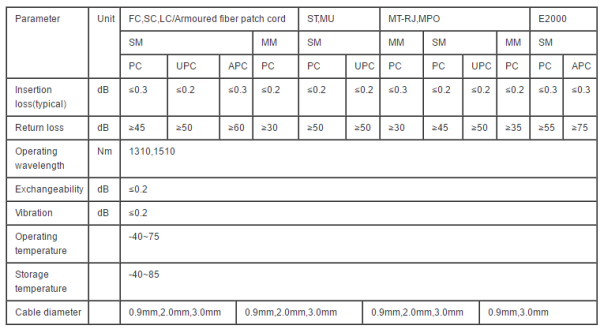

Specification

 FC APC 12 Color Pigtail747

Features

Accurate Mechanical Dimensions

Low Insertion Loss,high return loss

Excellent compatibility

Excellent repeatability

Excellent Temperature stability

No Polishing, no Epoxy

More Convenient to install

Application

Local Area Network

Optical fiber communication system

Optical access network(OAN)

Optical CATV

Optical fiber sensor

Fiber optics data transmission(FODT)

Active device termination

Equipment test

Order information

 FC APC 12 Color Pigtail1294
