LC UPC 12 Color OM4 Pigtail

본문 바로가기


Home > Product > LC UPC 12 Color OM4 Pigtail
Product
LC UPC 12 Color OM4 Pigtail
Posting date : Mar 20, 2019
Membership
Free Member Scince Jan 24, 2019
Min. Order Quantity
1
Supply Abillity
10000
Port
shenzhen
Keyword :
Category
Contact
Jack Xiao
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
optic fibre cable
HS-CODE
9001-10
Package & Delivery Lead Time
Detailed Description

LC UPC 12 Color MM OM4 Pigtail

The fiber optic pigtail is normally a tight buffered fiber cable with a connector pre terminated on one end and exposed fiber on the other. The end is stripped and fusion spliced to a single or multi-fiber trunk. The fiber optic pigtail can have either male or female connectors. Female connectors can be mounted in a patch panel, while male connectors can be plugged into optical transceivers

Connector Type LC
Polish Type UPC
Fiber Mode Multi mode OM4
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Jacket Material PVC/LSZH

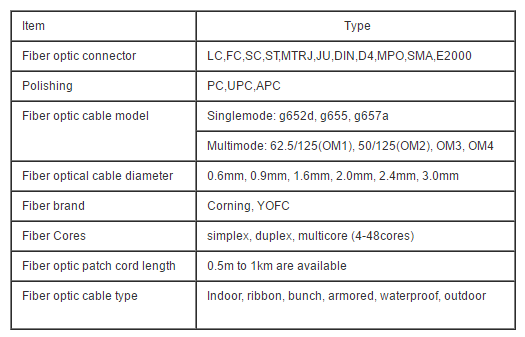

Specification

 LC UPC 12 Color OM4 Pigtail685

Features

Accurate Mechanical Dimensions

Low Insertion Loss,high return loss

Excellent compatibility

Excellent repeatability

Excellent Temperature stability

No Polishing, no Epoxy

More Convenient to install

Application

Local Area Network

Optical fiber communication system

Optical access network(OAN)

Optical CATV

Optical fiber sensor

Fiber optics data transmission(FODT)

Active device termination

Equipment test

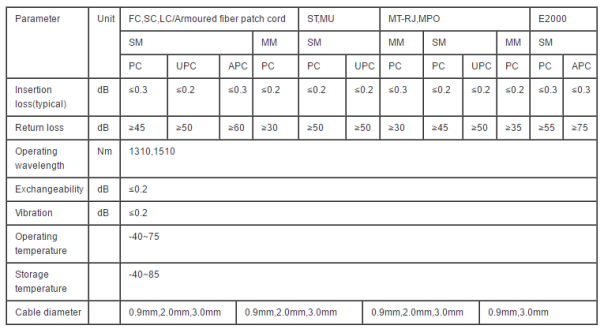

Order information

 LC UPC 12 Color OM4 Pigtail1232
