LC UPC 12 Color SM Pigtail
Posting date : Mar 20, 2019
Membership
Free Member Scince Jan 24, 2019
Min. Order Quantity
1
Supply Abillity
10000
Port
shenzhen
Keyword :
Category
Contact
Jack Xiao
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
optic fibre cable
HS-CODE
9001-10
Package & Delivery Lead Time
Detailed Description

LC UPC 12 Color SM Pigtail

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Connector Type LC
Polish Type UPC
Fiber Mode Single mode
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Jacket Material PVC/LSZH

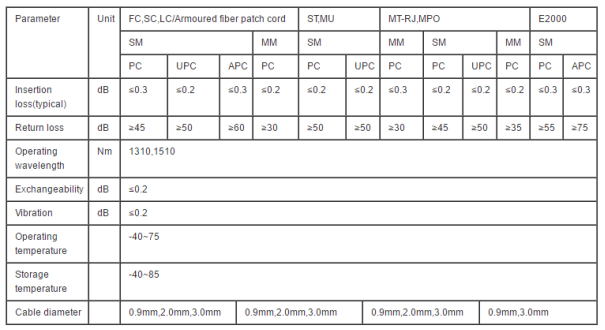

Specification

LC UPC 12 Color SM Pigtail566

Features

Simplex or Duplex version on request;

UPC or APC polish available;

Any other connector type at another side upon request;

Fan-out on request;

Superior quality standard PC/UPC/APC polishing;

100% factory test (Insertion Loss & Return Loss);

0.9mm, 2.0mm and 3.0mm cable optional.

Application

Local Area Networks (LANs) and Wide Area Networks (WANs)

Fiber Optic CATV, FTTH, FTTB, FTTP etc

Fiber Optic telecommunication systems

Transmission Mode (ATM)

Fiber Optic Backbone

Military Instrumentatio

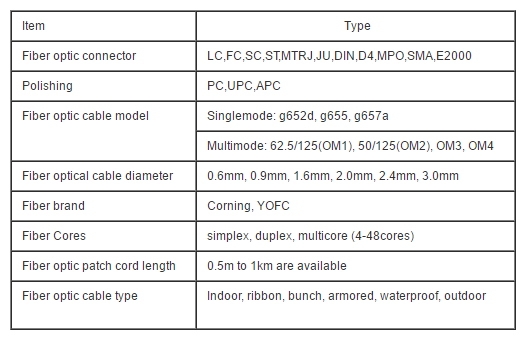

Order information

 LC UPC 12 Color SM Pigtail1205
