SC APC 12 Color Pigtail
0 likes
China [CN] SC APC 12 Color Pigtail
Fiber optic pigtail is a piece of cable terminated with fiber optic connectors at only one side of the cable while leave the other side no connectors, so that the connector side can link to the equipment and the other side can be melted with optical cable fibers. Fiber optic pigtails are usually used with fiber optic management equipment like ODF, splice closures and cross cabinets. Commonly used fiber optic pigtail types are SC, FC, LC, ST, MU, E2000 and MTRJ. They are single mode types and multimode types.
| Connector Type | SC |
| Polish Type | APC |
| Fiber Mode | Single mode |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Jacket Material | PVC/LSZH |
Specification
Feature
Superior qualified standard PC, APC, UPC, SPC polishing;100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);φ0.9mm, φ2.0mm, φ3.0mm cable optional;Single mode (9/125) or multi mode (50/125 or 62.5/125) fiber available;FC, SC, LC, MU, ST, MT-RJ, etc connector optionsSimplex and duplex connector available; 8) Good exchange ability and good durability;Available in fiber bunch, ribbon fan-out, pigtail available;Meets ISO9001, ROHS and Bell core GR 326-core standards;Customized specifications are welcomed.
Application
CATV, metro test equipment;Telecommunication networks;Local area networks (LAN);Wide area networks (WAN);Premise installations;Data processing networks;Video and military active device termination.

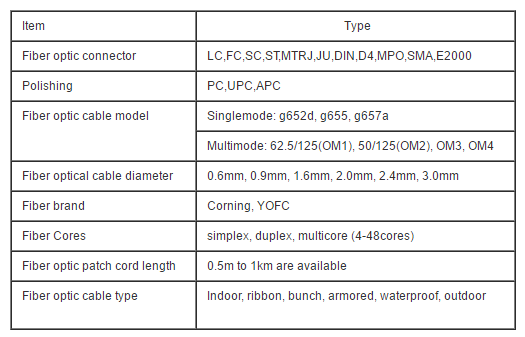

Order information
Click enlarge Image
