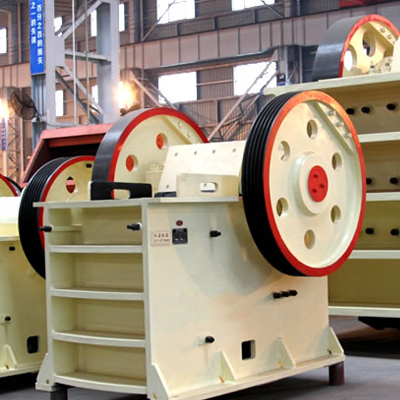

Jaw Crusher

Posting date : Jun 05, 2019

Click enlarge Image

Membership

Free Member Scince Mar 07, 2019

FOB Price

Min. Order Quantity

Supply Abillity

Port

Payment Terms

Package

Keyword :

pe series jaw crushe

The Main Types and Description of Jaw Crusher:

The Jaw primary crusher is used as Primary and Secondary crushers for crushing all kinds of minerals and rocks with compressive strength less than 320 mpa. There are two types of Jaw crusher: coarse jaw crusher and fine jaw crusher. We also manufactures Mobile jaw crusher, Single toggle jaw crusher, and other Jaw breakers.

The Performance Characteristics of Jaw Crusher:

1. Crushing cavity is deep and there is no dead area, which improves the feeding capacity and output.2. High reduction ratio and uniform final product size.3. The adjustment device of discharge-hole is reliable and convenient.4. Reliable and safe lubrication system, convenient replacement of parts and small workload of maintenance.5. Simple structure, operational reliability, and low operation cost.

Technical Parameter of Jaw Crusher:

Model	Feed opening(mm）	Max.feeding size(mm)	Adjusting range of discharge opening(mm)	Processing capacity(t/h)	Rotation speed of eccentric shaft(r/min)	Motor power(kw)	Total weight(t)	Dimensions（L×W×H）(mm)
PE-150×250	150×250	125	10-40	1-3	250	4P 5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	4P 7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	4P 11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-20	300	6P 15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	6P 30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	6P 55	12	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	6P 55	15.8	2070×2000×1920
PE-600×900	600×900	500	65-160	50-160	250	6P 55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	8P 110	29	2660×2430×2800
PE-800×1060	800×1060	640	130-190	130-330	250	8P 110	29.8	2710×2430×2800
PE-830×1060	830×1060	650	160-220	150-336	250	8P 110	30.7	2740×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	8P 110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	8P 110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-450	200	8P 110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	8P 110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-350	400-800	180	6P 160-220	100.9	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	8P 280-355	139	5160×3660×4248
PE-1600×2100	1600×2100	1500	300-400	1300-2200	160	8P 350-380	150.6	6210×4013×4716
PEX-150×750	150×750	120	18-48	8-25	320	4P 15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	6P 22	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	6P 30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	6P 37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	6P 55	15.6	2720×1950×1600

Category	UNIT	Jaw Crushers			Fine Type Crushers
Category	UNIT	150x250	250x400	400x600	150x750	250x750
Iniet size	mm	150x250	250x400	400x600	150x750	250x750
Outlet width	mm	15-45	20-100	30-100	18-60	25-100
Rorary speed of crusher eccentric shaft	r/min	340	320	267	320	303
Electric motor,s model		Y132S-4	Y160L-4	Y225M-6	Y180L-6	Y225M-6
Electric motor,s power	kw	5.5	15	30	15	30
Electric motor,s speed	r/min	1440	1460	980
Contour dimension of crusher	LxBxH	800x745x820	1230x1051x1091	1560x1660x1535	1220x1442x928	1450x1636x1288
Weight	kg	850	2300	5800	3000	4800
Productivity	m3/h	1.5-4.5	5-20	10-34	5-15	10-30

Jaw crusher, in short, we call it as JC. It is an early breakup equipment, because it has simple structure. It is strong, reliable, easy to maintain and repair. Besides, it costs less money of production and construction. Therefore, until now, it is still widely used in metallurgical, chemical, building materials, power, transportation and other industrial sectors. It is mainly used for crushing all kinds of ores or coarse, medium and fine stones with compression strength of 147- 245 MPa. In order to meet the needs of crushing high strength and high hardness in metallurgical, mining, construction and other industries, GUIKUANG machinery has been investing a lot of manpower, material and financial resources to develop a new type jaw crusher with high efficiency and energy saving. Therefore, more and more new jaw crusher will be introduced. It is welcome to continue to pay attention to our factory.The jaw crusher is mainly used for medium size crushing of the various ore and large pieces of materials. It is widely used in mines, smelting, building materials, highway, railway, water conservancy and chemical industries.

The Operational Principles of Jaw Crusher

The operate mode of jaw crusher is curved extrusion type. The operational principle is that the motor drives the belt and the pulley to move the jaw up and down through the eccentric shaft. When the moving jaw rises, the angle between the elbow plate and the moving jaw increases, thus it will push the moving jaw plate be close to the fixed jaw plate. At the same time, the material is crushed or chopped, so the purpose is achieved; when the moving jaw descends, the angle between the elbow plate and the moving jaw decreases. Under the action of the pull rod and the spring, the moving jaw plate leaves the fixed jaw plate. At the same time, the broken material has been discharged from the lower mouth of the crushing chamber. With the continuous rotation of the motor, the moving jaw is crushing and discharging the materials for periodic movement to achieve mass production.

The Performance and Characteristics of Jaw Crusher

1. Advanced manufacturing techniqueGUIKUANG jaw crusher is made of advanced materials with advanced manufacturing technique; it adopts finite element analysis technology. The equipment has higher working strength and helps to improve the production efficiency.

2. The bearing is durableThe bearing seat of the jaw crusher adopts the integral cast steel structure, which can guarantee the complete match with the broken frame, and greatly enhance the radial strength of the bearing seat. Compared with the crusher which has the same specifications, it has larger and more durable bearing. According to its higher bearing capacity and the effective sealed bearing, it will prolong the usage time greatly.

3. The quality of the moving jaw is reliableThe GUIKUANG jaw crusher has more advanced moving jaw assembly, which makes it more durable. The moving jaw assembly is made of high quality steel castings, and is driven by two large cast steel flywheels. In addition, the heavy eccentricity shaft also adopt the way of processing semi-finished product. All of these make the jaw crusher equipped with extraordinary reliability.

4. Convenient adjustment of dischargingThe crushing chamber of the jaw crusher adopts the symmetrical "V" shape structure, which makes the width of the actual feeding port consistent with that of the nominal intake port. So it is more quick and convenient to the adjust the discharging gate. The jaw crusher is also equipped with a wedge discharging gate adjustment device, which is simpler, safer and faster than the old gasket adjustment type.

The Price of Jaw Crusher

When customers buy jaw crushers, they need to paying attention to the performance and quality of the jaw crusher itself. Besides, the price of the jaw crusher is undoubtedly the customer's concern. Especially for the jaw crusher, which is produced by many different factories. So people need to be careful to buy it. As we know, the price of a jaw crusher is not cheap.The price of jaw crusher is influenced by many factors, such as factory, specification, quality, area, market demand and so on. Different jaw crusher manufacturers will produce products with different performance and quality. Therefore, when customers buy jaw crusher, they must purchase in the true manufacturers.

Jaw Crusher for Sale from GUIKUANG - an expert manufacturer in crushing and mining equipment!
