Single Phase Digital Ammeter With RS485 Communication Programmable Function

본문 바로가기


Home > Product > Single Phase Digital Ammeter With RS485 Communication Programmable Function
Product
Single Phase Digital Ammeter With RS485 Communication Programmable Fun...
Posting date : Mar 07, 2019
Membership
Free Member Scince Mar 07, 2019
FOB Price
15usd/unit FOBNingbo
Min. Order Quantity
1unit
Supply Abillity
1000 units/month
Port
Ningbo/Shanghai
Payment Terms
T/T or Western Union
Package
96*96mm meter, 36pcs one carton, Package size:45*36*33.5cm
Keyword :
Category
Contact
ellen yuan
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
OUHAN
Model Number
OH194I-9K1
HS-CODE
9030-39
Package & Delivery Lead Time
Package
96*96mm meter, 36pcs one carton, Package size:45*36*33.5cm
Delivery Lead Time
As per order
Specifications

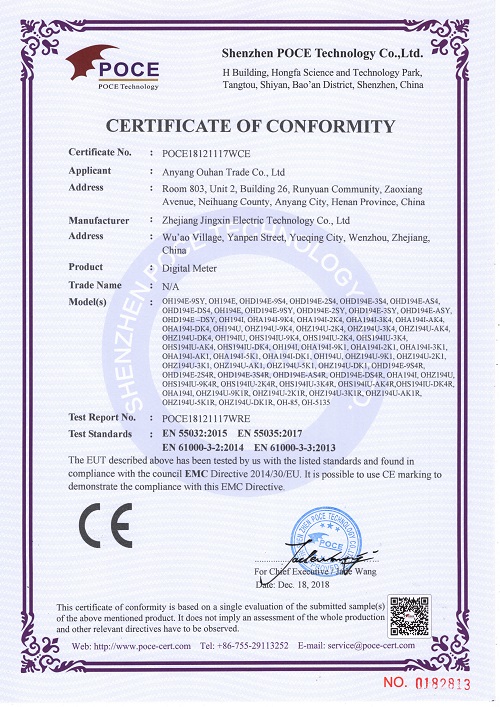

Type of Certification
CE
Reference no.
POCE18121117WCE
Name.
CERTIFICATE OF CONFORMITY
Issued By
Shenzhen POCE Technology Co.,ltd
Start Date (validity period)
2018-12-18
End Date (validity period)
0000-00-00

Detailed Description
1.AC voltage measurement range:Direct input: AC600V, 199.9V, 99.99V, 9.999V, 9.999MVUse voltage transformer input: can be customized according to user requirements
2.AC current measurement range:Direct input: 5A(2.000A, 200.0mA, can be customized according to requirements)Use current transformer input: (X:5A)10A, 15A, 20A, 50A, 100A, 150A, 200A, 500A, 1000A, 1500A, 2000A, 2500A
3.DC voltage measurement range:Direct input: DC600V, 199.9V, 99.99V, 9.999V, 9.999MV(can be customized according to user requirements)
4.DC current measurement range:Use the shunt input(X:75mV );10A, 15A, 20A, 50A, 100A, 150A, 200A, 500A, 1000A, 1500A, 2000A, 2500ADirect input: can be customized according to user requirements
Performance Parameter
InputMeasurementDisplay Network Single-phase AC/DC voltage and current measurement
Voltage Measuring range AC/DC 0~500V  multifunction power meter with RS485
Overload Continuous:1.2 times   Instantaneous:2 times/1S
Power consumption <0.2VA(Each phase)
Impedance >5MΩ  CE approved panel mount programmable switchboard LCD digital power meter
Accuracy 0.5
Current Measuring range AC/DC 0~5A direct input,with current transformer/shunt
Overload Continuous: 1.2 times, Instantaneous:10 times/5S
Power consumption <0.4VA(Each phase)
Impedance <2mΩ
Accuracy 0.5 LED three phase digital voltmeter ammeter combination
Frequency 40~60Hz  accuracy:0.1Hz
Display Programmable switching(LED) display
Power supply Work range AC220V or A/DC 80V~260V
Power consumption ≤2VA
Output Digital interface Optional RS-485, MODBUS-RTU protocol
Alarm output, transmitting output Optional 2-way alarm output, 1-channel transmitting output
Circumstance Working environment -30~50℃   RH20%~90%(No condensation)
Storage environment -45~75℃  RH20%~90%
Safety Power frequency withstand voltage 2KV/1min AC RMS
Insulation resistance ≥100MΩ Analog display electrical measuring ammeter voltmeter
III. Function module: optional
*Communication interface: Supports 1 channel RS-485 communication, Modbus-RTU protocol                                           Baud rate: 9600bps
*Switching output: Supports 2 way relay outputs, capacity: AC250V/5A, DC30V/5A
*Discrete input, dry node input is not supported*Transmission output, Support 1 way simulation output, 4~20mA/0~20mA or 0~5/0~10V
