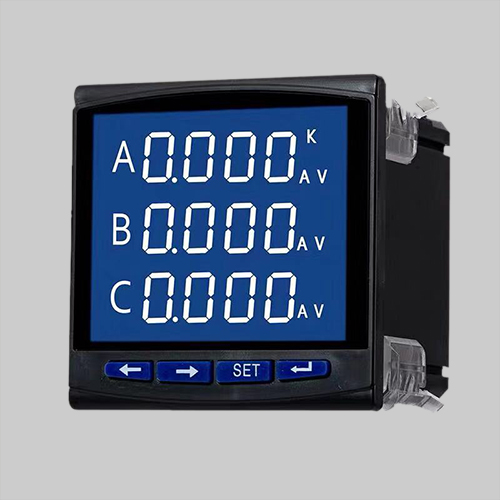

LCD three phase programmable ampere&voltage combination power meter
Posting date : Mar 07, 2019
Membership
Free Member Scince Mar 07, 2019
FOB Price
45usd/unit FOBNingbo
Min. Order Quantity
1unit
Supply Abillity
1000 units/month
Port
Ningbo/Shanghai
Payment Terms
T/T or Western Union
Package
96*96mm meter, 36pcs one carton, Package size:45*36*33.5cm
Keyword :
Category
Contact
ellen yuan
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
OUHAN
Model Number
OHS194IU-9K4RYB
HS-CODE
9030-39
Package & Delivery Lead Time
Package
96*96mm meter, 36pcs one carton, Package size:45*36*33.5cm
Delivery Lead Time
As per order
Specifications
Type of Certification
CE
Reference no.
POCE18121117WCE
Name.
CERTIFICATE OF CONFORMITY
Issued By
Shenzhen POCE Technology Co.,ltd
Start Date (validity period)
2018-12-18
End Date (validity period)
0000-00-00

Detailed Description
I.Technical parameters of LCD three phase programmable ampere&voltage combination power meter
  Parameter
Signal input Wiring Three-phase four-wire Y34/three-phase three-wire V33
Voltage Range 400V/100V  LED three phase digital voltmeter ammeter combination
Overload Continuous: 1.2 times Instantaneous: 2 times
Power consumption <1VA
Current Range 5A/1A  three phase digital voltmeter analog output 4-20ma
Overload Continuous: 1.2 times Instantaneous: 2 times
Power consumption <1VA
Frequency 40-65Hz three phase digital ammeter digital input output
Power supply AC220V (default) or AC/DC80-270V
Communication RS485 communication interface, physical layer isolationMODBUS-RTU protocol in line with international standards          Communication speed 1200-9600Calibration method N81, E81, 081. low voltage switchgear use digital panel meter with RS485
Simulation output 0/4-20mA or 0-5/10V transmitting output programmable settings, transmission items and corresponding values
Relay output Programmable remote control / Alarm relay outputCapacity 5A/250VAC 5A/30VDCProgrammable alarm, power, switch input, simulation input or remote control. CE approved panel mount programmable switchboard LCD digital power meter
Telemetry switch Telemetry switch input measurement, passive dry node inputProgrammable switch alarm output. multifunction power meter with RS485
Circumstance Operating temperature:-10~55℃Storage temperature:-20~75℃
Switch Insulation: signal, power supply, output terminal to shell resistance > 5MΩWithstand voltage, signal input, power supply, output >AC2KV
