Digital ammeter low-voltage switchgear use LED digital programmable three phase panel mount power meter

본문 바로가기


Home > Product > Digital ammeter low-voltage switchgear use LED digital programmable three phase panel mount power meter
Product
Digital ammeter low-voltage switchgear use LED digital programmable th...
Posting date : Mar 07, 2019
Membership
Free Member Scince Mar 07, 2019
FOB Price
30usd/unit
Min. Order Quantity
1unit
Supply Abillity
1000 units/month
Port
Ningbo/Shanghai
Payment Terms
T/T or Western Union
Package
96*96mm meter, 36pcs one carton, Package size:45*36*33.5cm
Keyword :
Category
Contact
ellen yuan
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
OUHAN
Model Number
OH194I-3K4B
HS-CODE
9030-39
Package & Delivery Lead Time
Package
96*96mm meter, 36pcs one carton, Package size:45*36*33.5cm
Delivery Lead Time
As per order
Specifications

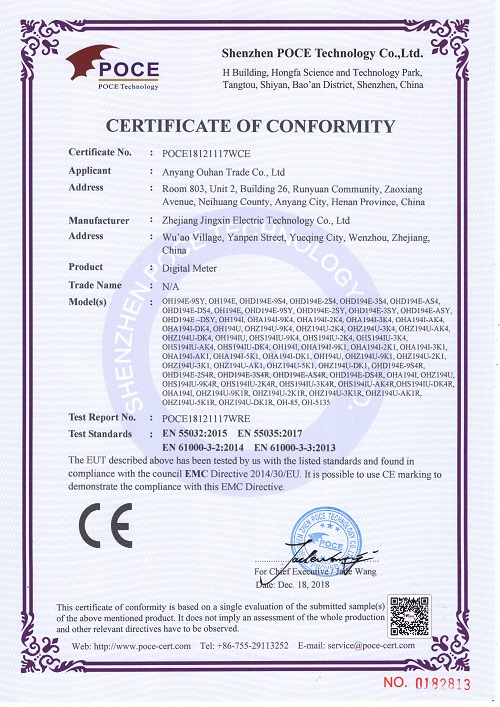

Type of Certification
CE
Reference no.
POCE18121117WCE
Name.
CERTIFICATE OF CONFORMITY
Issued By
Shenzhen POCE Technology Co.,ltd
Start Date (validity period)
2018-12-18
End Date (validity period)
0000-00-00

Detailed Description
I. Technical parameters digital ammeter low-voltage switchgear use LED digital programmable three phase panel mount power meter
  Parameter
Signal input Wiring Three-phase four-wire Y34/three-phase three-wire V33
Voltage Range 400V/100V  multifunction power meter with RS485
Overload Continuous: 1.2 times Instantaneous: 2 times
Power consumption <1VA  CE approved panel mount programmable switchboard LCD digital power meter
Current Range 5A/1A
Overload Continuous: 1.2 times Instantaneous: 2 times
Power consumption <1VA
Frequency 40-65Hz  low voltage switchgear use digital panel meter with RS485
Power supply AC220V (default) or AC/DC80-270V
Communication RS485 communication interface, physical layer isolationMODBUS-RTU protocol in line with international standards          Communication speed 1200-9600Calibration method N81, E81, 081 three phase digital ammeter digital input output
Simulation output 0/4-20mA or 0-5/10V transmitting output programmable settings, transmission items and corresponding values
Relay output Programmable remote control / Alarm relay outputCapacity 5A/250VAC 5A/30VDCProgrammable alarm, power, switch input, simulation input or remote control
Telemetry switch Telemetry switch input measurement, passive dry node inputProgrammable switch alarm output.  three phase digital voltmeter analog output 4-20ma
Circumstance Operating temperature:-10~55℃Storage temperature:-20~75℃
Switch
Insulation: signal, power supply, output terminal to shell resistance > 5MΩWithstand voltage, signal input, power supply, output >AC2KV
