Southeast Asia hot sale 3-P 3-W LED multi-function low voltage switchgear use digital panel meter with RS485

본문 바로가기


Home > Product > Southeast Asia hot sale 3-P 3-W LED multi-function low voltage switchgear use digital panel meter with RS485
Product
Southeast Asia hot sale 3-P 3-W LED multi-function low voltage switchg...
Posting date : Mar 07, 2019
Membership
Free Member Scince Mar 07, 2019
FOB Price
40usd/unit FOBNingbo
Min. Order Quantity
1unit
Supply Abillity
1000 units/month
Port
Ningbo/Shanghai
Payment Terms
T/T or Western Union
Package
96*96mm meter, 36pcs one carton, Package size:45*36*33.5cm
Keyword :
Category
Contact
ellen yuan
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
OUHAN
Model Number
OHD194E-9S4R: 96×96mm
HS-CODE
9030-39
Package & Delivery Lead Time
Package
96*96mm meter, 36pcs one carton, Package size:45*36*33.5cm
Delivery Lead Time
As per order
Specifications
Type of Certification
CE
Reference no.
POCE18121117WCE

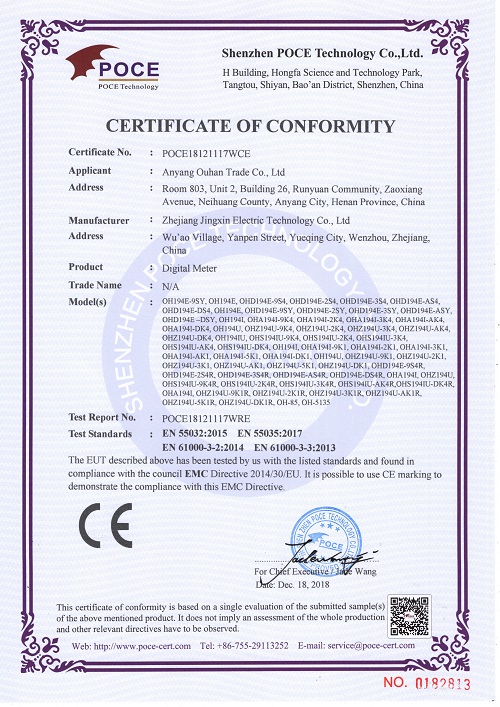

Name.
CERTIFICATE OF CONFORMITY
Issued By
Shenzhen POCE Technology Co.,ltd
Start Date (validity period)
2018-12-18
End Date (validity period)
0000-00-00

Detailed Description
I.Brief introduction for Southeast Asia hot sale precision 0.5 3-P 3-W LED multi-function low voltage switchgear use digital panel meter with RS485
This product Southeast Asia hot sale precision 0.5 3-P 3-W LED multi-function low voltage switchgear use digital panel meter with RS485 adopts the most modern microprocessor and digital signal processing technology, which can measure three-phase voltage, current, power, grid frequency and other common power parameters in the power grid. At the same time, it also has electric energy accumulation, energy pulse, cross-line alarm, switch input and output, simulation transmission output and network communication functions. With a friendly man-machine interface. Analog display electrical measuring ammeter voltmeter
This product has a very high cost performance and can directly replace conventional measuring indicator instruments, energy meters, multi-function network power meters and related auxiliary units. portable diesel generator use moving-iron moving-coil analog panel meter, As an advanced intelligent, digital grid front-end acquisition component, which can be applied to various control systems, energy management systems, substation automation, distribution network automation, residential power monitoring, industrial automation, intelligent buildings, intelligent switchboards, In the beginning cabinet, it has the characteristics of convenient installation, simple wiring, convenient maintenance, small engineering quantity and field programmable input parameters. It can complete the networking of different PLC and industrial control computer communication software in the industry. distribution system electricity single-phase led digital ammeter
II.MainTechnical Instructions of Southeast Asia hot sale precision 0.5 3-P 3-W LED multi-function low voltage switchgear use digital panel meter with RS485. LED three phase digital voltmeter ammeter combination
Performance Parameters
Input measurement  display Network 3-phase 3-lines, 3-phase 4-lines
Voltage Rated value AC100V, 400V(Please indicate when place order)
Overload Duration:1.2 times  Instantaneous: 10 times /10s. CE approved panel mount programmable switchboard LCD digital power meter
Power consumption <1VA(Each phase)
Impedance ≥500kΩ
Accuracy RMS measurement, accuracy level 0.5
Current Rated value AC1A, 5A(Please indicate when place order)
Overload Duration:1.2 timesInstantaneous:10 times/10s
Power consumption <0.4VA(Each phase)
Impedance <2mΩ  low voltage switchgear use digital panel meter with RS485
Accuracy RMS measurement, accuracy level 0.5
Frequency 40~60Hz, accuracy 0.1Hz
Power Active, apparent power accuracy is 0.5, reactive power accuracy is 1.5
Electric energy Four-quadrant measurement, active energy accuracy 1.0, reactive energy accuracy 2.0
Display Programmable, switching, loop (LED) display
Power supply Power supply range AC220V   AC/DC 85~270v
Power consumption ≤5VA multifunction power meter with RS485
Output Digital interface RS-485, MODBUS-RTU protocol
Pulse output 2-way energy pulse output, optocoupler isolator
Discrete input 4-way switch input, dry contact mode (optional)
Switch output 4-channel digital input, optocoupler relay (optional)
Analog output 4-channel simulation output, 4~20mA/0~20mA (optional)
Environment working environment -10℃~55℃
Storage environment -20℃~75℃
Safety Withstand voltage Input / Power > 2kV, Input / Output > 2kV, Power / Output > 1kV
Insulation Input, output, power supply to chassis >50MΩ
