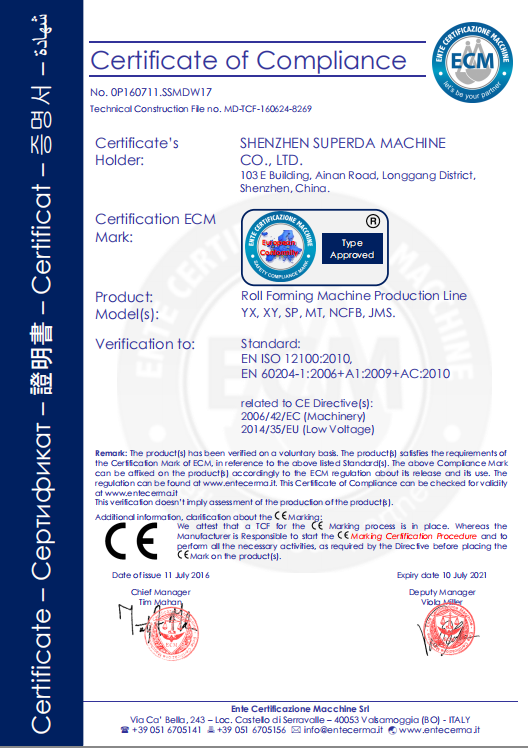

Electrical panel box roll forming machine with CE

Automatic Electrical control panel roll forming machine production line made in China

What is Electrical control panel box

Electrical  Box Process characteristics and performance

1, Distribution enclosure made by Roll Forming machine.Single door of the door, using pin-type hinge, opening angle 110°;

2, protective trough side, waterproof and dustproof, polyurethane foam sealing strip, reliable sealing performance;

3. Distribution case back panel of the box has been installed with wall hanging holes and equipped with mounting ears for easy installation.

Automatic Electrical control panel roll forming machine production line with high production efficiency.

It instead of traditional bending machine and punch machine, Choose roll forming line solution one hour can production 2200pcs.

Electrical control panel forming line technology parameter

Hydraulic press,Hydraulic hole punching system;Hydraulic Function,Hydraulic punch breach  (Mould 1 set);Hydraulic pressure,16MPa;Hydraulic station,18.5KW;Roller station,20 stations and add Rub-roll to make sure the surface profile no scratches;Side Panel,T18mm A3 steel Heavy duty;Rolling speeding,2-8 m/min;Roller material,GCr15 overall quenching hardness HRC56-62 ℃;Motor power,7.5KW;Main Roller,Dia75mm;Equipment base,45 # H type using welded steel plate;Transmission,chain drive;Security,emergency stop buttons with;PLC control system,Siemens;Inverter,Taiwan Shilin;Encoder,Omron;Touch screen, Siemens;

Advantage of control panel machine

​Outdoor using water-proof IP65 & IP66 electronic distribution enclosure roll former design with patent for sale,Superda Metal roll forming machine with durable running quality, Siemens brand PLC control system is easy handle and safety operation. Completed Metal forming machine warranty 1 year, Roller engineer service is a available to any country training and installation testing.

Electrical conctrol panel process

 process is 2 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device  → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack .

Electrical box roll forming machine service

Shenzhen Superda Machine co., Ltd is a China roll former fabricator, Superda professional roll forming machine mainly is highway guard rail roll forming machine,cable tray roll forming machine, floor deck roll forming machine and electronic cabinet enclosure machine. And other hand, the storage rack roll forming machine,solar rack roll former etc roll former or roll former design all is our job expertise.

We support engineer oversea install machine and help metal manufacturers training production engineer.
