Large Concrete Mixing Plants
Posting date : Dec 27, 2018
Membership
Free Member Scince Dec 24, 2018
FOB Price
USD50000/set
Min. Order Quantity
1 set
Supply Abillity
100 set
Port
Tianjin ,Qingdao ,Shanghai
Payment Terms
TT ,30%LC
Package
Pellet
Keyword :
Category
Contact
Max
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
YUJIE
HS-CODE
8474-31
Package & Delivery Lead Time
Package
Pellet
Detailed Description

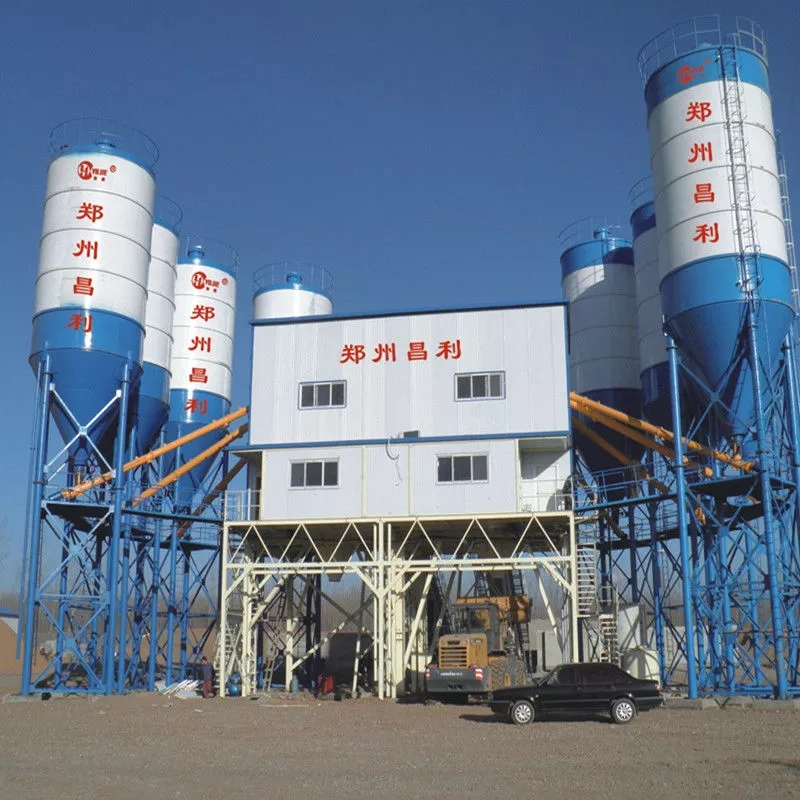

Large Concrete Mixing Plants
Application:
  The large concrete mixing plants is developed according to the needs of the market of high-performance concrete mixing equipment, can meet the needs of users in large volume, high-end intelligent equipment, easy  and convenient operation, high production efficiency, a perfect quality inspection system.
Features:
I. Mixing machine
1. Design of four-fold closed shaft end sealing device to prevent slurry leakage;
2. High wear resistant alloy mixing arm and mixing blade, the service life exceeds the national standard;
3. Large space and low volume ratio design, spacious space, more energy saving mixing;
4. Integrated shaft mixer design, transmission system and mixing system reduced to a joint point, more stable operation;

II Batching system
1. Modular design makes installation, production and transportation convenient and fast;
2. Independent measurement method, high batching accuracy;
3. Warehouse type and steel structure can be freely configured according to site and customer needs;
4. Imported weight sensor, fast batching speed;

III , Aggregate belt conveyor
1. The frame of high section truss standard joint type has good overall rigidity;
2. Closed transportation, dust and blanking prevention, good environmental protection;
3. Equipped with bilateral platform walking and safety handrails, more convenient for maintenance and repair;
4. Nylon inner core high toughness belt, long service life;
5. Suspension idler assembly, automatic deviation correction, low noise;

Iv. Measurement system
1. All measurement components are imported brands with high reliability and anti-interference;
2. Raw and refined material batching, unloading door shaking unloading, high measurement accuracy;
3. Preset two measurement control schemes for arbitrary selection;

V. Electrical control system
1. Adopt the control mode of industrial PC + industrial control card, open design, and support networking function;
2. Friendly interface, flexible operation, powerful function, safe and efficient;
3. Manual batching can be recorded;
4. Scientific production logic organization, low operating cost on the basis of the same output;
5. Can provide users with online timely detection, network management personalized control and management system.

  Product Description:
Model
HZS120/2HZS120
HZS180/2HZS180
HZS240/2HZS240
Productivity
120m³/h /240m³/h
180m³/h / 360m³/h
240m³/h / 480m³/h
Mixer model
JS2000
JS3000
JS4000
Mixing electric power
2X37KW / 4X37KW
2X55KW / 4X55KW
2X75KW / 4X75KW
Mixing cycle
60s
60s
60s
Mixer nominal capacity
2000L
3000L
4000L
Aggregate size
Φ80mm
Φ150mm
Φ150mm
Powder bin capacity
4x200t / 8x200t
4x200t / 8x200t
4x200t / 8x200t
Batching plant batching ability
3200L
4800L
4800L
Aggregate bin capacity
4X25m³ / 8X25m³
4X25m³ / 8X25m³
4X25m³ / 8X25m³
Aggregate type
4
4
4
Aggregate belt conveyor productivity
700t/h
700t/h
700t/h
Screw conveyor high productivity
90t/h
110t/h
160t/h
Discharge height
3.8m
3.8m
3.8m
Installed capacity
210KW / 2X210KW
285KW / 2X285KW
342KW / 2X342KW
Aggregate weighing range and accuracy
(0-1500)±2%kg
(0-3000)±2%kg
(0-3000)±2%kg
Cement weighing range and accuracy
(0-1100)±1%kg
(0-1800)±1%kg
(0-1800)±1%kg
Fly ash weighing range and accuracy
(0-500)±1%kg
(0-1000)±1%kg
(0-1000)±1%kg
Water weighing range and accuracy
(0-600)±1%kg
(0-800)±1%kg
(0-800)±1%kg
Admixture weighing range and accuracy
(0-50)±1%kg
(0-80)±1%kg
(0-80)±1%kg
