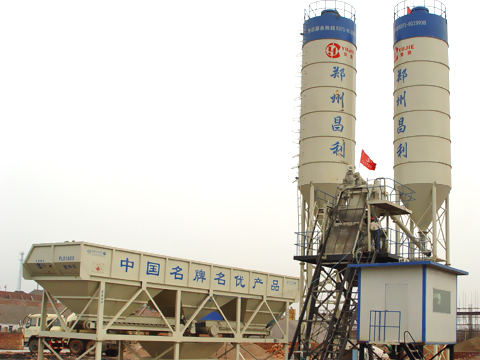

Small Concrete Mixing Plants
Application:
    Small concrete mixing plants mainly include HZS25, HZS35 and HZS50. It is mainly made of conveying belt, mixing machine and batching machine and it can be used with dump truck, dumper and mixer trucks, it can also be customizing according to the special requirements of users to meet what users require.
Features:
1. Quadruple sealing technology
Besides the common sealing process, there are two steel bearing protection rings between side mixing arm and shaft head, which can prevent coarse sand from entering.
2. Electric oil pump technology
Independent oil supply from four pump cores to four shaft heads, no diversion valve, reduce maintenance and maintenance costs;
3. Imported reducer
Reducer and oil seal system are designed and produced by well-known globle manufacturers, long service life, low noise, no oil leakage;
4. Gear oil filtration/cooling system
Optional with the fourth generation of gear oil filtration and cooling system, excellent technology and durability.

Product Description:

Model
HZS25
HZS35
HZS50
Rated productivity
25m³/h
35m³/h
50m³/h
Mixing host
Model
JS500
JS750
JS1000

Host power
18.5KW
30KW
2x18.5KW

Productivity
25m³/h
35m³/h
50m³/h
Batching unit
Model
PLD800
PLD1200
PLD1600
Power
6.6KW
11KW
12KW
Maximum weighing value
Aggregate
1200kg
2000kg
3000kg
Cement
300kg
400kg
600kg
Water
150kg
250kg
250kg
Admixture
40kg
40kg
40kg
Measurement accuracy
Aggregate
±2%
Powder
±1%
Water
±1%
Admixture
±1%
