Portable PKZ-76 External Clamped Type Pipe Beveling Machine
Posting date : May 13, 2020
Membership
Free Member Scince Nov 30, 2018
FOB Price
-
Min. Order Quantity
1set
Supply Abillity
30set per month
Port
Tianjin, Beijing
Payment Terms
TT
Package
Case
Keyword :
Category
Contact
Gillian Wang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
MetalsKingdom
HS-CODE
6804-
Package & Delivery Lead Time
Package
Case
Delivery Lead Time
within 5days
Detailed Description

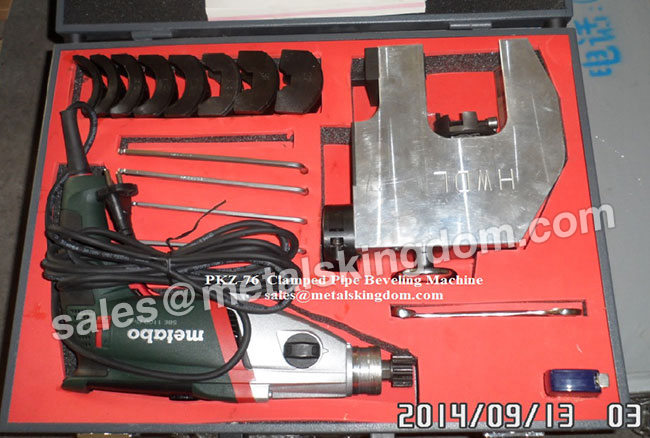

  • The PKZ pipeline grooving machine is suitable for the Dia 27 -Dia76mm pipeline groove.
  • The product is small in size, light in weight and easy to operate, and automatic feed is especially suitable for construction site work. It is convenient to carry out the slope of the water wall tube.
  • This product adopts external clamping mode, and has different static  jaws according to the  the outer diameter of the pipe. These statics are accurate in positioning and easy to disassemble and disassemble.
  • The movable jaw is V block, reliable clamping, suitable for all sizes. The automatic feeding mode not only reduces the labor intensity of the workers, but also makes the processing process more stable.
  • The cutter head is made of high quality cemented carbide and can easily process high quality alloy pipes.
  • The original Metabo motor is used in the power industry, and its quality is superior.
The PKZ pipeline grooving machine developed by Metals Kingdom Industry Limited is suitable for the Dia 27 -Dia76mm pipeline groove.
The product is small in size, light in weight and easy to operate, and automatic feed is especially suitable for construction site work. It is convenient to carry out the slope of the water wall tube.
This product adopts external clamping mode, and has different static  jaws according to the  the outer diameter of the pipe. These statics are accurate in positioning and easy to disassemble and disassemble. The movable jaw is V block, reliable clamping, suitable for all sizes. The automatic feeding mode not only reduces the labor intensity of the workers, but also makes the processing process more stable. The cutter head is made of high quality cemented carbide and can easily process high quality alloy pipes. The original Metabo motor is used in the power industry, and its quality is superior.
 This product features: safe and reliable, high efficiency, can greatly reduce the labor intensity of workers, and improve the quality of groove.
Main technical parameters
Machining range: 27 - 76mm (diameter)
Feeding mode: automatic feeding
One loading card intake stroke: 18mm
The wall thickness of the first loading card: 12mm
Input power: 1100W
Input speed: 0 to 900rpm, 0 to 2800rpm
Power parameters: 220V/5.0A, 50 to 60Hz
Operating weight: 8Kg
