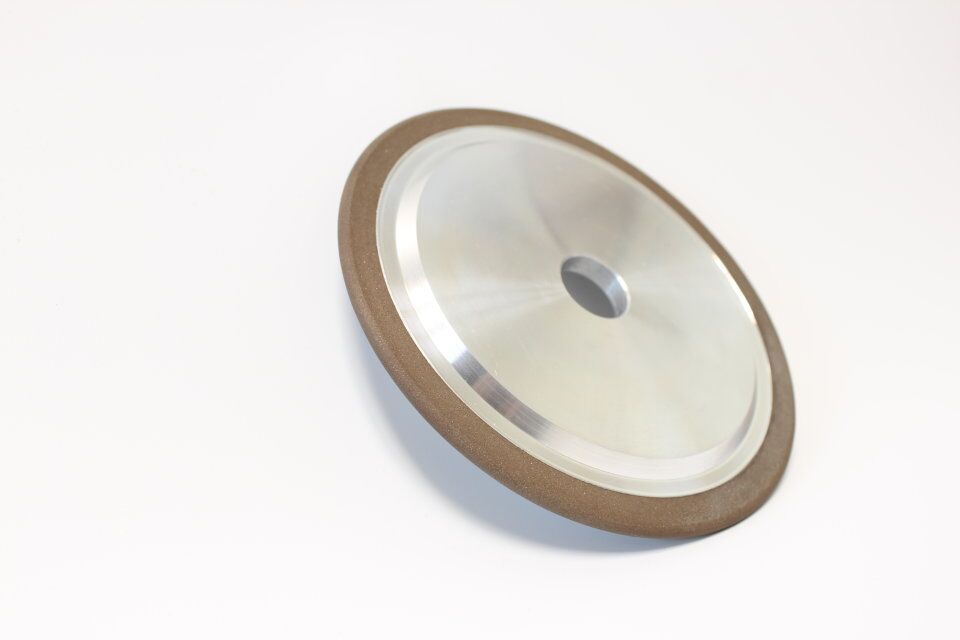

1A1 flat roll resin bond diamond polishing wheels grinding tools for sharpening carbide
0 likes
China [CN] 1A1 flat roll resin bond diamond polishing wheels grinding tools for sharpening carbide
| Name | 125mm Diamond Grinding wheel Beveling wheel | 8202390000diamond block cutting bladesHS code | |
| Bond | Resin bond , Vitrified bond , Metal bond &Electroplated | Material | Aluminium & Steel |
| Abrasive | Diamond and CBN | Packing | purple box, 1pcs /box |
| Size | D:25mm-500mm T: 5mm-40mm H:10mm-127mm | OEM/ODM | Available |
| Type code | 1A1, 1V1, 1EE1, 1FF1, 3A1, 11A2, 6A9, 14A1,14A1R,11V9, 11C9, 4A2, 6A1,6A2, 12A2, 9A3, 1F1,12V2, 1L1, 14EE1, 4B1, 14E1, 4A2P, 11B2, 6A2T, 11V2, 9A1, 1A1R, 1F1, 1A8, 9A1, 9A1B,3K1, 1A1W, 4V2, 1A3, 1A2T,1A2, 12C9 14E6Q, etc. | ||
| Usage | Mainly used for grinding , sharping and polsihing . Widly used in the filed of PCD, CVD, PCBN ceramic, diamond processing, sapphire processing, stone , glass, ceramic, bearing, compressor , car engine processing industry, precision machining,etc | ||
| Sample Cost | Depends on the design, please contact us to discuss further | ||
Grinding is one of the main machining methods in the present semi finishing and finishing, and the grinding wheel is an important tool in the grinding process.According to different uses, grinding mode and the type of grinding machine, the wheel was made of various shapes and sizes, the common grinding wheel with flat shaped grinding wheel, cylindrical wheel, double bevel wheel, cup wheel, a bowl shaped grinding wheel, disc wheel and so on.Selection of grinding wheel elements.
(1) hard grinding material, choose the soft, fine grit grinding wheel. Soft grinding material, should choose a hard, coarse grit grinding wheel. By doing this ,grinding wheel loss is small, also not easy to plug. (2) when doing the rough grinding ,in order to increase the productivity, the coarse grit, soft grinding wheel should be chosen, In order to improve the surface quality of the work piece during accurate grinding , the fine grit ,hard grinding wheel should be chosen.(3) the large area of grinding or thin-walled work piece grinding should choose the coarse grit, soft grinding wheel. This wheel is not easy to plug, the surface of the work piece is not easy to burn, the work piece is not easy to deformation.(4) form grinding process to select the fine grit, the small organization, and the hard grinding wheel to maintain the profile of the grinding wheel.Metal bond CBN tools have become an important tool for hard brittle material grinding because of its high strength, good shape, long lifetime and can meet the request of high speed grinding and ultra precision grinding.
