chinese low cost programmable logic controllers plc with hmi input output module

본문 바로가기


Home > Product > chinese low cost programmable logic controllers plc with hmi input output module
Product
chinese low cost programmable logic controllers plc with hmi input out...
Posting date : Oct 19, 2018
Membership
Free Member Scince Oct 18, 2018
FOB Price
110
Min. Order Quantity
1
Supply Abillity
2000
Port
shangha
Payment Terms
USD
Package
Inner plastic box + outer hardness box.7days refund in case of bad quality
Keyword :
Category
Contact
jianxianpan
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
jiangsu
Model Number
MU1H-1614MR
HS-CODE
8413-50
Package & Delivery Lead Time
Package
Inner plastic box + outer hardness box.7days refund in case of bad quality
Detailed Description

Chinese low cost programmable logic controllers plc with hmi input output module

Attention Please

pay attention.jpg

CERTIFICATE:

1. Description: plc controller

2. Report No.:1105218

3. Applicable Standard(s): IEC61131-2:2007; IEC6100-3-2:2009+AI:2009; IEC61000-3-3:2008



OUR MAIN MARKET:

1. WELCOME ALL MARKET TO JOIN US, NO MATTER WHERE ARE YOU COME FROM.

2. OUR 70% MARKET IS FROM EUROPE AND AMERICAN.

3, YOU WILL NOT BE THE FIRST ONE TESTING ITS PRFORMANCE AND STABILTIY.



WORLD-WIDE CUSTOMER COMMENTS & FEEDBACK:

1. Here is some of comments from our world-wide customers.

2. You can check all the comments at our company profit.

3. Please visit www.mochuan.en.alibaba.com

4. Click" company profit, then choose" Rating Reviews" OR" Transaction History".

(Please note: all our customer comments is real one, NOT FAKE!!! NOT FAKE!!! NOT FAKE!!!)



TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE.

We never got any complain.

More than 5000 customers contacted us.

feedback client.jpg



MU1H Technical

Noted Please: IMPORTANT to help you confirm and select correct plc item, even this part have a little long and take some time. Thanks for your patience.



  MU2V MU2H MU1H
I/O Point 16/16, 28/28 16/16, 32/32 08/06, 12/08, 16/14,14/10, 24/16, 36/24
Max Logical I/O 512 512 256
Max Special Function Module 8 8 2
Program Capacity 32K 24K 12K
Pulse Output 8*200Khz(support 4 differential output) 3*100Khz(transistor output) 2*100Khz(transistor output
One-phase counting channel 8*200Khz(support 4 differential input) 2*50Khz, 4*10Khz
Two-phase counting channel 4*200Khz 1*25Khz, 2*5Khz 1*20Khz, 2*10Khz
Sum of counter frequency 800KHZ 100KHZ 80KHZ
PLC N:N support
RTC support(power down keeping at least 3years)
Constant Scanning Mode support
Digital Filter 0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable
Feature Description
Programming Software Free MCprogrammer
Program Security donwload/upload/program password
Programming language ladder, instruction, SFC
Communication Protocol programming protocol, Modbus, CAN, and free port, MXlink
Expansion Module I/O extension module, AD/DA, thermal resistance, thermal couple, pulse,etc



MU1H Series Sturcture:

1H enclouser



Mochuan MU1H Main Module

Item MU1H-1614MR/T/1 MU1H-1410R/T MU1H-2416MR/T MU1H-3624MR/T
Integrated Function

Integrated 2AD-1DA

support 2pcs I/O and anlog module

support 2pcs I/O and analog module
Instruction basic instrcution 31
step instruction 2
applied instruction 174
Program Capacity 12K steps
Programming Cable Mochuan
Pulse Output 2*100Khz( transistor output)
Power Supply Output DC24V
Action Indicator LED
Input/Output Specification
I/O Point 16/14  14/10  24/16 36/24
Expanded I/O Point -
Working Volt AC85~264v/DC24V
Insulation Method mechanistic
Max Load
ON/OFF Response Time relay Max 20ms
transistor Y0~Y1<5μs/10mA, the other<0.5μs/100mA
Register Specification
Timer 100ms T0~T209(0.1~3276.7s)
10ms T210~T251(0.01~327.67s)
1ms T252~T255(0.001~32.767s)
Counter 16bit 16bit increase: C0~C199
32bit 32bit increase & descrease: C200~C234
High-speed counter single phase counting input C235~C245
single phase two counting input C246~C250
two phase two counting input CC251~C255
Data Register D0~D3999
Part Data Register V0~V63
Indexed Register Z0~Z15
Special Data Register SD0~SD511
AUX Register M0~M2047
State Register LM0~LM63
Interupt Specification S0~S1023
Internal Timer interrupt 3
External Interrupt 16
High-speed counter interrupt 6
S/N interrupt 8
PTO Output Finished Interrupt 2
Power Off interrupt 1
Communication Specification
Communication Port PORT0: RS232; PORT1:RS485; PORT2:CAN
Communication Protocol Modbus/Free port/Programming port/ Ethernet support Modbus and Modbus TCP
Security Specification
Basic project file/program/upload/download/monitor
High-Level forbidded formatting/forbidded upload/number limit of password retries
Dimensions
Size(mm)L*W*H 126*90*72
MU1H Feature

MU1H-0816MTD-6LC, MU1H-0814MTD-4LC, MU1H-9LC integrates temperature control:

1. supports all functions of MU1H series main module

2. Integrates multi road temperature sampling and control;

3. Support self-turnning function and power off keeping function

4. flexible configuration for output, could be used as temperatue control output, also the general output.

PID



Super Extended System: max Extended I/O points of MU1H PLC is 256 points.With integrated 2AD-1DA and  supported 2pcs I/O or specifcation function module.

MU1H .jpg



Reliable Security:

1. all main program and subprogram can be separately encrypted to prevent proporietaty-technology reveal;

2.limit the numbers of password retires to avoid inllegal decrytption;

3. program upload/download/monitor can be set different password;

4. supply forbidden formatting and uploading;

5. support downloading compiling file without user program, which is for batch production and on-site maintenance;

6. User assign PLC serial number, only could run in correspondent PLC.

SECURITY

What&How Mochuan is?

company

Wtih more than 15-years domestic market developing since 2002 and around 3-years foreign business since 2015 development, and the sufficential support and cooperations from all our valuable customers.



Mochuan Drives has been integrating manufacturer and engineering company in PLC, HMI, VFD, IE4 AC PMSM Motor and posistion switch sensor. Our one-stop service has the honor to serve more than 100 industries in China and more 200 foreign customers



Our Value message is QUALTY IS OUR CULTURE.

90% of our production equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUCTS.



With us your MONEY in safe, Your BUSINESS in safe".

WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS"

WE BELIEVE THAT" THE QUALITY IS THE SOL OF AN ENTERPRISE".



visit photo

Free Software

MCProgrammer meet IEC61131-3 international standard.

.jpg



Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for convertion between ladder and instruction list, annotion could be kept.


PLC Extended Module

I/O Extended Module

Model  I/O Points Digital Input Digital Output

Size(m)m

/LxWxH

Input Points Type Output Points Type
MU2H-0800ENN 8 8 leak/source - - 58x90x83
MU2H-0808ERN 16 8 leak/source 8 relay
MU2H-0808ETN 16 81 leak/source 8 transistor
MU2H-1600ENN 16 16

leak/source

- -
MU2H-0016ERN 16 - - 16 relay
MU2H-0016ETN 16 - - 16 transistor
MU2H-1616ER 32 16 leak/source 16 relay 158x90x83

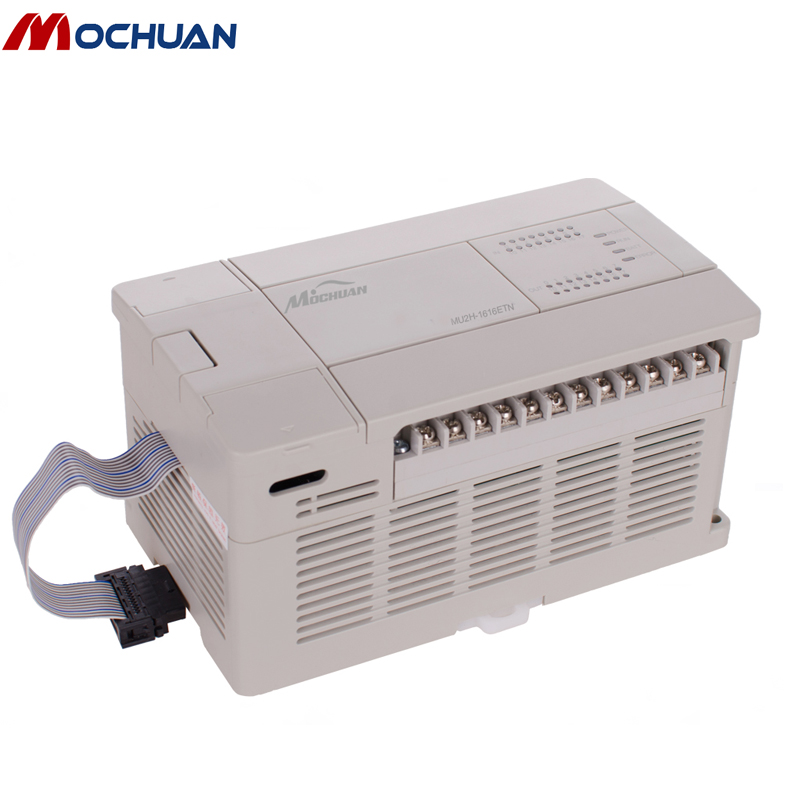

MU2H-1616ET 32 16 leak/source 16 transistor
MU2H-1616ERN 32 16 leak/source 16 relay
MU2H-1616ETN 32 16 leak/source 16 transistor
Analog Module
Model Input  Output

Size(mm)

/LxWxH

Input Points  Type Output Points Type
MU2H-2AD 2 voltage, current - 58x90x83
MU2H-4AD 4 voltage, current -
MU2H-2DA - 2 voltage, current
MU2H-4DA - 4 voltage, current
Extended Card
Model  Specification
MU2H-CAN-BD

support CAN2.0A/CAN2.0B hardware port(isolated)

support free port protocol, MXLink protocol

MU2H-RS485-BD support RS485 hardware port
MU2H-CAN-RS232-BD support CAN2.0A/2.0B, RS232 hardware port
MU2H-RS232-BD support RS232 hardware port
MU2H-ETH-BD

10/100M adapt;

support TCP/IP protocol

programming port protocol

Modbus TCP protocol(slave)

Application

PLC application.jpg

FAQ



Q1: How many the Maximum points can up of your plc?

The main module at least 14points, maximum 60points can extend to 512points.



Q2: How many voltage are of your plc? Whether the voltage can be customized according customers?

The input voltage AC110V~240V, DC24, or according to customers.



Q3: What is guarantee of your plc controller?

All series PLC to provide 18months warranty and lifetime maintenance.



Q4: What information should provide, if wanna get a quotation?

You could tell us your requirements and usage or our models.



WANNA YOU KNOW:

1. YES, Mistubish, Siemens with a good quality but no doubt the cost is not cheap, but some time our project is only use 1/10 or less on its performance.

2. To ensure its stabiltiy and performance first, the next" HOW TO CONTROL THE COST" should be second. Mochuan is the person you are looking for.



ACTION NOW!!! CONTACT US FOR WHOLE CATALOG, SOLUTIONOUR QUALITY WILL GIVE YOU EDGE OVER YOUR COMPETITOR.
