Innovation technology Roll forming design for electronic cabinet enclosure

Product

Innovation technology Roll forming design for electronic cabinet enclo...

Posting date : Oct 11, 2018

Click enlarge Image

Membership

Free Member Scince Oct 10, 2018

FOB Price

USD70000

Min. Order Quantity

1SET

Supply Abillity

100SET/YERA

Port

Shenzhen

Payment Terms

By TT

Package

Conationer

Keyword :

roll forming design

Category

MACHINERY & ELECTRICAL | Nuclear re | Metal-roll | Rolls for

Contact

Rebaca

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

Superda

Model Number

YX21-350

HS-CODE

8455-30

Package & Delivery Lead Time

Package

Conationer

Delivery Lead Time

60 days

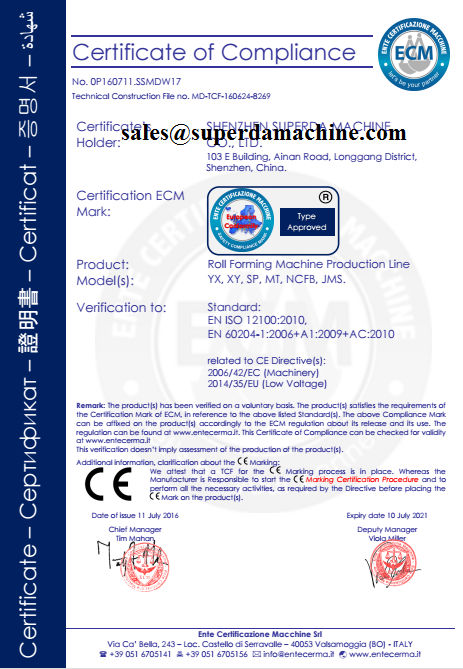

Specifications

Type of Certification

Reference no.

OP160755

Name.

Roll forming CE

Issued By

Italy

Start Date (validity period)

2016-10-11

End Date (validity period)

0000-00-00


Detailed Description

Innovation technology Roll forming design for electronic cabinet enclosure

YX20-150/200/250/300/350 Forming machine

Metal forming Technical parameters

No.	ITEM		PARAMETER	REMARK
1	MATERIAL	Type	Cold-rolled strip steel, galvanized sheet
		T.(mm)	0.8-1.2mm
		Yield Strength (Mpa)	Q235
2	Forming product Width		150,200,250,300,350mm
3	Forming speed (m/min)		2-8m	Including hole
4	Forming main power (KW)		7.5 KW	FYR
5	Hydraulic power (KW)		18.5 KW	FYR
6	Bending power (KW)		3 KW	FYR
7	Voltage		AC380V，50Hz，3P

Disitribution box production process

(A) 2 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack

(B) Bending machine with tool

Shenzhen Supera Machine Co., Ltd. specializes in the production of metal sheet metal forming machine.

Gearbox drive style Highway guardrail roll forming machine,completed process Uncoiler →Guide device→Straightening→Hydraulic press breach device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack.Hydraulic station：30KW Hydraulic punch hole & shear use same station .

Using, Forming highway guard rail;

Place of Origin,China;

Business type,manufacturer;

lead time,60-90 days;

Machine color,customized;

Certification,CE report;

Condition,new;

HS Code,84552210;

Supply ability,15sets/Month;

Packaging,container;

After-saler service,engineer available to service machinery in oversea;

PLC,Panasonic;

Operation type,Touch screen;

Hydraulic system pressure,12MPa;

Hydraulic motor power,30kw;

http://www.superdamachine.com

https://www.youtube.com/watch?v=cIKZ7QgPFV0&feature=youtu.be
