Resin bond diamond grinding wheel is mainly used for machining tungsten carbide cutting tools, ceramic , magnetic materials, silicon , glass , quartz and thermal spraying alloy

본문 바로가기


Home > Product > Resin bond diamond grinding wheel is mainly used for machining tungsten carbide cutting tools, ceramic , magnetic materials, silicon , glass , quartz and thermal spraying alloy
Product
Resin bond diamond grinding wheel is mainly used for machining tungste...
Posting date : Oct 10, 2018
Membership
Free Member Scince Jul 02, 2018
FOB Price
30 USD
Min. Order Quantity
1 slier
Supply Abillity
50 slier every week
Port
Shanghai
Payment Terms
T/T, Western Union, MoneyGram
Package
carton box with foam box (Gift package is available)
Keyword :
Category
Contact
Alisa Zhang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Moresuperhard
Model Number
1A1, 6A2, 14A1, 3A1, 11V9, etc
HS-CODE
6804-
Package & Delivery Lead Time
Package
carton box with foam box (Gift package is available)
Delivery Lead Time
7-10 work days
Detailed Description

Introduction to resin diamond grinding wheel

The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials. Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.

Production of diamond grinding wheel with resin binder:

Resin as the bond material, metal powder, metal oxide, ordinary abrasive as filler mix to make the binding agent. The abrasive and binder are mixed into the molding material according to the requirements of concentration. The product is formed by hot pressing, curing and subsequent processing

Applications Of Resin Diamond Grinding Wheel

Resin bond diamond grinding wheel is mainly used for machining tungsten carbide cutting tools, ceramic ,magnetic materials, silicon ,glass ,quartz and thermal spraying alloy ,etc

Advantages Of Resin Diamond Grinding Wheel

* high cutting efficiency,good self-sharpening, less blocking,reducing the grinding burn occurs when the phenomenon of work

* good flexibility will help to improve the surface roughness, mainly used for rough grinding, semi-fine grinding, polishing and other processes

* compared to conventional silicon carbide , resin diamond wheel has good material removal rates, longer wheel life and lower grinding costs

* resin bond diamond wheels generally remove material up to ten times faster than metal bond wheels

1A1R Diamond Cutting Disc For Optical Glass, Quartz And Sapphire, Etc

1A1R diamond cutting disc 155D-31.75H-1T-10X 120# resin diamond cutting wheel D55-T0.2-H40 400# 1A1R resin diamond cutting wheels 100D-31.75H-0.5T

CNC Tools Grinding Wheel, Woodworking Tools Diamond And CBN Wheels

CNC tool grinding wheel diamond and CBN wheels for woodworking tools  CBN wheels for sharpening chain saw

HVOF Carbide Coated Diamond Wheels, Centerless Diamond Wheels, Resin Diamond Cup Wheel

diamond wheels for thermal spray coating centerless diamond wheel resin diamond cup wheel carbide lathe tool

Back Grinding Wheel For Silicon Wafer, Double Disc Diamond Wheel, Diamond Laps For Gem

back grinding wheel  double disc diamond wheel diamond grinding disc

Application of Resin diamond grinding wheel

1: machining tungsten carbide

2:ceramic materials

3:magnetic materials,

4:silicon materials

5:thermal spraying alloy materials

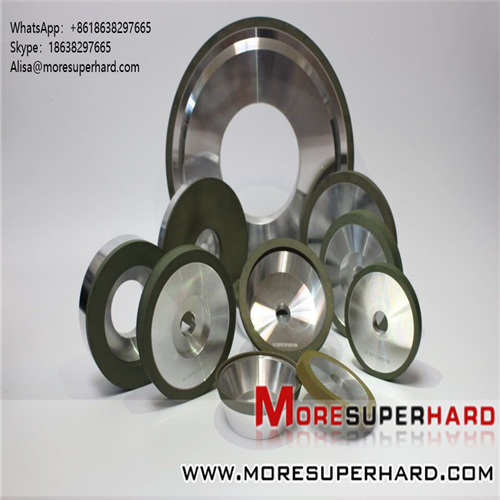

Resin diamond wheel products

1:resin cup diamond wheel

2:resin diamond polishing wheel

3: CNC resin diamond grinding wheel

4:resin diamond cutting wheel

5:resin diamond wheel for glass

6:resin centerless grinding wheel

Production process of Resin bond diamond grinding wheel

1. Mix: the binders and diamond powder are fully stirred and fused in a certain proportion

2. Weighing: weighing according to the volume, ring width and density of the grinding wheel required by the customer

3. Feeding: put mixed diamond powder and binding agent into the grinding tool

4: compression ring (let stand for a period of time to wait for molding)

5: back mould

6: the abrasive layer is air-dried

Cook for 10 hours at 7:670 degrees

8: cooling (prepare the matrix at the same time)

9. Fixed decoration of the whole

10: measure stationarity

Why choose our product?

Our product’s advantages:

1.High grinding efficiency

2.Wonderful edge quality

3.Long service life

4.High polishing efficiency

5.Large Exports

6.Considerable after-sell service

7.Amazing performance

8.Various types and sizes available

9.Direct Factory Manufacturer

10.Backing/substrate material: Aluminum

11.Abrasive layer: diamond

12.Bond: vitrified

13.Excellent cutting edges

14.Reduced cycle times

15.Custom Engineered

If you have any questions, please contact us

WhatsApp:+8618638297665

Skype:18638297665

Alisa@moresuperhard.com

Tel:18638297665

URL:www.moresuperhard.com

Please provide us details when you order, For example,

Product needed: Resin bond diamond grinding wheel

1) Diameter   (25, 40,100,200,300…750mm)

2) Hole/state bore dimension

3) Thickness   (4/5/6/8/10/…40/50/60mm)

4) Shape (1A1 /1A1R/1A8/1A1W/1L1/1F1/6A2/12A2/11V9/4A1/14A1…)

5) Grit size (16/18, 18/20…40/45,80/100…325/400. In GB or ISO standard)

6) Other request
