More SuperHard company offers a full line of diamond and CBN grinding wheels and dressing stones for fine grinding machines and single and double side lapping systems. Our vitrified diamond and CBN grinding discs have high grinding efficiency, high wear resistance and abrasive consumption, good surface quality and flatness of the workpiece.

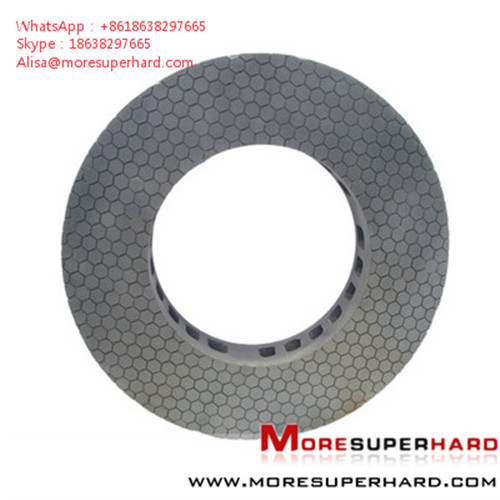

Double Disc Diamond And CBN Grinding Wheel
Double Disc Grinding in Automotive Parts Manufacturing
Double-disc grinding has long had a home in the automotive industry, where dedicated operations can take full advantage of its high productivity rates. Today, a number of advances allow double-disc grinders to meet requirements for improved performance in these traditional applications, and they also are opening the way to productive use in new applications. Capabilities are now available for easier machine operation, control flexibility, statistical process control (SPC), faster changeovers and setup, and applications on an expanded range of materials, including ceramics and graphite.
Diamond / CBN Grinding Disc, Grinding Wheel
|
|
Seal
|
Engineering Ceramics, Double Metal Composite Sheet
|
|
Tools
|
Cemented Carbide, Ceramet
|
|
Magnetic Materials
|
Soft Ferrite, NdFeB Magnetic.
|
|
High Pressure Vane Pump
|
Blade, Rotor, Stator
|
|
Air Conditioning Compressor Parts
|
Cylinder Block (Grey Cast Iron Or Nodular Cast Iron), Sleeve (Alloy Cast Iron), Slide (High Speed Steel) , Piston.
|
|
Others
|
Automobile, Motorcycle Piston Ring, Engine Thrust Plate
|
Applications of vitrified bond double disc grinding wheel
Diamond grinding wheel, is suitable for grinding carbide, tungsten steel, PCBN high hardness of the workpiece ,ceramic , optical glass, sapphire glass and other nonmetal materials. CBN grinding wheel, is suitable for high speed steel, bearing steel, tool steel, stainless steel , powder metallurgy, precision grinding mill cast iron and other hard materials.
Applicable areas
* Hydraulic pneumatic components. vane pump, conversion valve, piston pump,fuel pump, hydraulic motor parts.
* Compressor spare parts. air conditioner compressor vane, piston, air cylinder, Refrigerator compressor valve plate.
* Engine parts. automobile fuel pump parts, booster pump parts,oil pump nozzle parts.
* High precision shaft ,seal, watch parts, molds, carbide blade, ceramic valve core,magnetic materials,etc
The specification of double disc grinding wheel
 1A2T |
D: 305mm - 1200mm
|
|
X: 3mm - 10mm
|
|
T: 50mm -100mm
|
 6A2B |
D: 380mm - 1200mm
|
|
W: 150mm - 400mm
|
|
X: 3mm - 10mm
|
|
ceramic paste layer: cylindrical, hexagonal, fan shaped and square
Flatness:<=2μm, parallelism:<=2μm, Roughness: Ra0.02μm-Ra0.2μm
|
|
Durability: grinding HSS slide (25mm*25mm), the number of workpiece >= 1million
grinding carbide blade, the number of workpiece >= 1million
|
|
Double disc grinding machines:AM South Korea, Pete waters Germany, Stahli Switzerland, lapmaster and Koyo ...
|
Dressing Wheel For Diamond And CBN Wheel
The dressing wheels are used for dressing diamond and CBN wheels. According to the different particle size, accuracy of the diamond and CBN grinding disc to choose the dressing wheel, making dressing easier and more time saving.
Our customer tested surface roughness of workpiece by MarSurf M 400. The results show that the workpiece has the much stable performance and good surface roughness by using our diamond grinding disc.
Product features
1. High precision diamond grinding disc grinding and polishing once completed.
2. To shorten the processing time, in a short period of time to achieve high precision surface.
3. The original colour and lustre Bai Jinliang workpiece surface is metal.
4. For stainless steel plate, copper, aluminum, titanium alloy in the process of grinding, non-stick silk night, difficult to jam.
5. No scratches, no workpiece surface pitting.6. This product service life is long, reduce grinding disc wheel changed frequently.
Dressing wheel for diamond and CBN wheel
The dressing wheels are used for dressing diamond & CBN wheels. According to the different particle size, accuracy of the diamond and CBN grinding disc to choose the dressing wheel, making dressing easier and more time saving.Our customer tested surface roughness of workpiece by MarSurf M 400. The results show that the workpiece has the much stable performance and good surface roughness by using our diamond grinding disc.
Why choose our product
More SuperHard Products Co., Ltd is dedicated to finding solutions that help our clients in all markets succeed. More SuperHard has been manufacturing high-quality, competitively priced superabrasive diamond and cbn tools that are designed to perform in a wide range of industrial ,such as pcd tools grinding, natural diamond polishing, auto parts processing , thermal spray coated industry, optical glass, semicon and led industry, woodworking tool , cnc tool grinding and roll machining ,others ultral precision industry.
The company production and sales of products covered vitrified bond tools, resin bond tools, metal bond tools, electroplated diamond/cbn tools, vaccum brazed products, cvd diamond tools, polycrystalline diamond (pcd) tools, cubic boron nitride (cbn) tools.our objective is to meet all the customers’ needs and help every customer achieve maximum benefits. more brings in revenue for you, you win, we win!
More SuperHard supplies the wheels for several application mainly:
1.Carbide round tools on cnc machines : flute grinding, gash grinding, end facing, clearance angle and cylindrical grinding .
2. Insert grinding for machines such as: agathon, wendt, haas, waida and ewag.
3.Woodworking saw blade and tools .
4.Hss tools
5.Cutting wheels
|
Our product’s advantages:
1.High grinding efficiency
|
|
2.Wonderful edge quality
|
|
3.Long service life
|
|
4.High polishing efficiency
|
|
5.Large Exports
|
|
6.Considerable after-sell service
|
|
7.Amazing performance
|
|
8.Various types and sizes available
|
|
9.Direct Factory Manufacturer
|
|
10.Backing/substrate material: Aluminum
|
|
11.Abrasive layer: diamond
|
|
12.Bond: vitrified
|
|
13.Excellent cutting edges
|
|
14.Reduced cycle times
|
|
15.Custom Engineered
|
