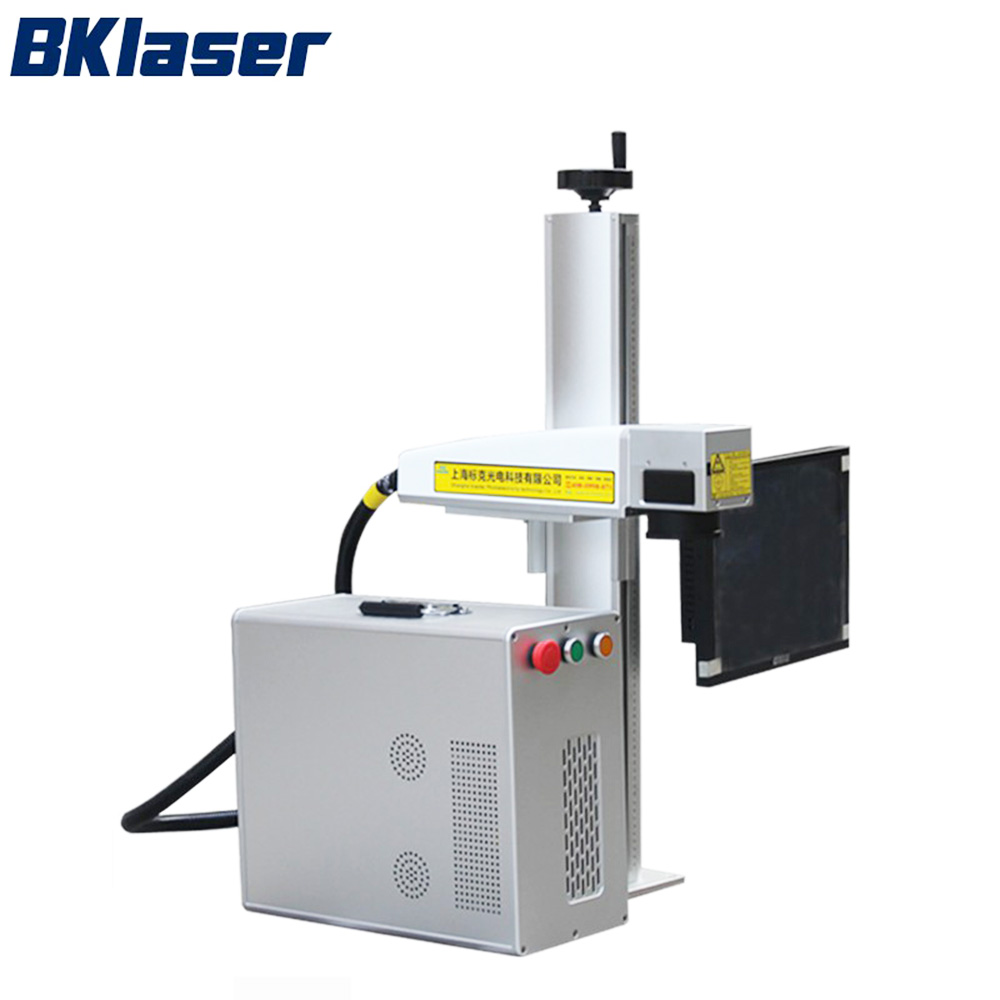

New small fiber laser marking machine for phone case rings

Description:

The Fiber Laser Marking Machine is widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, military products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic material.

Also can use Mopa fiber laser source mark colorful photo on stainless steel, metal and so on.

Technical Parameters:

Model	BK-G10BX	BK-G15BX	BK-G20BX	BK-G30BX
Power	10W	15W	20W	30W
Laser Wavelength	1060nm
Frequency Range	0-100KHZ
Beam Quality	<2			<3
Engrave Line Speed	≤7000mm/s
Minimum Line Width	0．03mm(depends on the material)
Minimum Character	0.3mm( depends on the material )
Repeat Accuracy	±0.003mm
Power Supply	90-260V/50Hz-60Hz
Maximum Height Of Marking Workpiece	100mm（select 170*170mm marking highest 80mm）
Power Consumption	500W
Engrave Depth	≤0.3mm			≤0.5mm
Operation System	Windows
Cooling Mode	Built in air cooling
Engrave Range	Standard 110110mm，optional 170170mm
File Formats	All fonts in WINDOWS operating system
Contour Size of The Unit(s)	210550750mm
Machine Total Weight	33Kg

Performance Characteristics:

1. By increasing laser oscillation in the optical fiber Pori to achieve low loss, good stability and it is not influenced by the external dust gas and mechanical loosening of the laser beam, stable output.

2. Maintenance free.

3. Processing speed is 2-3 times the traditional laser marking machine.

4. Air cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, small power consumption (less than 800W), the use of low cost.

5. Portable box type design, small size, especially adapted to those need to often change the site work, and those space restrictions on the site. Widely used in jewelry store processing and processing of small parts before the shop model.

6.It has strong environmental adaptability and it can work continuously under the environment of shock, shock, dust and humidity. It is easy to realize the coupling with the optical fiber, and can realize long distance work.

7.It can mark bar code, two-dimensional code, text, graphics, regular and irregular transaction.

8. Software runs on WINDOWS platform, Chinese / English interface, compatible with AUTOCAD, CORELDRAW, PHOTOSHOP and other software file formats, such as PLT, PCW, DXF, BMP and so on, and also can use SHX and TTF fonts directly.

Application Area:

Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools, precision instruments, gifts, jewelry, medical equipment and other high-end products of precision, fine print logo. Typical applications such as plastic (PA66) insulation strip, laser flight marking, metal label automatic feeding and unloading, laser marking, packaging box, on-line laser marking machine, etc.
