Unmanaged Industrial Switch PM3010GSI
0 likes
China [CN] |
Model
|
PM3010GSI
|
|
Standard
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
|
|
Interface
|
8*10/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX)2*1000Mbps SFP Slots
|
|
PoE Standard
|
IEEE802.3af/at
|
|
PoE Port
|
1-8 Port
|
|
PoE output-port
|
Max 32W
|
|
Transfer Mode
|
Store-and-forward
|
|
Switching Capacity
|
20G
|
|
MAC Address Table
|
4K, Auto-learning, Auto-aging
|
|
jumbo frame
|
9216 Byte
|
|
Packet buffer
|
1.5M bit
|
|
Packet Forward Speed
|
14.88 Mpps
|
|
Input Power Supply
|
DC:48-57V or (24-48V booster module) optional
|
|
Operating Temperature
|
-40℃~75℃
|
|
Storage Temperature
|
-40 °C ~ 80 °C
|
|
Operating Humidity
|
10% ~ 90% non-condensing
|
|
Storage Humidity
|
5% ~ 90% non-condensing
|
|
Dimensions(L*W*H)
|
165*147*54mm
|
|
Fan Quantity
|
Fanless
|
|
Machine weight
|
<2kg
|
|
LED Indicator
|
PWR（Green), DATA（10/100M:Orange 1000M: Green), PoE（Orange）
|
|
Network media
|
10BASE-T: UTP category3,4,5 cable（≤100m）
100BASE-TX: UTP category 5, 5e cable（≤100m）
1000BASE-T: UTP category 5e,5 cable（≤100m）
1000BASE-TX : Turn gigabit SFP optical RJ45 electrical module1000BASE-SX :Gigabit SFP multimode（850nm，LC，DDM）
1000BASE-LX : Gigabit SFP mode （1310nm，LC，DDM）
1000BASE-ZX: Gigabit SFP single mode （1550nm，LC，DDM）
|
|
Surge Protection
|
Differential mode ±4KV Common mode ±6KV
|
|
EEE
|
IEEE 802.3az
|
|
MTBF
|
>100000 hours
|
|
Electrostatic standard
|
Contact±8KV,air±10KV
|
|
Model
|
product information
|
|
PM3010GSI
|

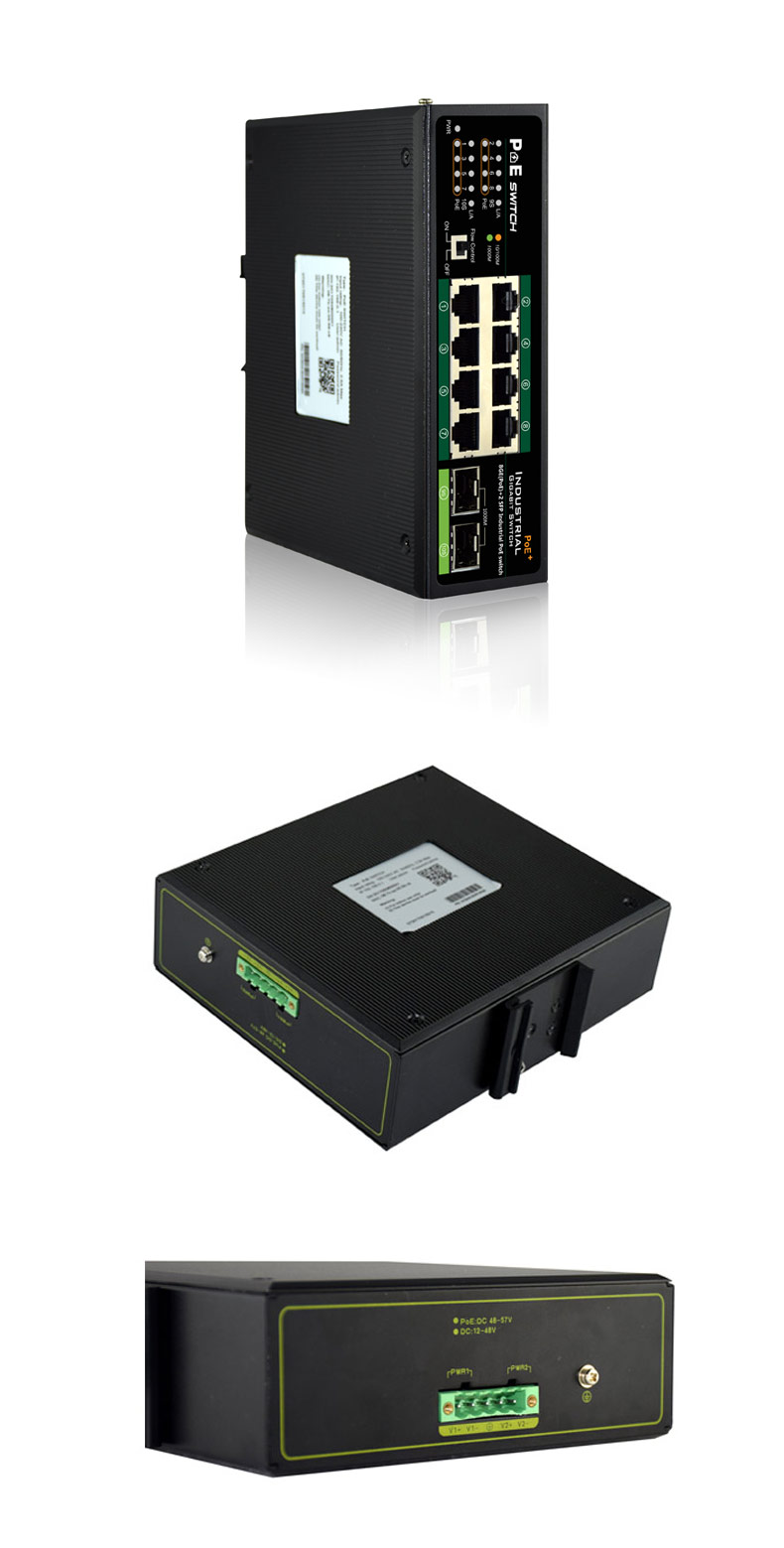

8-Port Gigabit+2G SFPIndustrial PoE switch (Support 802.3 af/at standard)
|
Click enlarge Image
