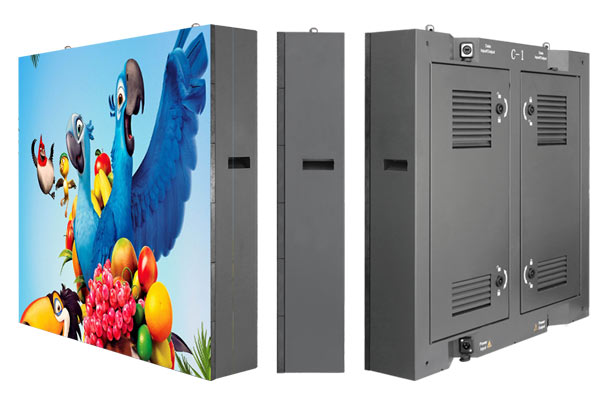

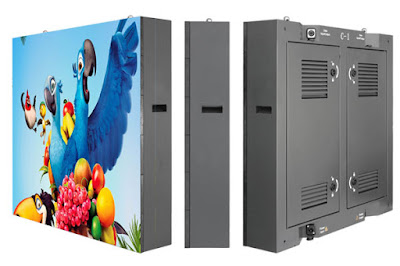

Outdoor Commercial LED Display FR Series
0 likes
China [CN]
Pixel Pitch: 5mm/6mm/8mm/10mm
Cabinet Size: Customized Size
Brightness: >6500nits
Material: Iron or Aluminum
Application: Outdoor Rear Service Advertising
FR series is exclusively for outdoor commercial advertising applications. High brightness SMD and high IP level guarantee superb advertisement showing and all-weather operations. It is a perfect choice for different kinds of outdoor installations such as shopping malls, plaza, arena scoreboard, column beside the high way, trailers and building roof installation etc.
FR series is with high quality SMD which shows much vivid and soft image. More comfortable to be seen by human eyes. Meanwhile, SMD can achieve bigger viewing angle (more than 120degree) which makes sure more passing-bys can enjoy the good quality image of advertisement. Great to enhance the commercial value and decorate the beauty of city.
Great Smoothness, Perfect Image Quality
FR series are with screw fixed modules which ensures the best surface uniformty of display area. Each module mask is fixed by several screws, greatly prevent the mask from deforming after long time exposure under sever weather. Cinstar FR series is seamless connection and showing image without any dark lines and bright lines, high quality advertisement performance is guaranteed.
Waterproofing aviation connectors are adopted to make the cable connection easier. No need to open doors and screw sockets, just simply plug in. Greatly improved the operation security and save much installation time.
Each cabinet is designed four ventilation areas to improve the cooling effect. There are several electric fans inside cabinet to provide an uninterrupted air exchange to ensure a perfect heat dissipation. But if the screen is with giant size and installed in tropical and subtropical areas, then external air conditioner is needed.
The brightness of LED display can be varied with ambient light conditions by working with one light sensor. When it is dark, the brightness can be adjusted automatically to a Non-dazzling condition. Comfortable to eyes and reduce operation cost.
If needed, the monitor card can be installed in each cabinet to achieve fault detections: module working condition, humidity and temperature detection, power supply voltage detections etc. When any error occured, it will show up on the software or report to operator automatically. Such function is optional, but very helpful for advertising business. When screen goes malfunciton, with instant notice the problem can be fixed at first minute and guarantee the best working condition of the display.
The transmission distance of normal CAT 5 cable is 100m, if the distance between control room and LED display beyond 100m, some extender devices like fiber converter are needed to prevent signal loss or delay. Cinstar fiber converter can guarantee the transmission distance up to 15km. If the distance more than 15km, it will need internet cloud.
Cinstar LED display supports remote diagnostics. All the LED display working conditions can be monitored by a registered device like smartphone, Ipad etc. With on-site image monitoring, we know on-site conditions of all LED display in time. The brightness and parameters of each LED screen can be adjusted remotely. With Cloud-based publishing platform, we can edit the advertisement of each LED screen separately on one device anytime anywhere. Truly professional screen manager.
