Pixel Pitch: 3.9mm/4.8mm/5.9mm/6.2mm
Panel Size: 500x500x75/500x1000x75mm
Brightness: >5500nits
Material: Die-Casting Aluminum
Application: Indoor&Outdoor Rental Application

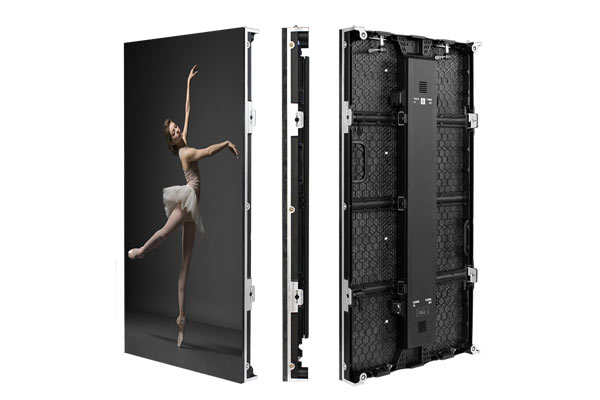

Ultra thin panel frame, super light weight and curved design make ST series the most popular LED equipment for stage rental, corporate event, exhibition, wedding, horse racing etc.
Die-Casting aluminum panel, only 13kg/panel, 75mm depth, over 60% lighter and 50% thinner than traditional product. Which creates a positive effect on calucation of weight capacity and transportation.
Incomparable User-Catering Design
Bigger panel size saves installation time and labor cost. CNC high-precision technology greatly reduce tolerance to achieve seamless screen connection. Fast locks ensuring quick installation and dismantle. External status indicator gives clearer clue for inspection and error detection.
500x500mm and 500x1000mm panels can be installed in one screen to save installation time. Two panel sizes will create more possibility to match required screen size.
Arc Splicing Design
Support -15 to +15 degree curved installation. More possibilities to upgrade stage decoration.
Perfect magnetic modules for front service. Special service tool enables the module replacing work safe and easy. No worry any falling or break.
Excellent Detail Design
Each panel corner is after chamfering, protecting the user from accidental damage.
Some hidden heat radiation holes are designed at the bottom of module to make heat radiation much uniform, so as to obtain better color consistency. Die-Casting aluminum panel enables nice heat dissipation and guarantees zero-defect operation.
High IP Level Design
Waterproof rate of IP65 makes sure the screen all-weather operation. Strong weather adaption brings more business opportunities.
