24V 3A 72W Desktop Power Supply XSG2403000
Posting date : Jul 13, 2018
Membership
Free Member Scince Jul 10, 2018
FOB Price
20
Min. Order Quantity
1
Supply Abillity
5000ps
Port
ShenZhen
Payment Terms
T/T
Package
white box
Keyword :
Category
Contact
Willy
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
XinSu
Model Number
XSG2403000
HS-CODE
8548-90
Package & Delivery Lead Time
Package
white box
Specifications

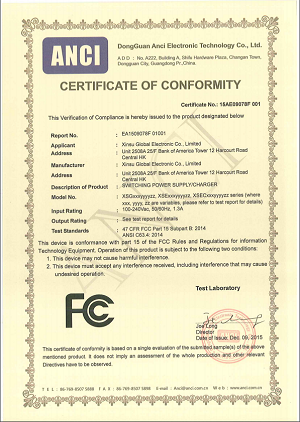

Type of Certification
FCC
Reference no.
15AE09078F001
Name.
ANCI
Start Date (validity period)
2015-12-09
End Date (validity period)
0000-00-00

Detailed Description

24V 3A 72W Desktop Power Supply XSG2403000

Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 2.5A
Inrush current: 35A Max/240V
Efficiency: >88%
No load input power <0.21W
Leakage current: <0.25mA/240V
DC output Output voltage: 24V
Output voltage tolerance: 5%
Rated output current: 3A
Output current: 0~3A
Ripple and noise: <120mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years
