500W 3D Laser Cutting Machine for 5mm carbon steel & 3mm stainless steel processing
0 likes
China [CN] 500W 3D Laser Cutting Machine for 5mm carbon steel & 3mm stainless steel processing

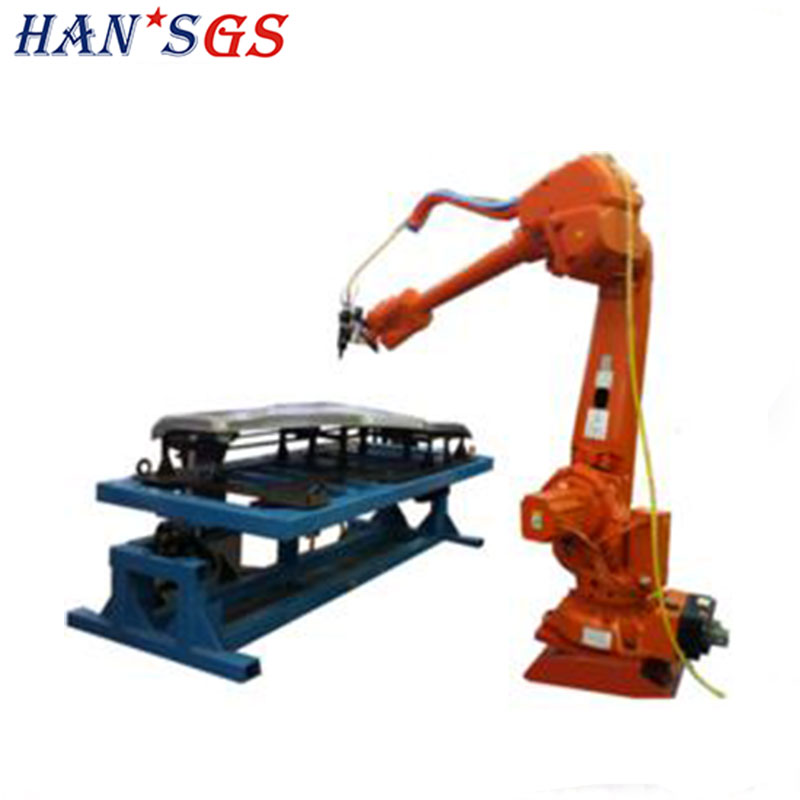

GS-KR series robot cutting workstation consists of fiber laser source (include laser power supply, water chilling unit, transmission fiber, laser guidance system and so on),laser cutting head (include follow-up sliding table) and KR30HA robot produced by KUKA.
KUKA-KR30HA Parameter:
|
Project |
Specifications |
|
Arm radius |
2033 mm |
|
Axis number |
6 |
|
Rated load |
30 kg |
|
Repeated positioning accuracy |
±0.05 mm |
|
Repeat trajectory accuracy |
±0.16 mm |
|
Weight |
665 kg |
|
Working temperature |
10-55℃ |
|
Protection level |
IP64 |
|
Power |
7.3 kVA |
Installation requirements:
|
NO. |
Project |
Name |
Requirement |
Remarks |
|
1 |
Distribution |
Laser source |
500W~2KW |
The total capacity is not less than 20KVA |
|
Water cooling |
1.5KW |
|||
|
Robot |
10KW |
|||
|
Other |
3KW |
|||
|
Three phase voltage stability |
380V±5% |
|||
|
Three phase power imbalance |
<2.5% |
|||
|
landing |
<4Ω |
|||
|
2 |
Water |
Water in cooling machine |
De ionized water 25L |
|
|
3 |
Gas |
Cutting gas |
N2>99.5% bottles |
Because of the different processing parameters of different materials. |
|
O2>99.5% bottles |
||||
|
Air pressure not less than 1.0MPA |
||||
|
4 |
Working environment |
Temperature |
5-45°C |
|
|
Humidity |
<90% No condensation |
|
||
|
Site area |
7Mx7M |
|
||
|
Surrounding environment |
Ventilation, no strong electromagnetic interference |
|
||
|
Foundation requirements |
Near the source, the ground carrying capacity of at least 2000kg/m2, the ground roughness 5mm. The cement layer is not less than 350mm, the label is not less than 425# |
There is a need to shock the earthquake source foundation |
||
|
5 |
Board |
Stainless steel, carbon steel,with good surface quality |
|
|
Laser source
World advanced fiber laser, IPG(500W~2KW),Its performance is stable, the overall quality of the product is a security.
Cutting head
This scheme uses RDB0135 LASERMECH (Recommend), a non-contact, highly automatic tracking system. With the expansion of the beam and focusing on the two lens cavity, can facilitate the quick replacement of the lens. At the same time, it integrates with the moving system and cooling unit and protection unit.
Control system
SIEMENS S7-1200 control system, the total control, S7-1200, the use of flexible, powerful, can be used to control a variety of devices to meet your automation needs. The S7-1200 design is compact, flexible, and powerful. The combination of these features makes it a perfect solution to control all kinds of applications.
Machine feature
GS_KR series robot cutting workstation consists of fiber laser source (include laser power supply, water chilling unit, transmission fiber, laser guidance system and so on),laser cutting head (include follow up sliding table) and robot produced by world famous robot supplier.Robot laser cutting machine produced by our company is a CNC laser equipment. It consists of world advanced fiber laser source, imported fiber cutting head from America, light follow up sliding table and 6 axis robot. It Highly integrated laser cutting technology, precision machinery manufacturing and CNC technology. It’s mainly used for carbon steel, stainless steel, spring steel, alloy steel, aluminum alloy and other metal materials such as cutting and forming with the characteristics of high speed, high precision, high efficiency, high performance price ratio and so on.And it’s widely used in aerospace,motorcycle manufacturing,engineering machinery,textile machinery,agricultural machinery, elevator manufacturing, automobile manufacturing, metal manufacturing, IT and other industries of metal plate cutting
Our service:
Quality Guarantee System:
The integral design will be accomplished by us within 30 working days after the contract assignment. Procurement of components and manufacturing of casting piece will be priory to ensure the delivery time.
With ISO 9001 quality system request, we’ll keep the coordination and restrict standard in all manufacturing process including rigid inspection for raw material selection and procurement. Also the manufacturing process is under inspection and control to prevent the unqualified product flow into next manufacturing step so as to ensure the delivery time and quality of all our products delivered.
Inspection of our design, manufacturing, assembly, test and installation by customer is welcome at anytime, and we will always offer our cooperation.
