Full Automatic Fiber laser cutting machine for 1mm 2mm 12mm 15mm steel plate cutting
0 likes

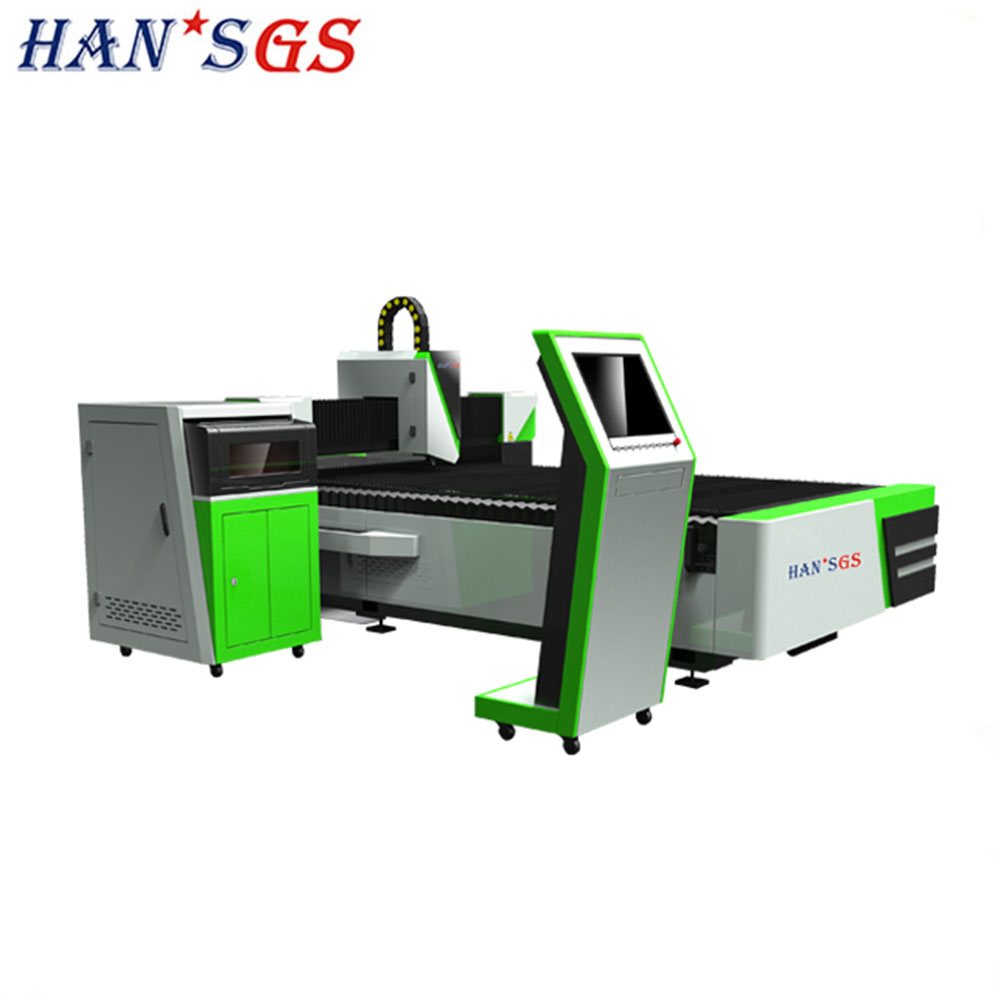

China [CN] GS-LFD3015 series Carton steel Fiberlaser cutting machine adopts IPG/ROGIN fiber laser source, HIWIN linear guide drive, Presitec/Ray Tools laser cutting head, advanced control system and all of the key parts are originally imported. With Gantry CNC machine and high strength welding body which is precision machining and high temperature annealing by large CNC milling machine. The special processed aluminum beam is with high strength, light weight and good rigidity.
Parameters CNC metal sheet fiber laser cutting machine
|
Model |
GS-LFDS3015 |
|
|
Output power of laser source |
500-3000W |
|
|
Cutting area (L*W) |
3000mm × 1500mm |
|
|
Z axle stroke |
150 mm |
|
|
Max. cutting speed |
20m/min |
|
|
Max. positioning speed |
120m/min |
|
|
Platform size/Max height of feeding material |
4250x2500mm/more than 120mm |
|
|
Cooling |
water cooling |
|
|
Laser wavelength |
1070nm |
|
|
Min. cutting gap |
≤0.1mm |
|
|
Positioning accuracy of X, Y and Z axles |
±0.03 mm |
|
|
Repeated positioning accuracy of X, Y and Z axles |
±0.02 mm |
|
|
Thickness of cutting material(according to material) |
0.2-8mm |
|
|
Drive model |
Imported servo motor |
|
|
Voltage |
380V,50/60Hz |
|
|
Temperature |
5ºC-45ºC |
|
|
Continuous working time |
24 Hours |
|
|
Machine weight |
About 2950Kgs |
|
|
Outer dimension |
4300mm x 2280mm x 1500mm |
|
|
Total protection level of power supply |
IP54 |
|
Laser Source Power/Cutting ability
| Laser Source Power/Cutting ability | CS(mm) | SS(mm) | Alumium(mm) | Brass(mm) | |
| 500W | Max cutting thickness | 8 | 4 | 2 | 2 |
| Max processing thickness | 5 | 3 | |||
| 700W | Max cutting thickness | 10 | 6 | 3 | 3 |
| Max processing thickness | 6 | 5 | |||
| 1000W | Max cutting thickness | 14 | 8 | 4 | 4 |
| Max processing thickness | 8 | 6 | |||
| 1500W | Max cutting thickness | 16 | 10 | 6 | 5 |
| Max processing thickness | 12 | 8 | |||
| 2000W | Max cutting thickness | 20 | 12 | 8 | 6 |
| Max processing thickness | 16 | 10 | |||
| 2500W | Max cutting thickness | 22 | 12 | 10 | 8 |
| Max processing thickness | 20 | 10 | |||
| 3000W | Max cutting thickness | 25 | 14 | 12 | 8 |
| Max processing thickness | 22 | 12 | |||
Advantages of Carton steel Fiber laser cutting machine:
1. Low cost: 30% photo-electric conversion efficiency, low power consumption.
2. Free maintenance: without reflective lenses, no need to adjust laser route.
3. High speed: with IPG/ROFIN laser source, hing speed running.
4. High cutting quality: less deformation, flat and elegant surface.
5. High precision: Adopt high precision drive structure with imported service motor, ±0.03mm positioning precision.
6. Strong software: any shape, easy and convenient operation.
7. Compacted structure, small occupied area.
8. Environmental protection, longer lifetime.
