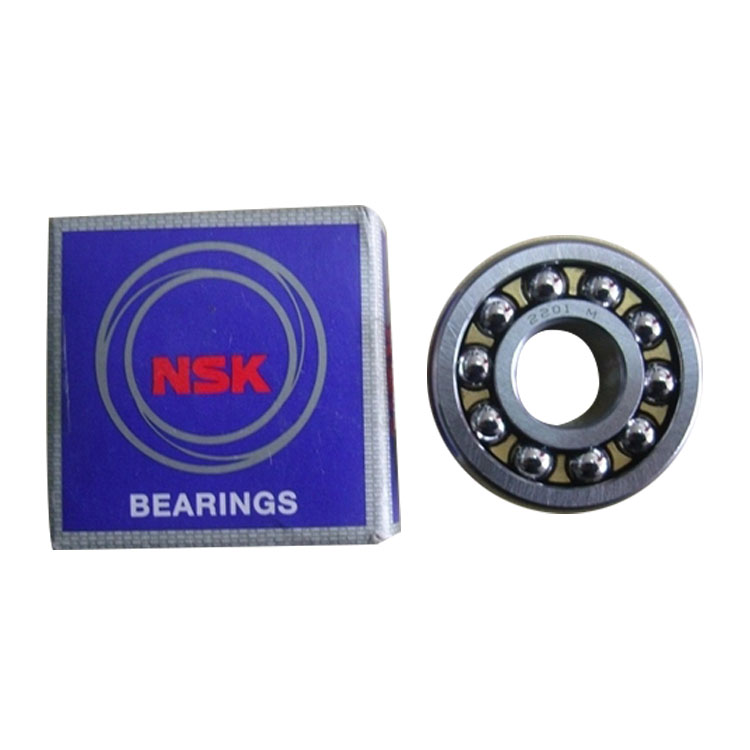

Original Japan Brand NSK 1210 Self Aligning Bearing Ball

self aligning bearings ball are constructed with the inner ring and ball assembly contained within an outer ring that has a spherical Self-aligning ball bearing has two rows of balls. There is a common spherical raceway whose center of curvature accords with the bearing center. Even though the inner race, the steel balls and the holder incline relative to the outer race, the bearing can rotate. So the bearing is self-aligning, and will not be affected by shaft misalignment relative to the bearing box. The self-aligning ball bearing is mainly subject to radial load. It can also be subject to a minimum of axial load, but it usually cannot be subject to pure axial load. This construction allows the bearing to tolerate a small angular misalignment resulting from deflection or improper mounting.

Product Specification:

• Model NO.:1210
• Inner diameter:50mm
• Outer diameter:90mm
• Thickness:20mm
• Type:self aligning bearing
• Brand:NSKCompany: Shenyang Sharjah Bearing Co., Ltd.Email:vyse.c@cqpbearing.comSkype:008613130506319WhatsApp:008613130506319Wechat:008613130506319

  Original Japan Brand NSK 1210 self aligning bearing ball

  NSK bearing introduce NSK has developed numerous new types of bearings to meet the needs of users all over the world and made great contributions to the development of industry and technology. At the same time, NSK, with its technological advantages in precision machining, has continuously developed electrical appliances, motors, energy-efficient bearings, dental medical bearings, automotive components, precision mechanical components, and other sophisticated products, and has been developing diversified businesses in the field of electronic applications.

  The related models of self aligning bearing:

  Bearing No.		Boundary Dimensions(mm)			Approx. Mass(kg)
  Cylindrical Bore	Tapered Bore	d	D	B
  1201	1201k	12	32	10	0.039
  1202	1202k	15	35	11	0.048
  1203	1203k	17	40	12	0.072
  1204	1204k	20	47	14	0.120
  1205	1205k	25	52	15	0.140
  1206	1206k	30	62	16	0.220
  1207	1207k	35	72	17	0.230
  1208	1208k	40	80	18	0.415
  1209	1209k	45	85	19	0.465
  1210	1210k	50	90	20	0.525
  1211	1211k	55	100	21	0.705
  1212	1212k	60	110	22	0.900
  1213	1213k	65	120	23	1.150
  1214	1214k	70	125	24	1.300
  1215	1215k	75	130	25	1.410
  1216	1216k	80	140	26	1.730
  1217	1217k	85	150	28	2.090
  1218	1218k	90	160	30	2.550
  1304	1304k	20	52	15	0.165
  1305	1305k	25	62	17	0.255
  1306	1306k	30	72	19	0.358
  1307	1307k	35	80	21	0.510
  1308	1308k	40	90	23	0.715
