FAG B7026 E T P4s UL Super Precision Bearings B7026 Angular Contact Ball Bearing
0 likes
Germany [DE] FAG B7026 E T P4s UL Super Precision Bearings B7026 angular contact ball bearing is a high precision and long using time bearing,it's popular in the market,ready stock.Sizes are:ID--130mm,OD--200mm,Thickness--33mm.Features of skf bearing catalog: 1.Load capacities are higher than deep groove ball bearing of same dimensions.2.Used for bearing radial-axial combined loads or pure thrust loads.3.Low operating friction and high limiting speed.

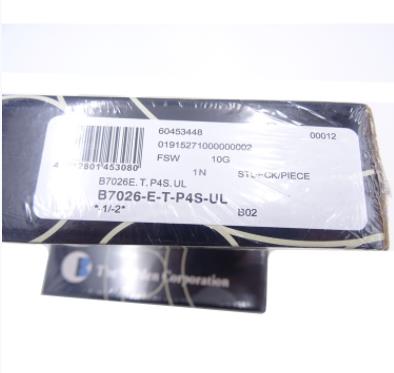

FAG B7026 E T P4s UL Super Precision Bearings B7026 angular contact ball bearing
The related models of FAG B7026 E T P4s UL Super Precision Bearings
| Model | d | D | H | m |
|---|---|---|---|---|
| B7020-C-T-P4S | 100 mm | 150 mm | 24 mm | 1.24 KG |
| B7021-C-T-P4S | 105 mm | 160 mm | 26 mm | 1.61 KG |
| B7022-C-T-P4S | 110 mm | 170 mm | 28 mm | 1.95 KG |
| B7024-C-T-P4S | 120 mm | 180 mm | 28 mm | 2.08 KG |
| B7026-C-T-P4S | 130 mm | 200 mm | 33 mm | 3.16 KG |
| B7028-C-T-P4S | 140 mm | 210 mm | 33 mm | 3.35 KG |
| B7030-C-T-P4S | 150 mm | 225 mm | 35 mm | 4.04 KG |
| B7032-C-T-P4S | 160 mm | 240 mm | 38 mm | 5.04 KG |
| B7034-C-T-P4S | 170 mm | 260 mm | 42 mm | 6.52 KG |
| B7036-C-T-P4S | 180 mm | 280 mm | 46 mm | 8.79 KG |
| B7038-C-T-P4S | 190 mm | 290 mm | 46 mm | 9.2 KG |
| B7040-C-T-P4S | 200 mm | 310 mm | 51 mm | 11.6 KG |
| B7044-C-T-P4S | 220 mm | 340 mm | 56 mm | 15.7 KG |
| B7048-C-T-P4S | 240 mm | 360 mm | 56 mm | 16.8 KG |
| 7052 C | 260 mm | 400 mm | 65 mm | 28.5 KG |
| 7056 C | 280 mm | 420 mm | 65 mm | 30 KG |
| 7060 C | 300 mm | 460 mm | 74 mm | 42.5 KG |
| 7064 C | 320 mm | 480 mm | 74 mm | 44.5 KG |
| 7068 C | 340 mm | 520 mm | 82 mm | 61.5 KG |
| 7072 C | 360 mm | 540 mm | 82 mm | 62.5 KG |
