120kw/150kva deutz water cooled diesel generators powered by weichai deutz engine

Product

120kw/150kva deutz water cooled diesel generators powered by weichai d...

Posting date : Feb 25, 2018

Click enlarge Image

Membership

Free Member Scince Feb 24, 2018

FOB Price

15000

Min. Order Quantity

Supply Abillity

100

Port

Qingdao

Payment Terms

T/T,L/C

Package

Wooden box

Keyword :

Generator set

Category

MACHINERY & ELECTRICAL | Electrical | Electric g | Electric g

Contact

Jack

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

weichai deutz

Model Number

MC150DE

HS-CODE

8502-12

Package & Delivery Lead Time

Package

Wooden box

Delivery Lead Time

15 days

Detailed Description

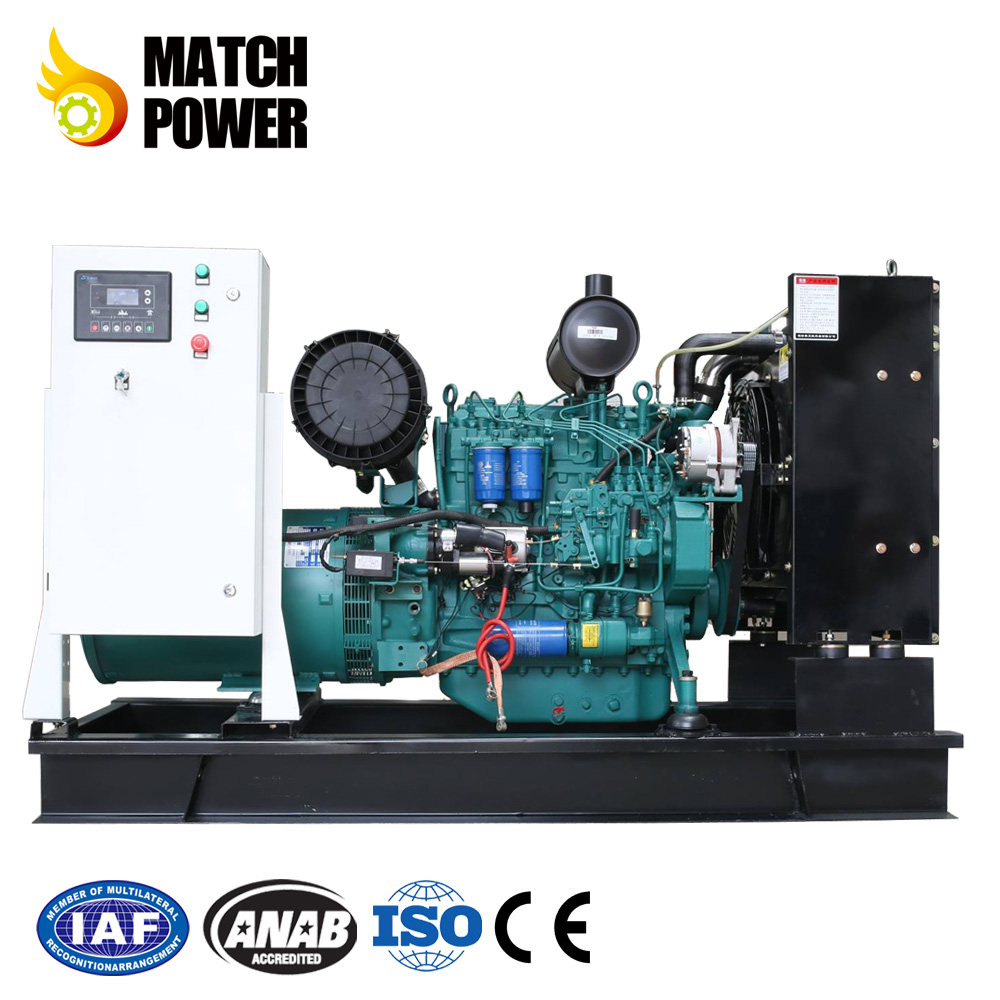

MATCH diesel generator set

MATCH produces 8KVA-3300KVA diesel generator sets and low-voltage switchgear assemblies and full range of services including the unit instillation, full-automatic distribution, generator room environmental engineering, unit maintenance, spare parts supply, etc. The units produced by MATCH all use international brand engines and generators with excellent quality. Through ten years of product development and technology accumulation, Lega’s products gradually become more mature. In order to meet the different needs of customers worldwide, we will renovate continuously technologies and improve products.

Feature and advantages

Features	Advantages
Compact structure and mature design	Beautiful appearance and small size
Good cooling system	Adapt to various complex environment
LED digital display and modular control	User-friendly design and simple operation
Multiple safety measures	People-oriented and safety first
Rigorous factory test	Quality assurance
Attach noise protection box according needs	Detachable box to facilitating maintenance
Complete accompanying data	Convenient installation, operation and maintenance

GENERATOR SETS SPECIFICATION

Prime Power 120kw/150kva

Standby Power 132kw/165kva

Voltage available 380/220v, 400/230v, 415/240v

Frequency 50HZ

Power factor 0.8

Quality Standards

Our diesel generating sets meets the following standards:

GB/T2820, GB1105, YD/T502, ISO3046, ISO8528, ISO8525-3-5-6.ISO9001-2008

Factory Test

Each our generating sets must be got through 1 hour load test for running 0%, 25%, 50%,75%, 100% and 110% load before dispatch, All protective devices, control functions are simulated and it’s system checked, proved and then passed for dispatch. A test certificate can be provided upon request.

Genset Model	MC150DE
Motor	WP6D152E200
Alternator	STAMFORD OR LEROY SOMER
Speed Control type	Electronically
Phase	Three
Fuel Tank Capacity	8 hours at 100% load
System Voltage	24V
Frequency	50HZ
Cooling air flow	10800m3/h
Combustion air volume	639.3m3/h
Exhaust gas flow	1799m3/h
Exhaust Temperature	480℃

ENGINE SPECIFICATION

Maximum output(kw)	138KW(50Hz)
Number of Cylinders	6
Aspiration	Turbocharged & Charge Air Cooled
Cycle	4
Fuel Type	Diesel
Combustion Type	Direct Injection
Cooling Type	Water cooled
Bore	138mm
Storke	152mm
Displacement	7.15L
Compression Ratio	19:1
Lubrication Capacity	20 liter
Coolant Capacity	23.1liter

FUEL CONSUMPTION	1500RPM
	L/hr
Standby Power	40.5
Prime Power	38.5
75% Prime Power	29.8
50% Prime Power	19.6

ALTERNATOR SPECIFICATION

Insulation	Clase"H"
Execitation Type	Self-excitation or PMG
Protection class	IP23

Mecc alte, Marathon, Faraday,Engga available

Company Information

Weifang Matches Power co., LTD (MATCH POWER for short), Founded in 2000, manufactures diesel generators, integrating assembling, sales and maintenance service. The company is located in Shandong Fangzi City Clear pool street, with an area of 200000 square meter, over 900 employees and an annual sales of over RMB 500 million. Its products are mainly used as backup power or emergency power in many important fields, including highways, railways, mansions, hotels, mines, army, airports, hospitals, factories, and telecommunication and financial systems, etc. With modernized producing facility of generator unit and a strong professional technical team, taking “Leading Technologies, Innovative Products, Customer Service” as its responsibility, MATCH POWER has established long-term cooperative relations with enterprises such as CUMMINS, PERKINS, DEUTZ, DOOSAN, WEICHAI,STAMFORD, LEROY-SOMER, MARATHON. It has developed all types of diesel generator units from 3 to 2400 KW, mobile power stations, lighting tower, low voltage control system, and paralleling system, taking a lead among domestic peers. MATCH POWER has always put equal effort to domestic market and overseas market. In China, MATCH POWER has actively explored distributors, and set up office in Shandong Guangzhou,Changsha,Chongqing,wuhan and xian, etc. For overseas market, by implementing the international strategy of spreading MATCH products around the world, MATCH POWER has had its products sold in over 100 countries and areas including Europe, South-east Asia, Middle East, Africa, South and North America. MATCH POWER has been certified to German TUV, Canadian CSA, EPA, ISO 9001 and emission certification to enter European and American market.

FAQ

1.Warranty period?

1 year or 1000 operation hours whichever come first.

2. International Warranty Service?

Most of products enjoy the International Warranty Service,eg:Cummins, Perkins, Doosan,Deutz, Leroysomer, Stamford, Mecc alte ,Marathon and other world-famous brand, most of Chinese brand without International Warranty Service,but Lega power will offer after sales service,pls do not worried about it.

3. Payment terms?

a:By TT,30 % deposit,and 70% balance before dispatch

b:30% deposit by TT,70% balance by irrevocable LC at sight before dispatch.

c:100% irrevocable LC at sight

(LC issuing bank must be the top class bank,and LC should be approved by Sinosure)

4.Delivery time?

30 days after deposite or LC received,for genset with imported engine,the delivery is unstable,pls kindly contact with salesperson before order confirmed.

5.MOQ:

1 set for heavy duty geneators

30 sets for portable generators

For more questions,pls feel free to contact salesperson.
