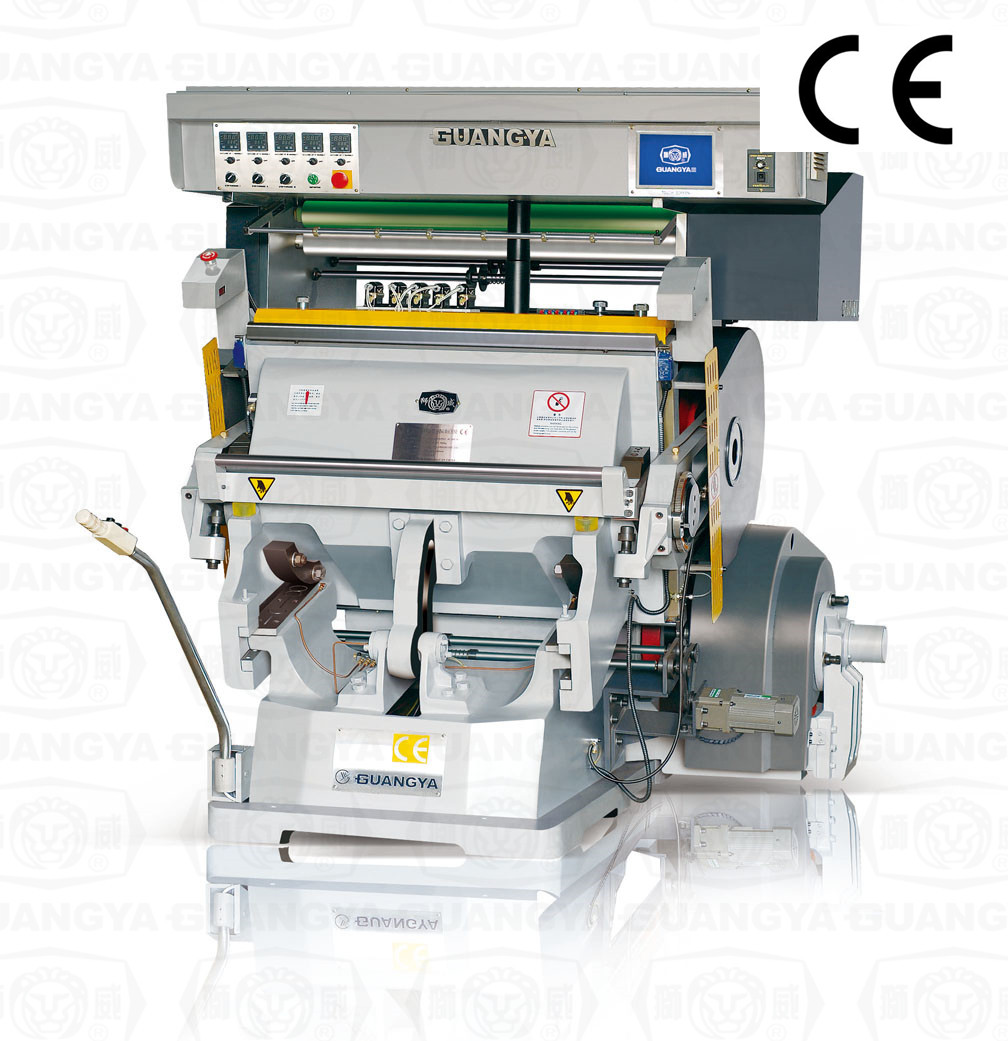

TYMC 1100 Manual Paper Hot Foil Stamp Printing Machine
0 likes
China [CN] TYMC 1100 Manual Paper Hot Foil Stamp Printing Machine
Applications
Our Electric Hot Foil Stamping And Die Cutting Embossing Machine By Manual is a piece of post press equipment primarily used in the package printing industry. It is suitable for thermo printing of various cigarette cases, wine boxes, cosmetics boxes, medicine boxes, photos, business cards, greeting cards, as well as calendars, book covers, logos, plastic products, gift boxes, and more.Features 1. TYMC series Electric Hot Foil Stamping And Die Cutting Embossing Machine By Manual is very versatile, with the functions of hot stamping, die cutting and concave-convex forming. 2. The display system with LCD greatly improves the productivity.3. Electric Hot Foil Stamping And Die Cutting Embossing Machine By Manual adopts PLC microcomputer control, stepper motor drive for reliable operation and convenient adjustment 4. Uniform, fast heating, low power consumption, constant temperature control, real-time temperature display functionAdvantages 1. Our hot foil stamping machine uses centralized lubrication pump system2. It adopts electrical components from world renowned suppliers 3. Strengthened construction ensures smooth operation and long service life.4. After hot stamping, the items are aesthetic, abrasion resistant, and bright i color.
|
Technical Parameter
|
|||
|
Model
|
TYMC 1100 Hot Foil Stamping Machine
|
||
|
Max. Effective plate area
|
1100*800 mm
|
||
|
Max. stamping size
|
1100*800 mm
|
||
|
Group of foil feeding
|
3
|
||
|
Max. foil feeding length
|
800 mm
|
||
|
Leepfrogging scope
|
0-99
|
||
|
Individual zones of heating plate
|
5
|
||
|
Power of heating plate
|
15 kw
|
||
|
Main motor power
|
5.5 kw 6 pole
|
||
|
Total Power
|
20.5 kw
|
||
|
Speed
|
23 sheets / min
|
||
|
Gross weight of machine
|
4900 kg
|
||
|
Overall machine dimensions
|
2080*1950*2200 mm
|
||
1. High quality electric partsOver half of the machine electric parts use high quality international brand which could keep the machine in very good condition, running smooth and stable.
2. Strong metal machine bodyA stronger body that made by high strength metal it could offer more capacity, that makes machine afford more cutting speed.
3. High Technical SensorComparing with the sensor from OMRON covered the machine body to keep safe of the equipment and operator.
4. Automatic Oiling SystemWe got a parts that specially for lube oil feeding, and yes, it would work automatically.
We believe " once you put your name on your equipment, forever people would remember it", CE, IEC, ISO 9001, we prepare everything that required, anyway Quality is the first core value of our company !!!
In last two decades, we have sent our machines to more than 80 countries. Middle East, Europe, Asian, Africa, South and North America, people from various countries, language in different types, we met them and won their friendship. With us, your money is safe, your business is safe !!!
