healthy and hygienic food grade seed oil extraction machine
Posting date : Feb 01, 2018
Membership
Free Member Scince Jul 03, 2013
FOB Price
10000-1000000 USD
Min. Order Quantity
1 set
Supply Abillity
10 sets per month
Port
Qingdao/Tianjin
Payment Terms
T/T or other terms
Package
LCL,FCL or according to your requirements
Keyword :
Category
Contact
Sophia Zang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Doing
Model Number
seed oil extraction machine
HS-CODE
8479-20
Package & Delivery Lead Time
Package
LCL,FCL or according to your requirements
Delivery Lead Time
according to the capacity
Detailed Description
healthy and hygienic food grade seed oil extraction machine
1. Introduction of seed oil extraction machine
(1) Function: Leaching system is an oil extraction through soaking or spraying pre-pressed cake by a certain organic solvent. The principle of this part is the different solubility of solvent.
(2) Use range: Solvent extraction fits for pre-press extraction of high-oil-content materials and direct once time extraction of low-oil-content materials.
(3) Main parts: The extraction series includes rotary extractor, toaster, 1st evaporator, 2nd evaporator, stripping tower, condenser, etc.

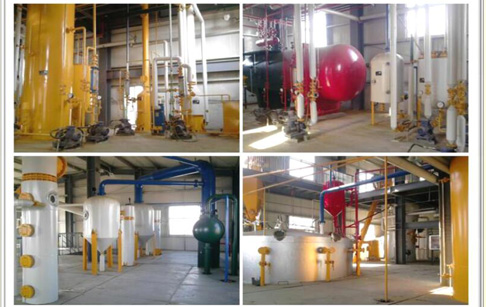

seed oil extraction machine
 2. Main parts of seed oil extraction machine
(1) Solvent pumps: continuously spray solvent to the rotary-type extractor
(2).Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be dissolved in solvent(form miscella). After processing, you can get wet meal and miscella (mixed oil).
(3). DTDC: usd to separate the solvent from the wet meal.
(4). Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , and then add 10% saline water to it. The phospholipid and impurities in the miscella will react with the saline wter, at last the reactant precipitate, reaching the goal of purifying.
(5). Miscella tank 2nd: the purified miscella will be pumped into it.
(6). Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.
(7). condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.
 3. Main Process of seed oil extraction machine
(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.
(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.
(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.
(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.
 seed oil extraction machine

4 . Advantages of seed oil extraction machine
(1) High oil yield , obvious economic benefit .
(2) Residual oil rate in the dry meal .
(3) Improving the quality of the meal .
(4) Low processing cost , high labor productivity.

If you are interested in our seed oil extraction machine or other products,pls be free to contact us.
Contact: Sophia Zang
Phone: +86 135 2662 7860
Whatsapp: 0086 135 2662 7860
Skype: sophia.zang1
Website:   www.doinggroup.com
