High efficiency palm oil processing plant
Posting date : Jan 24, 2018
Membership
Free Member Scince Jan 19, 2018
FOB Price
35000-350000
Min. Order Quantity
1set
Supply Abillity
6set/Month
Port
qingdao
Payment Terms
T/T,L/C
Package
wooden case
Keyword :
Category
Contact
Sophia,zang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
palm oil processing machine
Model Number
palm oil processing plant
HS-CODE
1511-90
Package & Delivery Lead Time
Package
wooden case
Delivery Lead Time
35days after deposit
Detailed Description
Henan Doing Company provides a range of palm oil processing plant to extract oil from fresh fruit bunches of oil palm. The following is the typical palm oil processing process which might be useful for new investors of palm oil production business.

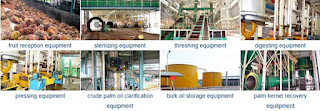

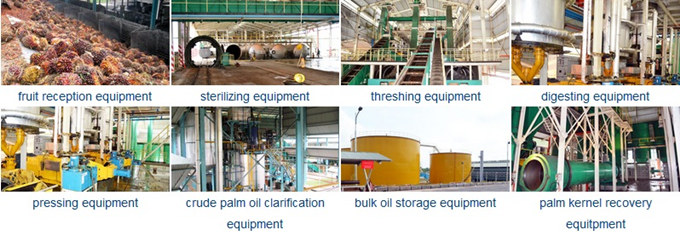

Main Machinery for Making Palm Oil: Steriliser, digester, expeller,clarification machine and so on.
The palm oil processing plant involves a series of processes starting with harvesting fresh fruit bunches from the plantations and ending with crude palm oil storage. Through sterilizing, threshing, digesting and expelling, crude palm oil will be pressed out in palm oil pressing plant (screw oil press). Each station of palm oil processing plant uses different methods and machines. After purifying and refining, the refined palm oil can be exported as a popular kind of healthy and edible oil. Browse through the details of palm oil processing plan in the following:
The process of palm oil processing plant:Raw Materials Storage Section of Palm Oil Processing Plant:
Collecting the ripe fresh palm fruit bunches from the plantation and transported by trucks, then pour the FFB into the discharge door after weighed by weighbridge.The discharge door has discharging channels, the upper and lower switches of the iron gate are controlled by pneumatic control system consists of air compressor and pneumatic control devices. Start the control valve to open the gate of the discharge door, then the palm fruits will fall into the fruit basket car or conveyor.
Sterilization Section of Palm Oil Processing Plant: sterilization is a process in palm oil processing plant that injecting 300KPa direct steam into to sterilizer to boil the palm fruit for about 60 mins.The purpose is to break the enzymes in fruit, and to avoid the increasing of the FFA content in oil. At the meanwhile, the high temperature will makes the fruits soften, it is easy for fruit threshing and kernel cracking. Also reducing the damage of kernel.
Threshing Section: Oil palm fruit accounted for about 60% of the whole fruit bunch, The purpose of threshing in palm oil processing plant is to separate the palm fruit from the FFB. The drum type thresher is the common machine used to separate the fruit. There is a horizontal turning machine inside of the threshing machine. The separated oil palm fruit is sent to the pressing section. Empty palm fruit bunches are transport to the yard from the other side of the thresher drum, or transported from the factory as palm plantation slipcover to recycling use, or burning directly as fertilizer for agricultural land.
Digesting&Pressing Section:Digesting is for breaking off the palm fruit, and with high temperature to soften the fruit and kills the bacteria. Sterilizing, threshing and digesting all help increase the palm fruit oil yield.Inside the digester, there are baffles and stirring arms, under the driving of the top motor, baffles break off the palm fruit and heat the palm fruit, so it can pressing oil easily.Pressing machine use hydraulic control system to adjust spacing between screws. So it is suitable for various palm fruit species and guarantee the oil yield. After pressing, the crude palm oil needs to be purified, the kernel and fiber impurities can be processed by further separation from the pressed cake. After drying, the kernel is stored for deep process, and the separated fiber and shell are used as the boiler fuel for providing steam.
Oil Clarification Section:Advantages: Use latest technology; Guarantee the oil quality; Reduce palm oil processing plant investment; Lower oil loss.The purified palm oil can be directly sold or deeply refining. After clarification, the industrial sewage will be sent into effluent pond. Then the residual sludge can be used as the fertilizer. The whole palm oil processing process is high automatic, environment friendly and energy- saving.
Palm Kernel Recovery Section of Palm Oil Processing Plant:Pressed cake is transported into the fiber separation air net and nut polishing drum for fiber&nut separating. There are some fiber covering outside palm nut. In order to get palm kernel, we should remove the fiber and shell first.The cracked palm nut adopts separating column system and special hydrocyclone equipment to separate palm kernel and shell according to their different density. So it has high separation rate.After separation, the shell is used as boiler fuel; the moisture content of separation kernel is less than 7% after drying through the hot air. Dried kernel can be sent to kernel storage silo or warehouse for storage.We are professional manufacturer of palm oil processing plant.We provide high quality palm oil processing plant as well as free and skilled technical guidance!Supply various kinds of palm oil processing plant solutions for palm oil mill plant depends on your customized demands. Premium equipment for palm oil extraction and crude palm oil refinery.
 Contact information:
Skype:  sophia.zang1
Phone:  +86-371-5677 1823
Mobile:  +86-135 2662 7860
