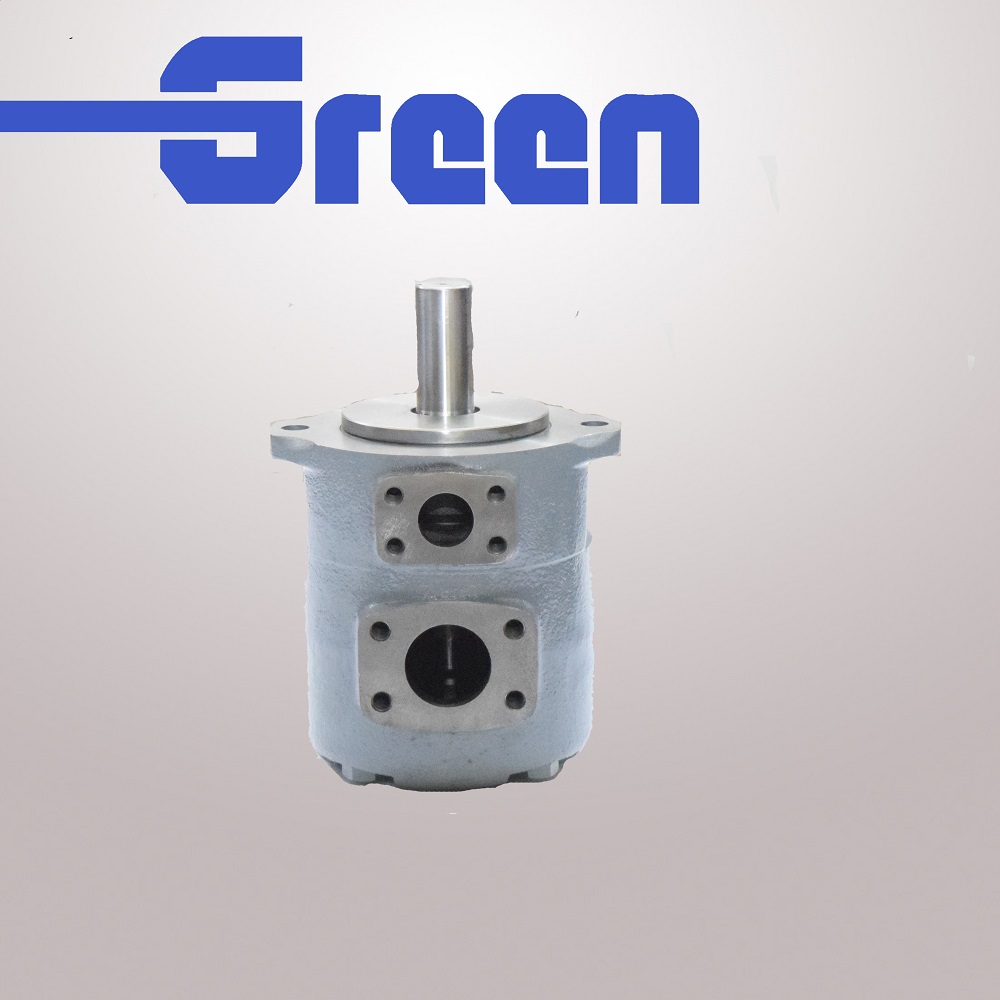

Tokimec SQP1 SQP2 SQP3 SQP4 hydraulic vane pump single pump

Product

Posting date : Jan 06, 2018

Click enlarge Image

Membership

Free Member Scince Mar 27, 2017

FOB Price

200

Min. Order Quantity

Supply Abillity

3000

Port

Shanghai

Payment Terms

T/T

Package

standard export package / wooden cases carton with foam inside

Keyword :

hydraulic pump

Category

MACHINERY & ELECTRICAL | Nuclear re | Pumps for | Rotary pos

Contact

Lara Cai

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

Green

Model Number

SQP1 SQP2 SQP3 SQP4

HS-CODE

8413-60

Package & Delivery Lead Time

Package

standard export package / wooden cases carton with foam inside

Delivery Lead Time

Shipped in 3 days after payment

Detailed Description

SQP Series Single Pumps

SQP series vane pumps are high pressure and high performance intra-vane pumps, which are specially developed for low noise working condition. They are widely applied in hydraulic system for machine-tools, presses, die casting machines, engineering, plastic injection moulding and other machineries, which call for lower noise.

Main characteristics:

Cartridge kits are entirely similar to those of VICKERS stable V series, which can be interchanged with cartridge kits of SQP series.
New configuration design gets an excellent performance in restraining pulsing and noise.
Strengthened pump housing design offers a better anti-vibration ability, which effect the remarkable low noise.

technical

(F3-)	SQP2	-21	-86	C	(F)	-(LH)	-18
Infuse front, oil intermiscibility	Series	Flow code	Shaft type	Outlet Positions	Installation type	Rotation	Design number
No-marking: Anti-wear hydraulic oil, Water glycol-fluid or water-oil emulsions F3:Phoshate ester fluid	SQP1	2,3,4,5,6,7,8, 9,10,11,12,14	Belt key straight shaft Heavy belt key straight shaft	(Viewed from shaft end of pump) A-Outlet Opposite inlet B- Outlet 90°CCW from inlet C- Outlet Inline with inlet D-Outlet 90°CW from inlet	No-marking Flange Mounting F-Foot Mountion	(Viewed form shaft end of pump) Left hand for counter clockwise No-marking-Right hand for clockwise	15
	SQP2	10,12,14,15, 17,19,21,25					18
	SQP3	21,25,30,32, 35,38,45
	SQP4	42,45,50,57, 60,66,75

Series	Displacement code	Geometric displacement ml/r	With antiwear hydraulic oil or phosphate eater fluid		With water glycol fluid		With water-oil emulsions		Min. Speed r/min
			Max.pressure Mpa	Max.speed r/min	Max.pressure Mpa	Max.speed r/min	Max.pressure Mpa	Max.speed r/min
SQP1	2	7.5	13.8	1800	13.8	1200	6.9	1200	600
	3	10.2
	4	12.8	17.2		15.9
	5	16.7
	6	19.2
	7	22.9
	8	26.2
	9	28.8
	10	31.0
	11	35.0
	12	37.9	15.7		13.8
	14	44.2	13.8
SQP2	10	32.5	17.2	1800	15.9	1200	6.9	1200	600
	12	38.3
	14	43.3
	15	46.7
	17	52.5
	19	59.2
	21	65.0
	25	79.2
SQP3	21	66.7	17.2	1800	15.9	1200	6.9	1200	600
	25	79.2
	30	95.0
	32	100
	35	109
	38	118
	45	140	13.8		13.8
SQP4	42	134	17.2	1800	15.9	1200	6.9	1200	600
	45	140
	50	156
	57	178
	60	189
	66	207
	75	237	13.8		13.8
