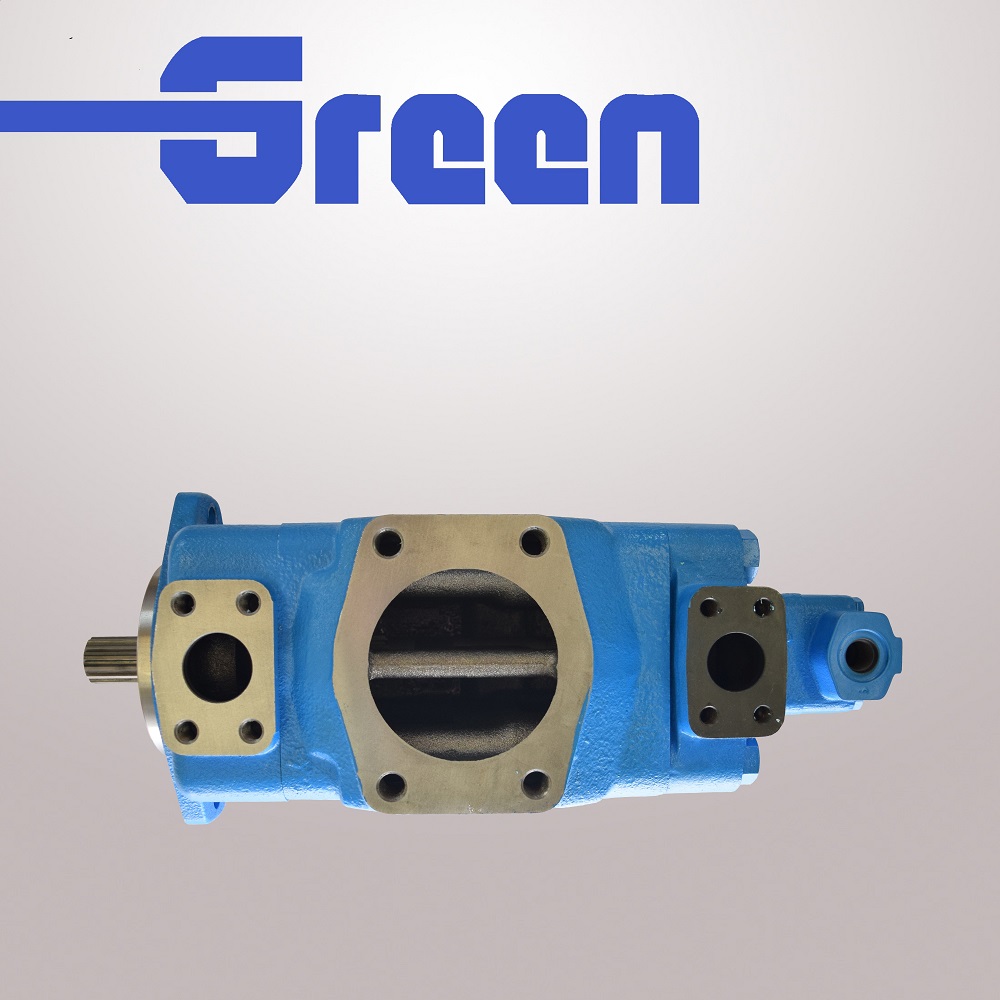

Vickers VQ series triple hydraulic vane pump

Posting date : Jan 06, 2018

Click enlarge Image

Membership

Free Member Scince Mar 27, 2017

FOB Price

200

Min. Order Quantity

Supply Abillity

3000

Port

Shanghai

Payment Terms

T/T

Package

standard export package / wooden cases carton with foam inside

Keyword :

hydraulic pump

Category

MACHINERY & ELECTRICAL | Nuclear re | Pumps for | Rotary pos

Contact

Lara Cai

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

Green

Model Number

2520VQSV10、3520VQSV10、3525VQSV10、4520VQSV10、4525VQSV10 2520VQSV20、3520VQSV20、3525VQSV20、4520VQSV20、4525VQSV20

HS-CODE

8413-60

Package & Delivery Lead Time

Package

standard export package / wooden cases carton with foam inside

Delivery Lead Time

Shipped in 3 days after payment

Detailed Description

Model designation

F3	-4525VQ	-S	-V10	-F	-17	-A	-8	-T
	Series	Flange moun -ting	Single pump Series	Cover options for V10 pump	shaft-end pump displace -ment code	Double pump port connections	SAE rated flow, center pump	Oulet port connection
F3:Fluoro rubber seals No standar seals	2520VQ	S-SAE	V10	S-Standard cover F-Integral flow control & relief valve P-Integral priority valve & relief	10,12, 14,15, 17,19, 21,25	A-All SAE 4-bolt flange AM-Metric 4-bolt flange	2,3,4, 5,6,7, 8,9,10, 11,12, 14	Standard cover S T K
	3520VQ				21,25, 30,32, 35,38, 45		10,12, 14,15, 17,19, 21,25
	3525VQ				21,25, 30,32, 35,38, 45		10,12, 14,15, 17,19, 21,25
	4525VQ				42,45, 50,57, 60,66, 45		21,25, 30,32, 35,38, 45
	4535VQ				42,45, 50,57, 60,66, 45		21,25, 30,32, 35,38, 45

-3

-S

-297

-B-C-A

-3

-D

-20

-R

SAE rated flow,cover end pump

Shaft seal

Shaft code

Outlet port positions

Controlled folw rate

Design number

Shaft rotation

1,2,3,

4,5,6,

S-Double sealBlank-Single seal

297-Splined shaft

See table1

Controlled flow rate,V10F&V10POmit for standard cover3-11L/min4-15L/min5-19L/min6-23L/min7-27L/min8-30L/min

Controlled flow rate,V10F&V10POmit for standard coverA-17barB-35barC-52barD-70barE-86barF-100barG-121barH-140barJ-155barK-175bar

20-29

(Viewed from shaft end of pump)L-Left hand(counter-clockwise)R-Right hand(clockwise)
