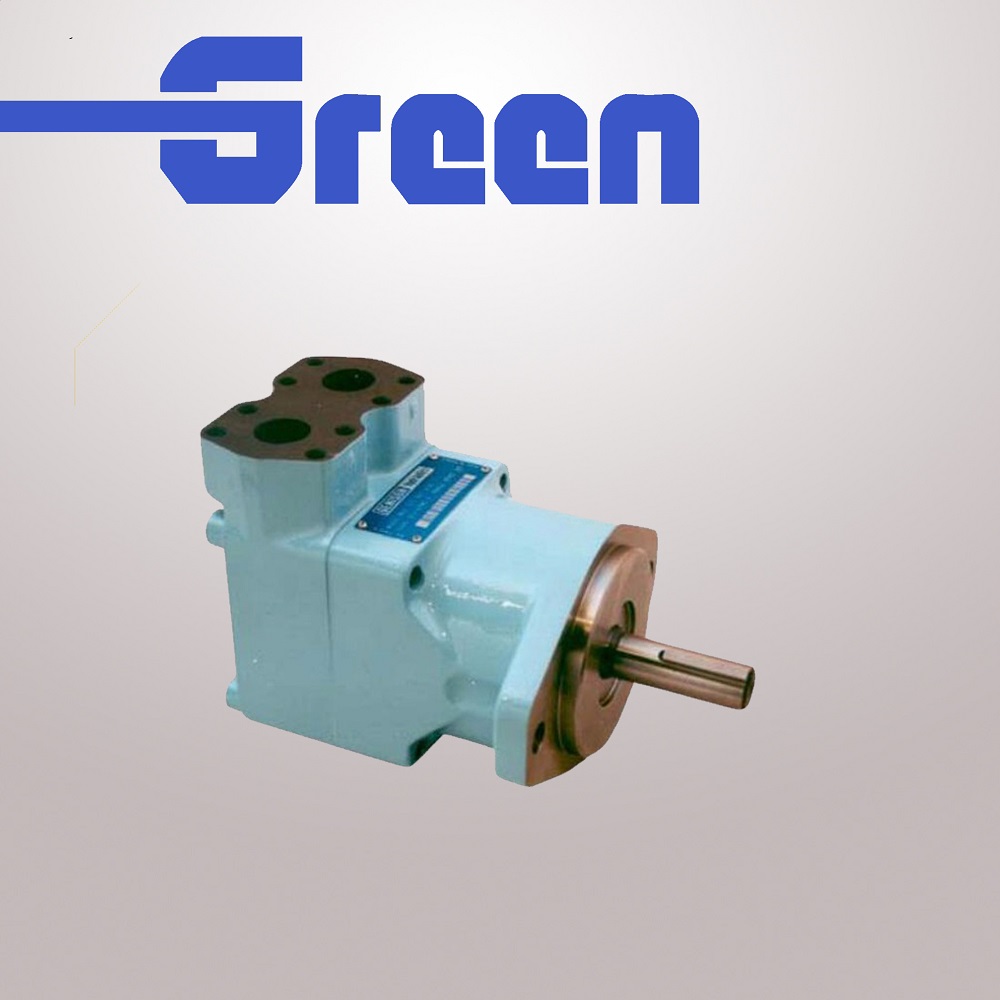

M4C denison hydraulic motor
0 likes
China [CN] Denison M4C Motor
Features
1. High starting torque efficiency
2. High volumetric efficiency low torque ripple at low speed
3. 2 and 3-speed versions available
4. Balanced design interchangeable rotating groups
5. Reversible rotation
6. Wide speed range ports and mounting
7. Fire resistant fluids
|
Series |
Size |
Displ. |
Theor. Displ. Vi |
Torque T |
Power at 100 Rev/min |
Torque T |
Power P |
|
n = 2000 RPM at p 2500 PSI |
|||||||
|
in3/rev. |
in.lbf/PSI |
HP/100 PSI |
in.lbf |
HP |
|||
|
M3 |
B B1 |
009 |
.56 |
0.08 |
0.014 |
174.3 |
5.8 |
|
012 |
.75 |
0.11 |
0.018 |
236.3 |
7.8 |
||
|
018 |
1.13 |
0.19 |
0.030 |
412.4 |
13.4 |
||
|
027 |
1.70 |
0.30 |
0.046 |
680.5 |
21.8 |
||
|
036 |
2.26 |
0.38 |
0.060 |
902.6 |
28.3 |
||
|
M4 |
C C1 SC SC1 |
024 |
1.49 |
0.24 |
0.037 |
535.4 |
17.0 |
|
027 |
1.72 |
0.28 |
0.043 |
619.5 |
19.7 |
||
|
031 |
2.11 |
0.33 |
0.054 |
768.0 |
24.1 |
||
|
043 |
2.84 |
0.45 |
0.072 |
1062.0 |
33.6 |
||
|
055 |
3.59 |
0.57 |
0.091 |
1318.6 |
41.8 |
||
|
067 |
4.34 |
0.69 |
0.111 |
1504.5 |
47.7 |
||
|
075 |
4.89 |
0.78 |
0.120 |
1752.2 |
55.6 |
||
|
D D1 SD SD1 |
062 |
3.97 |
0.63 |
0.102 |
1460.0 |
46.4 |
|
|
074 |
4.69 |
0.75 |
0.120 |
1770.0 |
56.2 |
||
|
088 |
5.56 |
0.88 |
0.139 |
2088.5 |
66.2 |
||
|
102 |
6.44 |
0.96 |
0.166 |
2336.3 |
74.1 |
||
|
113 |
7.12 |
1.13 |
0.185 |
2655.0 |
84.2 |
||
|
128 |
8.08 |
1.28 |
0.203 |
3009.0 |
95.5 |
||
|
138 |
8.81 |
1.40 |
0.222 |
3292.0 |
104.5 |
||
|
E E1 SE/SE1 |
153 |
9.67 |
1.54 |
0.240 |
3522.0 |
111.8 |
|
|
185 |
11.69 |
1.86 |
0.296 |
4283.2 |
136.0 |
||
|
214 |
13.55 |
2.16 |
0.342 |
5017.7 |
159.3 |
||
|
DC DC1 SDC SDC1 |
See M4C/C1/SC/SC1 and M4D/D1/SD/SD1 |
||||||
Click enlarge Image
