Manual Operation Tank Bottom Angle Valve
Posting date : Dec 14, 2018
Membership
Free Member Scince Jun 07, 2017
FOB Price
1200 USD/set
Min. Order Quantity
1 set
Supply Abillity
100 set/month
Port
Shanghai
Payment Terms
FOB/CIF
Package
wooden box
Keyword :
Category
Contact
Alice Wang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
FREE-VALVE
Model Number
FRFb545Y
HS-CODE
8481-80
Package & Delivery Lead Time
Package
wooden box
Delivery Lead Time
30days
Detailed Description

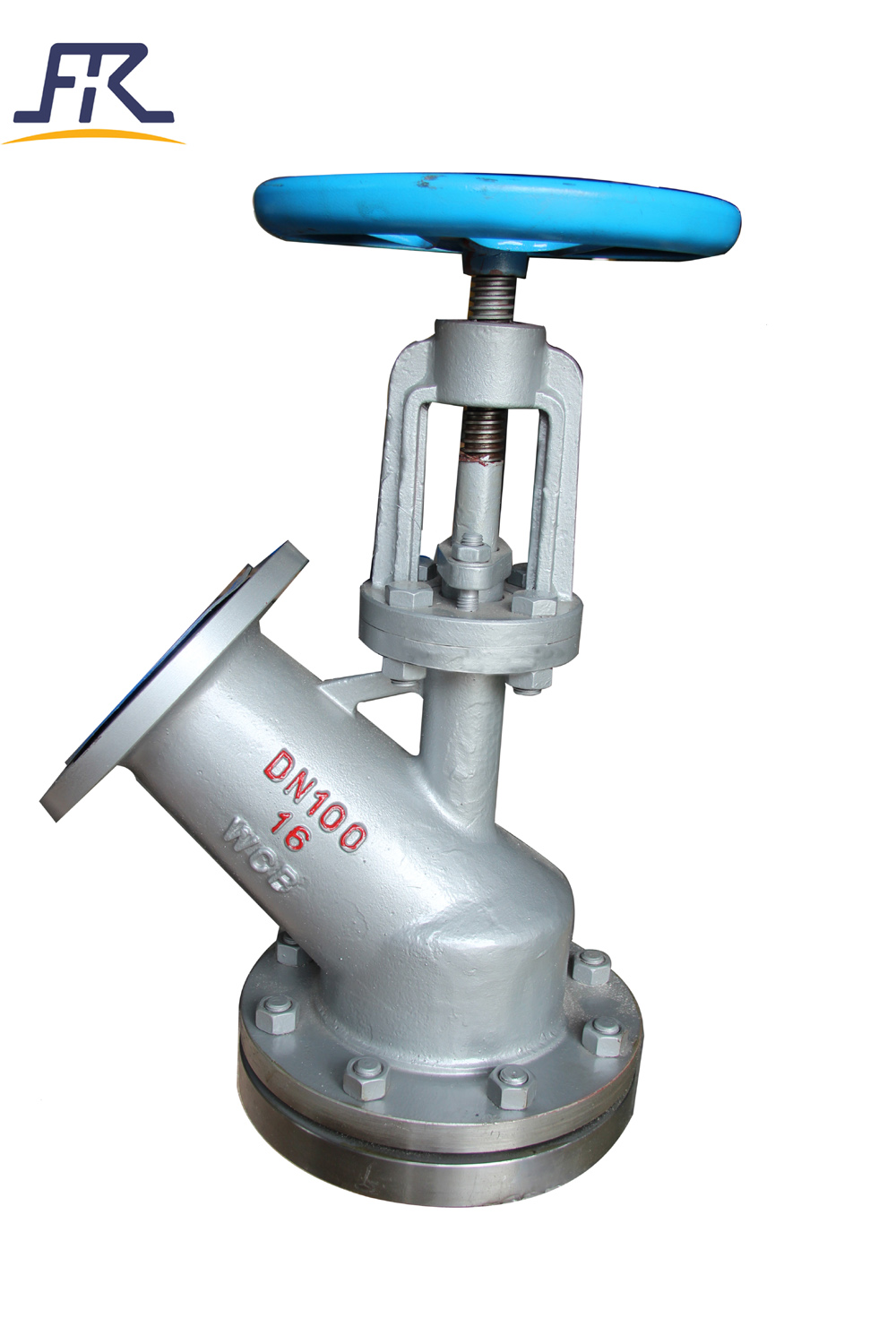

FREE-Valve’s manual operation Tank Bottom Angle Valves are designed for the convenient and fast discharging the material or samples from the bottom of the reactor,drain or feed vessel .The valve can be welded or installed on the vessel through the flange at the bottom of the valve , tank bottom angle valves are most commonly installed on feeding of vessels or dead space free draining and pipelines.
 Features
  1. This Range of manual control tank bottom angle valve is manufactured in integrated structure.
  2. Structures with disc opening into the tank and disc opening into the valve.
  3.  Available with 45° degree outlet angle in the body.
4.A rotation-resistant device is set up to ensure that the valve stem only has straight line motions and no rotation.
  1. The protection plate makes for the outstanding erosion resistance and corrosion resistance of the valve body.
  2. The sealing surface of the valve seat and the valve disc is made of over laying cemented carbide or painted with tungsten carbide. The auxiliary line sealing guarantee the reliability of the sealing performance.
Technical Parameters
Flange connection
ASME B16.5,GB/T9113
Design standard
ASME B16.34
Pressure Range
Class150~Class300
Size Range
DN50~DN 350, NPS2 ~NPS14
Material
carbon steel, stainless steel,
Connection type
Flange
Working Temperature
≤425℃
Operating Type
Pneumatic, manual, electric
Sealing surface material
Alloy,Carbide
Pressure test
GB/T13927, API598
 Applications
FREE-Valve’s Tank Bottom Angle Valves are widely used in the petrochemical industry,alumina industry,steel industry,polymer,mining industry,the pharmaceutical and fine chemicals, and mineral processing industries.
