Ceramic Ball Valves
Posting date : Dec 14, 2018
Membership
Free Member Scince Jun 07, 2017
FOB Price
1500 USD/set
Min. Order Quantity
1 set
Supply Abillity
100 set/month
Port
Shanghai
Payment Terms
FOB/CIF
Package
wooden box
Keyword :
Category
Contact
Alice Wang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
FREE-VALVE
Model Number
FRQ641TC
HS-CODE
8481-80
Package & Delivery Lead Time
Package
wooden box
Delivery Lead Time
30days
Detailed Description

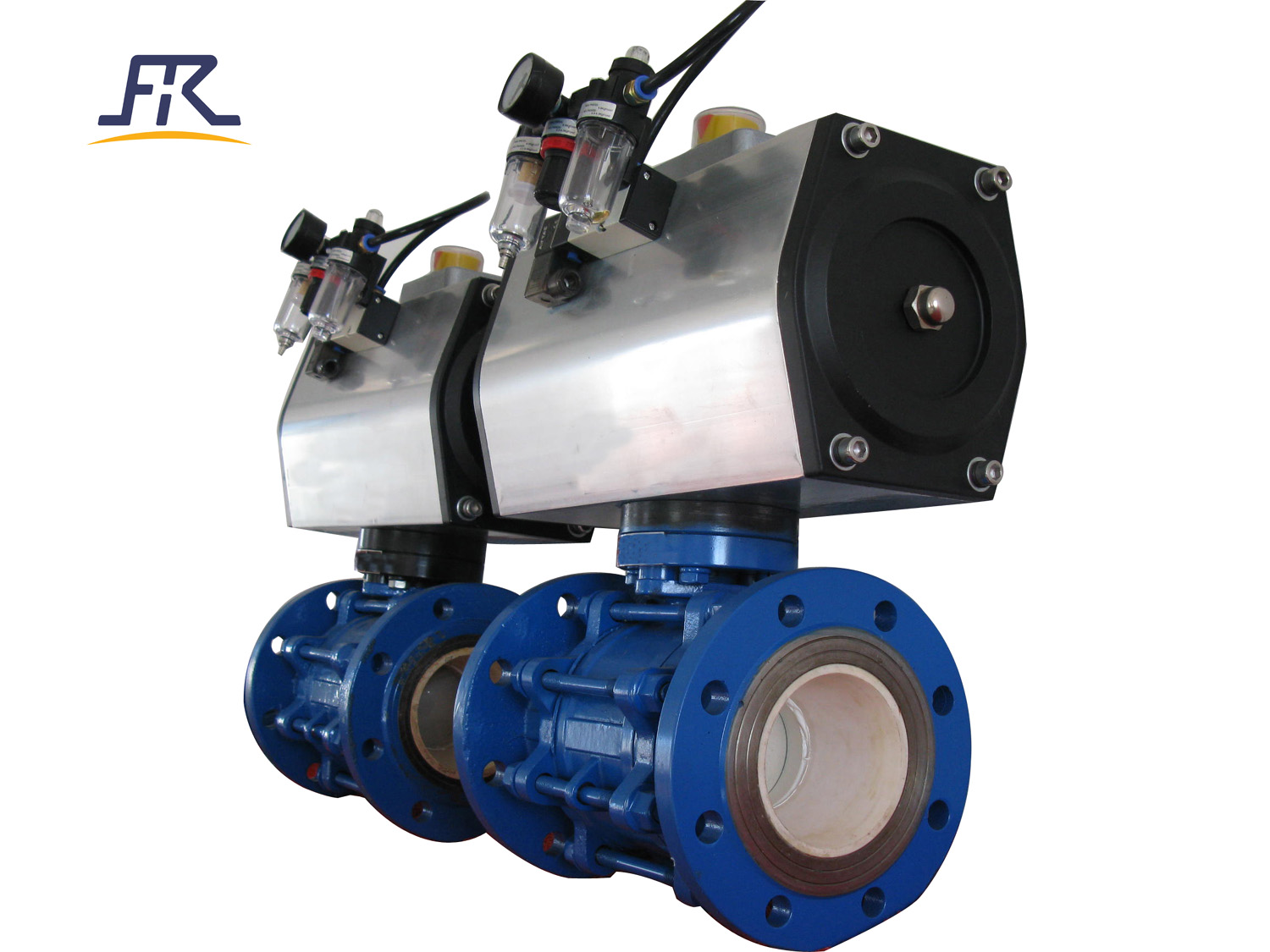

FREE- Valve’s Ceramic Ball Valves are designed with engineering ceramics   the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open & close function as well as a throttling control tasks in corrosive medium with abrasive solids content.
Features:
1.The hardness of the ceramic material can be higher than HRC80.
2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.
3.Customized actuation types are installed on the ceramic ball valve, the manual lever or gear box, as well as with pneumatic, electric and hydraulic actuators
4.Customized V type ceramic control valve is also available for us.
5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.
Technical Specification

The standards of flange ends
ASME B16.5,GB/T9113
Nominal Pressure
1.0MPa,Class150
Size Range
DN50~DN 200, NPS2 ~NPS8
Connection type
Flange
Working Temperature
≤200℃
Operating Type
Manual, Pneumatic and Electric
Sealing surface material
Engineering ceramic
Pressure test
GB/T13927, API598
Face to Face
GB/T12221, API609

Application
FREE- Valves Ceramic Ball Valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2  powder equipment
