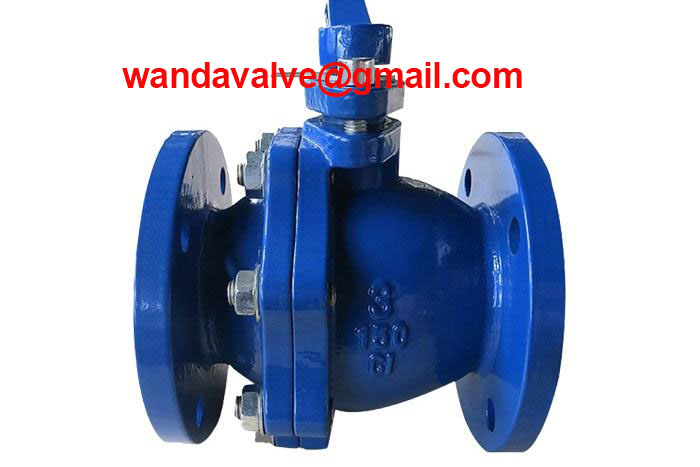

ANSI Cast Iron Ball Valve

본문 바로가기


Home > Product > ANSI Cast Iron Ball Valve
Product
ANSI Cast Iron Ball Valve
Posting date : Dec 01, 2017
Membership
Free Member Scince Dec 01, 2017
FOB Price
USD40
Min. Order Quantity
10
Supply Abillity
20000
Port
Wenzhou
Payment Terms
tt
Package
plywood case
Keyword :
Category
Contact
Michael Lin
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
wanda
Model Number
Q41
HS-CODE
8481-80
Package & Delivery Lead Time
Package
plywood case
Delivery Lead Time
25 days
Detailed Description

Specification Details

  • Design Std: ANSI B16.1,MSS SP-72
  • Size:DN15--DN250
  • Two-piece body construction
  • Micro-finishing of disc and steam
  • Pressure Rating: 125PSI W.S.P
  • BODY: GG25, GGG40;
  • Ball: AISI304,
  • Seat: Seat: PTFE, RPTFE
  • Face to Face: ANSI B16.10
  • Flange Ends:ANSI B16.5
  • Pressure Testing:API 598
  • Top Mounting Flange: ISO 5211
  • Working temperature:-20 to +120°C



Valve Description The ANSI ball valve is a full bore quarter turn valve for an on/off application. It can be manual or automatic (electric or pneumatic). The variety of seats and body materials allows it to respond to multiple applications in the industry.
