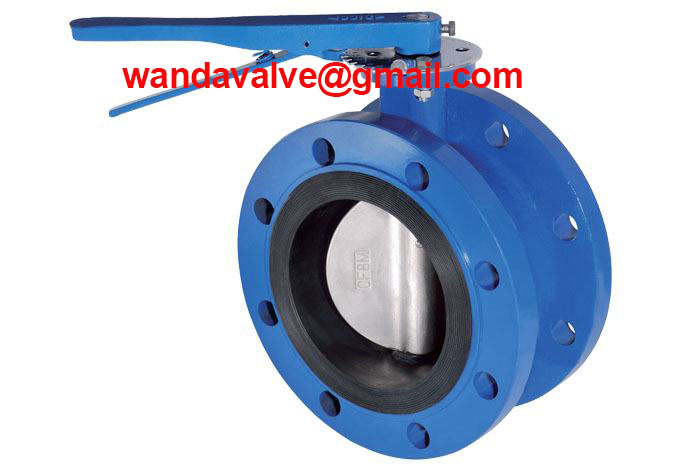

Cast Iron Flanged Butterfly Valve

본문 바로가기


Home > Product > Cast Iron Flanged Butterfly Valve
Product
Cast Iron Flanged Butterfly Valve
Posting date : Dec 01, 2017
Membership
Free Member Scince Dec 01, 2017
FOB Price
USD14
Min. Order Quantity
10
Supply Abillity
20000
Port
tianjin
Payment Terms
tt
Package
plywood case
Keyword :
Category
Contact
Michael Lin
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
wanda
Model Number
D371
HS-CODE
8481-80
Package & Delivery Lead Time
Package
plywood case
Delivery Lead Time
25 days
Detailed Description
Specification Details
Design Std:EN 1074, EN593Size:DN50--DN600Pressure Rating: PN10,PN16Flange Drilling: ANSI/ EN 1092-2/ AS 4087/ AS 2129Seat: NBR,EPDM, VITON,PTFE,NEOPRENEFace to Face: DIN EN 558 Series 13.Pressure Testing:DIN EN593/DIN EN12266-1Top Mounting Flange: ISO 5211Working temperature: EPDM from -40°C to +135°C ; NBR from -23°C to +82°C; VITON from -26°C to +230°C; PTFE from -25°C to +150°CValve Description Cast iron double flanged butterfly valve with centric disc and one-piece shaft. Designed and manufactured in accordance with DIN EN 593. Bi-directional bubble tight seal and ISO Top Mounting Flange for easy actuation applications
