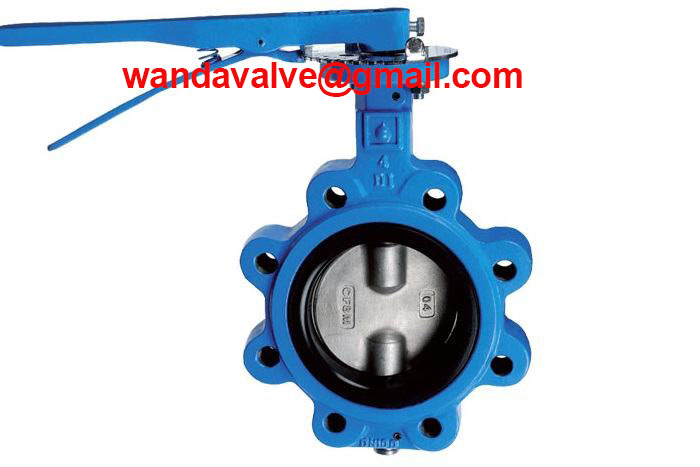

DIN Cast Iron Lug Butterfly Valve

본문 바로가기


Home > Product > DIN Cast Iron Lug Butterfly Valve
Product
DIN Cast Iron Lug Butterfly Valve
Posting date : Dec 01, 2017
Membership
Free Member Scince Dec 01, 2017
FOB Price
USD
Min. Order Quantity
10
Supply Abillity
20000/month
Port
Tianjin
Payment Terms
TT
Package
plywood case
Keyword :
Category
Contact
Michael Lin
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
wanda
Model Number
D371
HS-CODE
8481-80
Package & Delivery Lead Time
Package
plywood case
Delivery Lead Time
25 days
Specifications
Type of Certification
PED97/23/EC
Reference no.
0081
Name.
CE
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00
Detailed Description
Specification Details
Design Std:EN 1074, EN593Size:DN25--DN300Micro-finishing of disc and steamPressure Rating: PN10,PN16Seat: NBR,EPDM, VITON,PTFE,NEOPRENEFace to Face: EN 558-1 Series 20 -(former DIN 3202-K1)Pressure Testing:DIN EN593/DIN EN12266-1Top Mounting Flange: ISO 5211Working temperature: EPDM from -40°C to +135°C ; NBR from -23°C to +82°C; VITON from -26°C to +230°C; PTFE from -25°C to +150°CValve Description Ductile iron Lugged Butterfly Valve with concentric disc, seal on body design. Designed and manufactured in accordance with DIN EN 593 . Bi-directional bubble tight seal, vulcanised seat, suitable for vacuum applications. High strength one-piece shaft, suitable for high repetition actuation
