ACME Horizontal Vacuum Pyrolysis Furnace
Posting date : Nov 02, 2017
Membership
Free Member Scince Oct 10, 2017
FOB Price
negotiable
Min. Order Quantity
1
Supply Abillity
2/month
Port
Any port in China
Payment Terms
T/T
Package
Standard wooden box
Keyword :
Category
Contact
Aisha Liu
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
ACME
HS-CODE
8514-10
Package & Delivery Lead Time
Package
Standard wooden box
Detailed Description
Product Description_____________________________
Description

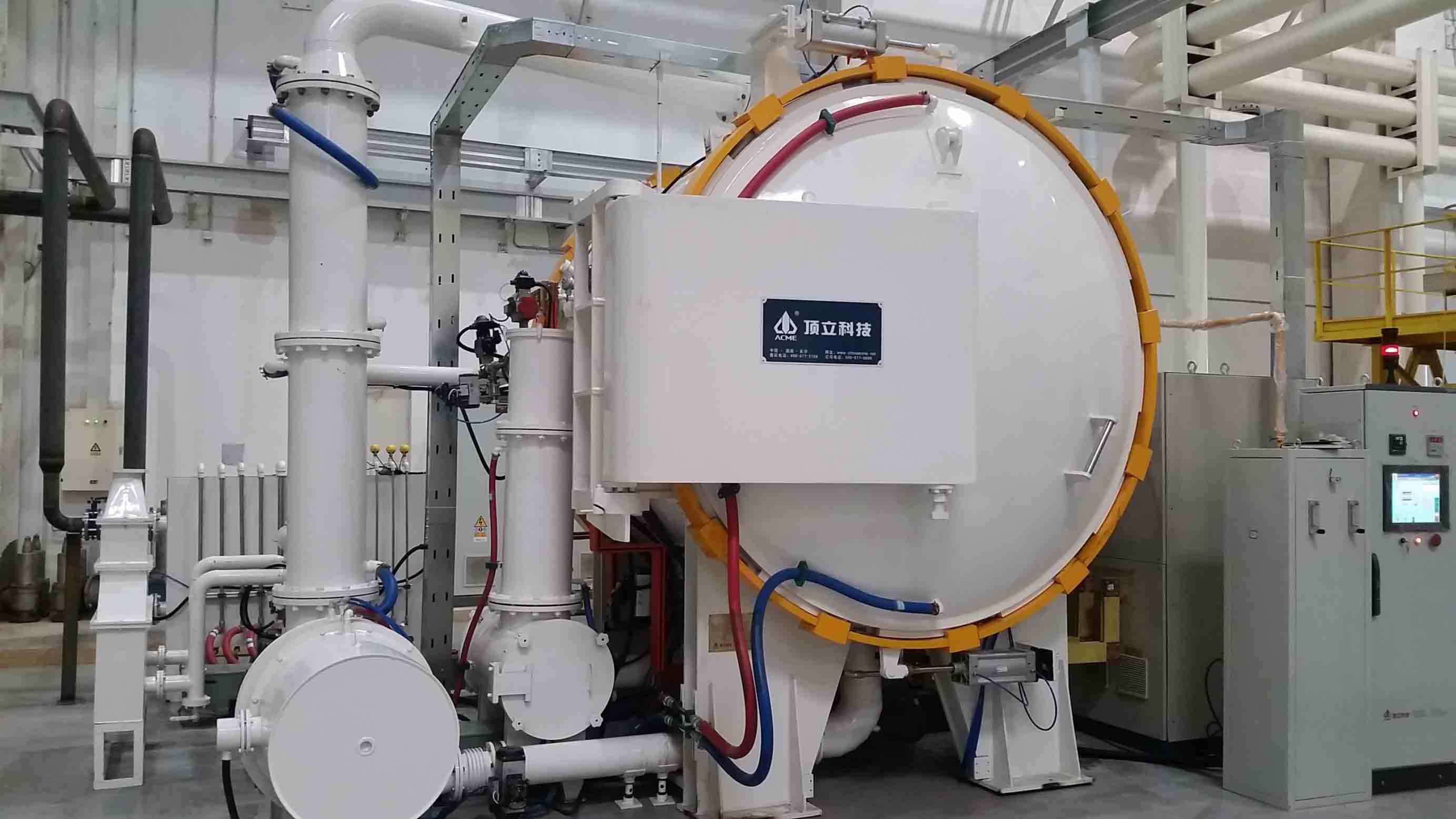

Horizontal vacuum pyrolysis furnace is used for vacuum pyrolysis sinter process of C/C, carbon or ceramic composite material.


Technical Features
1.The vacuum pyrolysis tube furnaces adopt electrical resistant heating with temperature compensation or multiple temperature zone control, which features great temperature uniformity.
2.Unique ACME super high temperature and high current feeding technology achieves the equipment can be long term stable used at 1800°C.
3.Installed with special sealing muffle to minimize the silicon vapor and by-pass materials contamination to the heating element and heat insulation materials.
4.The furnace uses special exhaust gas treatment device, which is friendly to environment and convenient for cleaning.


Optional Configuration of Horizontal Vacuum Pyrolysis Furnace
1. Furnace door: Hinge turning type/ trolley type, Manual tight/Auto lock-ring tight
2. Furnace vessel: All carbon steel/Inner layer stainless steel/Total stainless steel
3. Furnace hot zone: Soft carbon felt/Soft graphite felt/Hard composite felt /CFC
4. Heating element and muffle: Isostatic press graphite/Press high purity, high strength and high density graphite/ fine size graphite
5. Vacuum pump and gauge: Foreign brand/Chinese brand
6. HMI: Simulation screen/Touch screen/Industrial personal computer
7. PLC: OMRON/Siemens
8. Temperature controller: SHIMADEN/EUROTHERM
9. Thermocouple: C type (Tungsten sheath/Ceramic sheath)
10. Recorder: Paperless recorder/paper recorder, Foreign brand/Chinese brand
11. Electric components: CHINT/Schneider/Siemens
12. Load truck: Roller type/fork type


Specifications of Horizontal Vacuum Pyrolysis Furnace
Spec\Model HVP-040406 HVP-060609 HVP-080812 HVP -101015 HVP-121225 HVP-151530
Working Zone Size (W × H × L) (mm) Φ400 × 400 × 600 Φ600 × 600 × 900 Φ800 × 800 × 1200 Φ1000 × 1000 × 1500 Φ1200 × 1200 × 2500 Φ1500 × 1500 × 3000
Max. Temperature (°C) 1800 1800 1800 1800 1800 1800
Temperature Uniformity (°C) ±5 ±5 ±7.5 ±7.5 ±10 ±10
Ultimate Vacuum (Pa) 50 50 50 50 50 50
Pressure Increase Rate (Pa/h) 0.67 0.67 0.67 0.67 0.67 0.67
The above parameters can be adjusted to the process requirements, they are not as acceptance standard, the detail spec. will be stated in the technical proposal and agreements.



Company inFormation____________________________

Founding in 2006, ACME (Advanced Corporation for Materials & Equipments) is a high-tech enterprise specialized in manufacture of industry heating equipment for new material and energy.  with an area of 100,000 m2,our annual production is over 200 sets.



Customer Experience Center________________

ACME has a Customer Experience Center for customer to choose the suitable equipment and ensure the equipment performance meets the demand of production process requires. It helps ACME to acuumlate a wealth of experimental experience and greatly improving equipmentReliability and practicality.



Why ACME?___________________________________

1.We are the manufacturer not a trade company!

Warmly welcome to visit us in Changsha, China!



2.Our equipments are customized! Tell us your

requirments and we can meet your needs!



3.ACME had gained Quality,Environment and

Occupation Health certificates of ISO 9001, ISO 14001

and ISO 18000.
