ACME carbonizing equipment debinding and sintering
Posting date : Nov 02, 2017
Membership
Free Member Scince Oct 10, 2017
FOB Price
negotiable
Min. Order Quantity
1
Supply Abillity
2/month
Port
Any port in China
Payment Terms
T/T
Package
Standard wooden box
Keyword :
Category
Contact
Aisha Liu
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
ACME
HS-CODE
8514-30
Package & Delivery Lead Time
Package
Standard wooden box
Detailed Description
Product Description_____________________________
Description

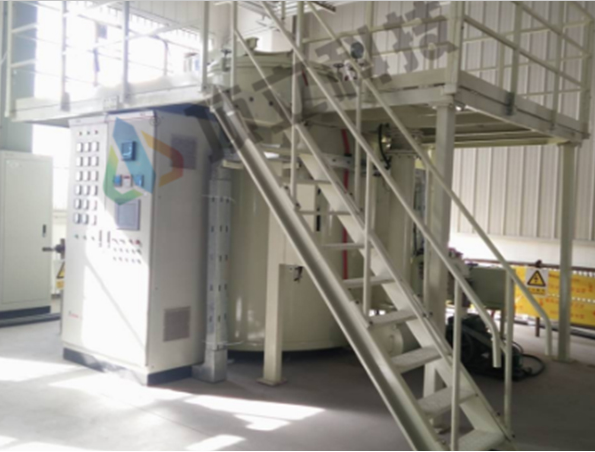

Vertical vacuum carbonization furnace uses graphite as healing element with carbon heating environment, which max. temperature can reach above 1600°C. It is used for high temperature carbonization and cracking treatment of C/C composite material, ceramic matrix composite material and carbon fiber insulation material. And the vertical carbonization tube furnace can also adopts all metal hot zone without carbon heating environment, which max. temperature is 1100℃. It is used for debinding and sinter of special materials in aerobic environment.


Technical Features
1. It works in vacuum under low temperature and room temperature, works in positive pressure under high temperature.
2. It can work in oxygen environment with groat contamination proof feature,which can also working in various gases and conditions.
3. For large size furnace, it will be designed to multiple temperature control zones to improve the temperature uniformity.
4. It is equipped with external rapid cooling system to shorten the production cycle.
5. Multiple stage exhaust gas treatment system is adopted to handle the tar, dust and gasses.
6. The vertical carbonization tube furnace uses metal heating element with 380V power supply. All metal high temperature muffle is available.


Optional Configuration of Vertical Vacuum Carbonization Furnace
1. Furnace door: Hydraulic lift/mechanical lift, swing open/parallel open (large size door), Manual tight/Auto lock-ring tight
2. Furnace vessel: All carbon steel/Total stainless steel
3. Furnace hot zone: Refractory brick + Ceramic fiber
4. Heating element and muffle: Ni-Cr, Fe-Cr-Al, Fe-Cr-Al-Nb, Fe-Cr-Al-Mo
5. Muffle: SUS304, SUS316L, SUS310S
6. Process gas system: Manual value/auto value
7. HMI: Simulation screen/Touch screen/Industrial personal computer
8. PLC: OMRON/Siemens
9. Temperature controller: SHIMADEN/EUROTHERM
10. Thermocouple: K type, N type, S type,
11. Electric components: CHINT/Schneider/Siemens


Parameters of Vertical Vacuum Carbonization Furnace
Spec\Model VVC-0608 VVC-1015 VVC-1620
Working Zone Size (D × H) (mm) Φ600 × 800 Φ1000 × 1500 Φ1600 × 2000
Max. Temperature (°C) 1000 1000 1000
Temperature Uniformity (°C) ±7.5 ±10 ±15
Ultimate Vacuum (Pa) 50 50 50
Pressure Rise Rate (Pa/h) 2 2 2


Company inFormation____________________________

Founding in 2006, ACME (Advanced Corporation for Materials & Equipments) is a high-tech enterprise specialized in manufacture of industry heating equipment for new material and energy.  with an area of 100,000 m2,our annual production is over 200 sets.



Customer Experience Center________________

ACME has a Customer Experience Center for customer to choose the suitable equipment and ensure the equipment performance meets the demand of production process requires. It helps ACME to acuumlate a wealth of experimental experience and greatly improving equipmentReliability and practicality.



Why ACME?___________________________________

1.We are the manufacturer not a trade company!

Warmly welcome to visit us in Changsha, China!



2.Our equipments are customized! Tell us your

requirments and we can meet your needs!



3.ACME had gained Quality,Environment and

Occupation Health certificates of ISO 9001, ISO 14001

and ISO 18000.
