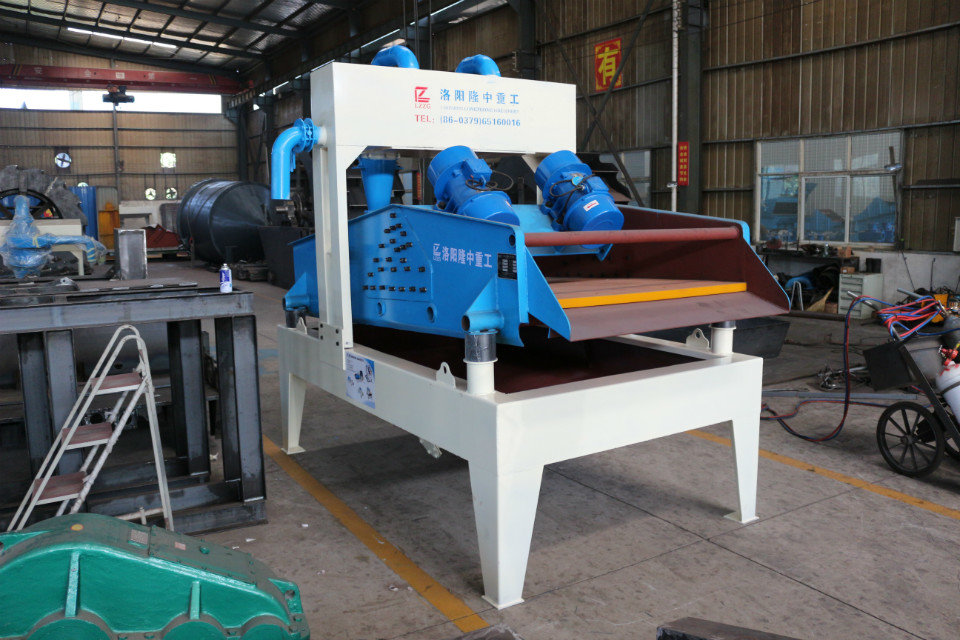

No.6 fine sand recycle system
Posting date : Oct 19, 2017
Membership
Free Member Scince Oct 19, 2017
FOB Price
US $2,000-20,000 / Set
Min. Order Quantity
1 Set
Supply Abillity
High Frequency Vibrating Screen
Port
Shanghai, China
Payment Terms
L/C, T/T
Package
Standard Container
Keyword :
Category
Contact
gaohuanmeng
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
LZ
Model Number
LZ10-25
HS-CODE
8474-10
Package & Delivery Lead Time
Package
Standard Container
Detailed Description

Introduction

In the past few years, we improve core technical, select new processing methods and absorb different sites working situation, and successfully make No.6 sand recycling system as our LZZG brand. It is also called as “dewatering type sand recycling system”.



Working principle

About No.6 sand recycling system, we still choose polyurethane screen as its main screening part, and add recycling part on TS dewatering screen.Sand after sand washer is fed onto polyurethane screen for dewatering, waste sand water through steel chute or rubber pipe in water tank and extracted by slurry pump into high pressure sediment separator, fine sand 0.16-3mm is sprayed onto polyurethane screen also for de-watering, the waste water is back to return box and flowing out.



Features

1. Dewatering type sand recycling system, sand grading is better.

2. Recycling 0.16-3mm fine sand.

3. Recycling rate reaches above 95%.

4. The water content of final sand is within 12%-15%.5. Compact structure and install easily.

Tech specifications

Model Slurry pump Cyclone(mm) Dewatering screen Capacity (m³/h) Weight (kg)
Power(kw) Material Size (mm) Power (kw)
LZ10-25 11 Cr26 250 1000*2000 2*1.1 30-80 2550
LZ12-50 11*2 Cr26 550 1250*2500 2*2.2 100-200 3750
LZ15-65 15*2 Cr26 650 1500*3000 2*3 150-275 5150
LZ12-75 18.5*2 Cr26 750 1500*3000 2*3 180-350 5650
LZ18-100 22*2 Cr26 1000 1800*4500 2*4 150-240 6500
LZ24-120 30*2 Cr26 1200 2400*4500 2*7.5 200-300 8000
