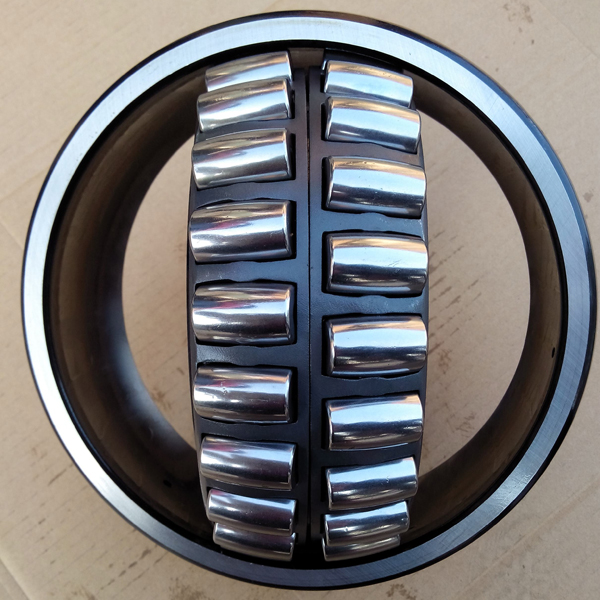

Spherical Roller Bearing 22228CC/C3W33
Inner Ring: 140.000mm
Outer Ring: 250.000mm
Width: 68.000mmChamfer: 3mm
Basic Dynamic Load Rating: 641KN
Basic Static Load Rating: 990KN
Limited Speed (rpm): 1838(grease)/2464(oil)Gross
Weight: 16.2kg
Steel Cage
Equipped with an outer ring with a spherical raceway surface and an inner ring which holds two rows of barrel-shaped rolling elements, spherical roller bearings can adjust center alignment to handle inclination of the axle or shaft.Spherical roller bearings are available with cylindrical or tapered bores, and can have different features such as bronze or steel retainers and with or without oil holes. Standard sizes range from 90mm inside diameter to 1820 mm outside diameter. Spherical roller bearing standard series consist of: 21300, 22200, 22300, 23000, 23100, 23200, 23900, 24000, 24100.
23218/W33: 90mm x 160mm x 52.4mm
22318/W33: 90mm x 190mm x 64mm
24020CA: 100mm x 150mm x 50mm
23120CA/W33: 100mm x 165mm x 52mm
24120CA: 100mm x 165mm x 65mm
22220K/W33: 100mm x 180mm x 46mm
23220CA/W33:100mm x 180mm x 60.3mm
22320CA/W33: 100mmx 215mm x 73mm
23022/W33: 110mm x 170mm x 45mm
23122/W33: 110mm x 180mm x 56mm
24122CA/W33: 110mm x 180mm x 69mm
22222: 110mm x 200mm x 53mm
23222CA: 110mm x 200mm x 69.8mm
22322K: 110mm x 240mm x 80mm
23024/W33: 120mm x 180mm x 46mm
24024CA/W33: 120mm x 180mm x 60mm
23124/W33: 120mm x 200mm x 62mm
24124CA/W33: 120mm x 200mm x 80mm
22224: 120mm x 215mm x 58mm
23224K/W33:120mm x 215mm x 76mm
22324/W33: 120mm x 260mm x 86mm
23026CA/W33: 130mm x 200mm x 52mm
24026/W33: 130mmx 200mm x 69mm
23126CA/W33: 130mm x 210mm x 64mm
24126CA/W33: 130mm x 210mm x 80mm
22226: 130mm x 230mm x 64mm
23226CA/W33: 130mm x 230mmx 80mm
22326: 130mm x 280mm x 93mm
23028CA/W33: 140mmx 210mmx 53mm
24028CA/W33: 140mm x 210mm x 69mm
23128CA/W33: 140mm x 225mm x 68mm
24128W33: 140mm x 225mm x 85mm
22228CA:140mm x 250mm x 68mm
23228K/W33: 140mm x 250mm x 88mm
22328K: 140mm x 300mm x 102mm
23030K/W33: 150mmx 225mm x 56mm
24030CA/W33: 150mm x 225mm x 75mm
23130/W33: 150mm x 250mm x 80mm
22230CA/W33: 150mm x 270mm x 73mm
22330/W33: 150mmx 320mm x 108mm
23032CA/W33: 160mmx 240mm x 60mm
24032CA/W33: 160mm x 240mmx 80mm
23132/W33: 160mm x 270mm x 86mm
24132CA/W33: 160mm x 270mm x 109mm
22232CA: 160mm x 290mm x 80mm
23232CA:160mm x 290mm x 104mm
22332/W33: 160mm x 340mm x 114mm
23034CA/W33: 170mm x 260mm x 67mm
24034CA/W33: 170mm x 260mm x 90mm
23134K: 170mm x 280mm x 88mm
24134CA/W33: 170mm x 280mm x 109mm
22234CAK/W33: 170mm x 310mm x 86mm
23234CA: 170mm x 310mm x 110mm
22334CA/W33: 170mm x 360mm x 120mm
23936CA/W33: 180mm x 250mm x 52mm
23036CA/W33: 180mm x 280mm x 74mm
24036CAK30: 180mm x 280mm x 100mm
23136CA/W33: 180mm x 300mm x 96mm
24136CA/W33: 180mm x 300mm x 118mm
22236: 180mm x 320mm x 86mm
23236K/W33: 180mm x 320mm x 112mm
22336K: 180mm x 380mm x 126mm
23938CA: 190mm x 260mm x 52mm
23038: 190mm x 290mm x 75mm
24038CA/W33: 190mm x 290mm x 100mm
23138CA: 190mm x 320mm x 104mm
24138CA: 190mm x 320mm x 128mm
22238/W33: 190mm x 340mm x 92mm
23238CA: 190mm x 340mm x 120mm
22338/W33: 190mm x 400mm x 132mm
23940CA: 200mm x 280mm x 60mm
23040CA/W33: 200mm x 310mm x 82mm
24040/W33: 200mm x 310mm x 109mm
23140CA/W33: 200mm x 340mm x 112mm
24140CA/W33: 200mm x 340mm x 140mm
22240: 200mm x 360mm x 98mm
23240K/W33: 200mm x 360mm x 128mm
22340: 200mm x 420mm x 138mm
23944CA: 220mm x 300mm x 60mm
23044CA/W33: 220mm x 340mm x 90mm
24044/W33: 220mm x 340mm x 118mm
23144: 220mm x 370mm x 120mm
24144/W33: 220mm x 370mm x 150mm
22244CAK/W33: 220mm x 400mm x 108mm
22344: 220mm x 460mm x 145mm
23948CA: 240mm x 320mm x 60mm
23048/W33: 240mm x 360mm x 92mm
24048/W33: 240mm x 360mm x 118mm
23148CA: 240mm x 400mm x 128mm
24148/W33: 240mm x 400mm x 160mm
22248: 240mm x 440mm x 120mm
23248CAK/W33: 240mm x 440mm x 160mm
22348/W33: 240mm x 400mm x 155mm
23952CA: 260mm x 360mm x 75mm
23052CAM/W33: 260mm x 400mm x 104mm
24052CAK30W33: 260mm x 400mm x 140mm
23152: 260mm x 440mm x 144mm
24152CA/W33: 260mm x 400mm x 180mm
22252CA: 260mm x 480mm x 130mm
23252CAK/W33: 260mm x 480mm x 174mm
22352: 260mm x 540mm x 165m
23956CA: 280mm x 380mm x 75mm
23056: 280mm x 420mm x 106mm
23156CAK/W33: 280mm x 460mm x 146mm
22256: 280mm x 500mm x 130mm
23256K: 280mm x 500mm x 176mm
22356: 280mm x 580mm x 175mm
23960CA: 300mmx 420mm x 90mm
23060/W33: 300mm x 460mm x 118mm
24060CA/W33:300mm x 460mm x 160mm
23160K/W33: 300mm x 500mm x 160mm
24160CA/W33: 300mm x 500mm x 200mm
22260CA: 300mm x 540mm x 140mm
23964CA: 320mm x 440mm x 90mm
23064CA: 320mm x 480mm x 121mm
24164/W33: 320mm x 540mm x 218mm
22264CA/W33: 320mm x 580mm x 150mm
23264CA/W33: 320mm x 580mm x 208mm
23968CA/W33: 340mm x 460mm x 90mm
23068: 340mm x 520mm x 133mm
24068CAK30: 340mm x 520mm x 180mm
23168CA/W33: 340mm x 580mm x 190mm
24168CAK30/W33: 340mm x 580mmx 243mm
23268CAK/W33: 340mm x 620mm x 224mm
23972: 360mm x 480mm x 90mm
23072CA: 360mm x 540mm x134mm
23172/W33: 360mm x 600mm x 192mm
24172CAK30: 360mm x 600mm x 243mm
22372: 360mm x 750mm x 224mm
23976: 380mm x 520mm x 106mm
23076: 380mm x 560mm x 135mm
23176CAK/W33: 380mm x 620mm x 194mm
22376CA:380mm x 780mm x 230mm
23980CA: 400mm x 540mm x 106mm
23080/W33: 400mm x 600mm x 148mm
23280CAK/W33: 400mm x 720mm x 256mm
23984CA: 420mm x 560mm x 106mm
23084K/W33: 420mm x 620mm x 150mm
24084CA/W33: 420mm x 620mm x 200mm
23184CA/W33: 420mm x 700mm x 224mm
24184CA/W33: 420mm x 700mm x 280mm
23284ACK/W33: 420mm x 760mm x 272mm
23988CA: 440mm x 600mm x 118mm
23088M/W33: 440mm x 650mm x 157mm
24088CA/W33: 440mm x 650mm x 212mm
23992: 460mm x 620mm x 118mm
23092CA/W33: 460mm x 680mm x 163mm
24092CAK: 460mm x 680mm x 218mm
23192/W33: 460mm x 760mm x 240mm
23292CAF3/W33: 460mm x 830mm x 296mm
23996: 480mm x 650mm x 128mm
24096CAK/W33: 480mm x 700mm x 218mm
239/500CA: 500mm x 670mm x 128mm
230/500/W33: 500mm x 720mm x 167mm
231/500CA/W33: 500mm x 830mm x 264mm
241/500CA/W33: 500mm x 830mm x 325mm
239/530CA: 530mm x 710mm x 136mm
240/530: 530mm x 780mm x 250mm
241/530CA: 530mm x 870mm x 335mm
232/530CAK: 530mm x 980mm x 355mm
239/560CA: 560mm x 750mm x 140mm
230/560CA/W33: 560mm x 820mm x 195mm
231/560CA: 560mm x 920mm x 280mm
241/560CA: 560mm x 920mm x 355mm
240/600CA/W33: 600mm x 870mm x 272mm
239/630/W33: 630mm x 850mm x 165mm
241/630/W33: 630mm x 1030mm x 400mm
239/670CA: 670mm x 900mm x 170mm
241/670CA: 670mm x 1090mm x 412mm
239/710: 710mm x 950mm x 180mm
239/750: 750mm x 1000mm x 185mm
240/800CA/W33: 800mm x 1150mm x 345mm
