Single Row Tapered Roller Bearing 30226

본문 바로가기


Home > Product > Single Row Tapered Roller Bearing 30226
Product
Single Row Tapered Roller Bearing 30226
Posting date : Oct 13, 2017
Membership
Free Member Scince Sep 23, 2017
FOB Price
$69.00
Min. Order Quantity
100
Supply Abillity
100000
Port
Dalian
Payment Terms
T/T
Package
Wooden Carton
Keyword :
Category
Contact
Simon Yin
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CJB
Model Number
30229
HS-CODE
8482-20
Package & Delivery Lead Time
Package
Wooden Carton
Delivery Lead Time
15 Days
Detailed Description

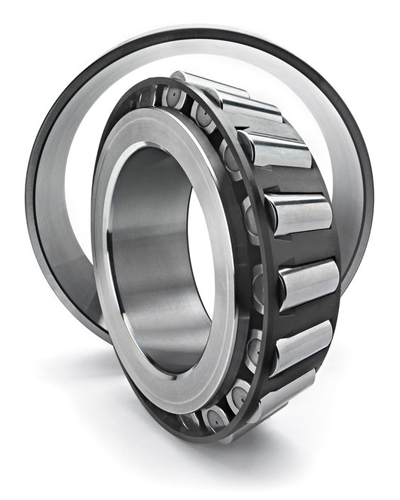

Single Row Tapered Roller Bearing 30226
Inner Ring: 130.000mm
Outer Ring: 230.000mm
Width: 43.750mm
Width of Inner Ring: 40.000mm
Width of Outer Ring: 34.000mm
Chamfer of Inner Ring: 4mm
Chamfer of Outer Ring: 3mm
Basic Dynamic Load Rating: 387KN
Basic Static Load Rating: 539KN
Limited Speed (rpm): 1620(grease)/2200(oil)
Gross Weight: 7.02kg

Single row tapered roller bearing can support a combined radial and axial load. If either a radial load or bi-directional axial load is to be carried, a pair of bearings must be used in a "face-to-face" or "back-to-back" mounting. The axial load carrying capacity of the bearings is largely determined by the contact angle. If the contact angle is larger, then the axial load carrying capacity is higher and vice versa. During equipment assembly, single row bearings can be set to the required clearance (endplay) or preload condition to optimize performance.
