Spherical Roller Bearing 24030C3

본문 바로가기


Home > Product > Spherical Roller Bearing 24030C3
Product
Spherical Roller Bearing 24030C3
Posting date : Oct 12, 2017
Membership
Free Member Scince Sep 23, 2017
FOB Price
$175.000/Piece
Min. Order Quantity
10
Supply Abillity
100000
Port
Dalian
Payment Terms
T/T
Package
Wooden Carton
Keyword :
Category
Contact
Simon Yin
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CJB
Model Number
24030C3
HS-CODE
8482-30
Package & Delivery Lead Time
Package
Wooden Carton
Delivery Lead Time
30 Days
Detailed Description

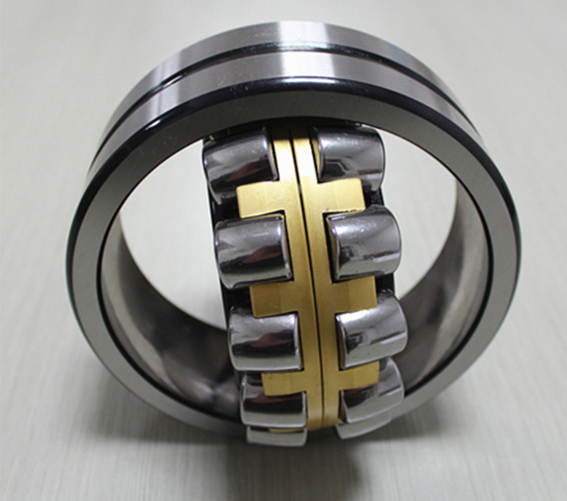

Spherical Roller Bearing 24030C3
Inner Ring: 150.000mm
Outer Ring: 225.000mm
Width: 75.000mmChamfer: 2.1mm
Basic Dynamic Load Rating: 592KN
Basic Static Load Rating: 1144KN
Limited Speed (rpm): 1404(grease)/1902(oil)
Gross Weight: 10.4kg
Brass Cage

Spherical roller bearing consists of an outer ring with spherical raceway and an inner ring with double-raceway, one or two cages, and one group of spherical rollers. Due to the center of spherical raceway of outer ring which is coinciding with the center of bearing, this makes it have a self-aligning capability. If there is a deflection of the shaft or housing or misalignment of their axes, it is automatically corrected the excessive force which is not applied to bearings. Spherical roller bearing has a high load carrying capacity for radial load and axial load in two directions. Spherical roller bearing is especially suitable for carrying heavy loads and impact loads, but this type of bearing permits a lower limiting speed. The permissible aligning angle of the spherical roller bearing working in normal conditions is 1°~2.5°. If bearings of this type have seals, then this function would be reduced. Spherical roller bearings are widely used in Steel Industry, Mining & Construction, Papermaking Machinery, Wind Turbines, Gearboxes, Electric Motors, Pumps & Compressors and Injection Molding Machines, etc.
Multiple cage designs are available.
Spherical roller bearings with hardened steel cages deliver greater fatigue strength, increased wear-resistance and tougher protection against shock and acceleration.
Spherical roller bearings with brass cages provide extra strength and durability in the most unrelenting conditions, including extreme shock and vibration, high acceleration forces and minimal lubrication.
