Home > Product > Spherical Thrust Roller Bearing 29244
Product
Spherical Thrust Roller Bearing 29244
Posting date : Oct 12, 2017
Membership
Free Member Scince Sep 23, 2017
FOB Price
$299.000/Piece
Min. Order Quantity
10
Supply Abillity
100000
Port
Dalian
Payment Terms
T/T
Package
Wooden Carton
Keyword :
Category
Contact
Simon Yin
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CJB
Model Number
29244
HS-CODE
8482-30
Package & Delivery Lead Time
Package
Wooden Carton
Delivery Lead Time
30 Days
Detailed Description

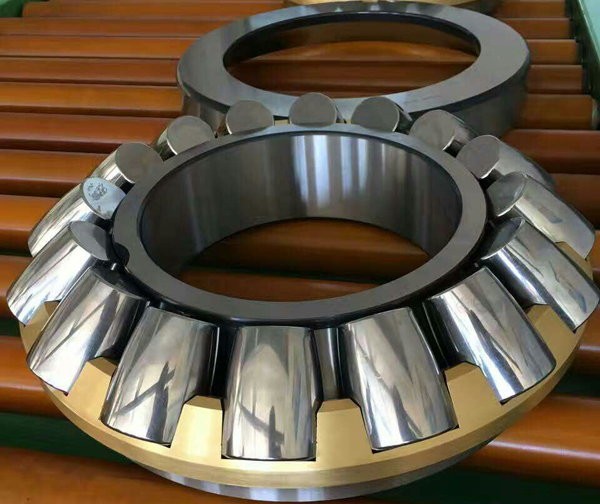

Spherical Thrust Roller Bearing 29244
Inner Ring: 220.000mm
Outer Ring: 300.000mm
Width: 48.000mm
Chamfer: 2mm
Basic Dynamic Load Rating: 573KN
Basic Static Load Rating: 2640KN
Limited Speed (rpm): 972(grease)/1456(oil)
Gross Weight: 9.84kg
Brass Cage

Spherical thrust roller bearings also called spherical roller thrust bearings have specially designed raceways and barrel-shaped rollers (convex rollers). The raceway of housing washer of this bearing type is spherical with the center of the radius located on the bearing axis. Spherical thrust roller bearings are separable design, making it possible to mount and dismount the housing washer separately from the shaft washer and roller and cage assembly, as well as maintenance inspections. The design provides self- alignment capability to the bearing, some shaft misalignment can be tolerated. The Contact angle is approximately 45° enabling the bearing to support high axial load and radial load up to 55% of axial load. They are suitable for relatively high speeds. The bearings have pressed steel cages or machined brass cages. Because of the large load capacity and self-aligning characteristics, Spherical thrust roller bearing is often used for injection molding machines, crane hooks and other large machines.
